Electric Driven Mixed Flow Pump High Efficiency Anti - Abrasive For Wet FGD
Features
1. Study the excellent hydraulic models at home and abroad, use advanced computer simulation analysis technology, the pump we designed has excellent performance and high reliability and stability.
2. Fully absorb the structural advantages of desulfurization pumps from various domestic and foreign manufacturers, YYTL-series pump has the features of simple structure, convenient maintenance and reliable operation.
3. The over-flow component has reasonable material selection, which meets the wear-resistance and corrosion resistance requirements of slurry for conveying different media conditions.
4. Rotor component axially movable
Technical Parameter
|
Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
|
350YYTL-24 |
1280 |
25.2 |
740 |
75 |
6.5 |
200 |
3200 |
|
1600 |
24 |
80 |
|||||
|
1920 |
22.3 |
81 |
|||||
|
350YYTL-10 |
640 |
11.2 |
490 |
72 |
3.4 |
55 |
3200 |
|
960 |
10.2 |
78 |
|||||
|
1060 |
9.1 |
79 |
|||||
|
400YYTL-24 |
1760 |
25.5 |
740 |
80 |
6.8 |
280 |
3500 |
|
2200 |
24 |
82 |
|||||
|
2640 |
22 |
83 |
|||||
|
400YYTL-10 |
1160 |
11.3 |
490 |
78 |
3.2 |
75 |
3500 |
|
1450 |
10.5 |
80 |
|||||
|
1740 |
9.4 |
81 |
|||||
|
500YYTL-24 |
2800 |
25.8 |
590 |
82 |
7.1 |
450 |
4500 |
|
3500 |
25 |
85 |
|||||
|
4200 |
21.6 |
86 |
|||||
|
500YYTL-16 |
2320 |
18.2 |
490 |
82 |
3.8 |
75 |
4500 |
|
2900 |
16.5 |
85 |
|||||
|
3480 |
14.8 |
86 |
|||||
|
600YYTL-24 |
4500 |
25.5 |
590 |
83 |
8.0 |
710 |
6000 |
|
5500 |
24 |
87 |
|||||
|
6500 |
22 |
88 |
|||||
|
600YYTL-16 |
3737 |
17.6 |
490 |
83 |
5.5 |
400 |
6000 |
|
4568 |
16.6 |
87 |
|||||
|
5400 |
15 |
88 |
|||||
|
700YYTL-24 |
6400 |
25.5 |
490 |
84 |
8.0 |
1000 |
8000 |
|
8000 |
24 |
88.5 |
|||||
|
9600 |
21.5 |
89.5 |
|||||
|
700YYTL-18 |
5550 |
19.2 |
425 |
84 |
6.1 |
630 |
8000 |
|
6940 |
18 |
88.5 |
|||||
|
8327 |
16.2 |
89.5 |
|||||
|
800YYTL-24 |
8250 |
27 |
490 |
87.5 |
9.6 |
1250 |
8800 |
|
10500 |
24 |
89.5 |
|||||
|
12000 |
21.3 |
87.5 |
|||||
|
800YYTL-18 |
7156 |
20.3 |
425 |
87.5 |
7.2 |
800 |
8800 |
|
9100 |
18.1 |
89.5 |
|||||
|
10400 |
16 |
87.5 |
|||||
|
900YYTL-24 |
12000 |
26 |
370 |
86 |
8.3 |
1800 |
11400 |
|
15000 |
24 |
90 |
|||||
|
18000 |
21.5 |
90.2 |
|||||
|
900YYTL-19 |
10700 |
20.7 |
330 |
86 |
6.6 |
1250 |
11400 |
|
13380 |
19.1 |
90 |
|||||
|
16050 |
17.1 |
90.2 |

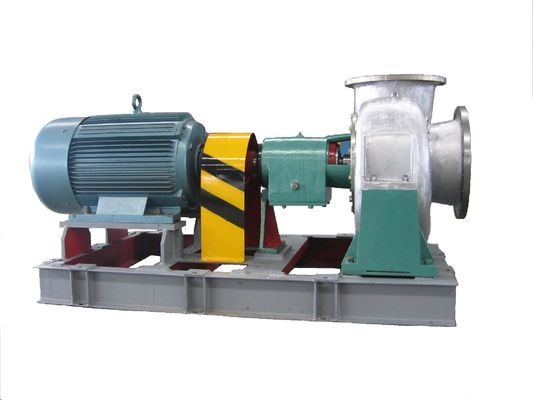

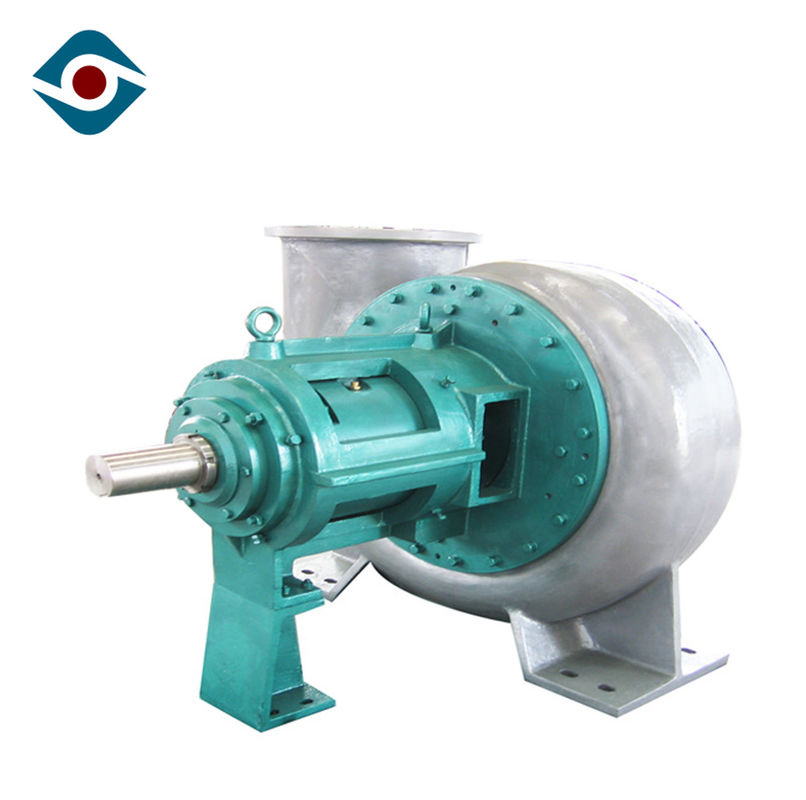

Product Picture
Structure
|
1 |
Round nut |
2 |
Rear bearing cover |
3 |
Adjustment screw |
4 |
Rear bearing |
5 |
Ventilation plug |
|
6 |
Front bearing |
7 |
Front bearing cover |
8 |
Water retaining plate |
9 |
bolt |
10 |
O ring |
|
11 |
Pump cover |
12 |
Mechanical seal |
13 |
Pump body |
14 |
impeller |
15 |
Impeller nut |
|
16 |
bolt |
17 |
O ring |
18 |
Lock screw |
19 |
Front cover |
20 |
O ring |
|
21 |
O ring |
22 |
key |
23 |
O ring |
24 |
Bearing body |
25 |
Cooling water gland |
|
26 |
Oil pointer |
27 |
shaft |
28 |
Cooling water pipe |
29 |
Nearing box |
30 |
Support blade |
|
31 |
O ring |
32 |
Framework oil seal |
33 |
spacer sleeve |
34 |
key |
|
