| Theory: | Centrifugal Pump | Max Flow: | 364m 3/ H |
|---|---|---|---|
| Max Head: | 58m | Fuel: | Electric |
| Color: | Customized | Oem: | Welcome |
| Speeed: | 1450-2900rpm | Efficiency: | 45% |
| Usage: | Slurry | Type: | Vertical Slurry Pump |
| Highlight: | vertical sump pump,industrial slurry pumps |
||

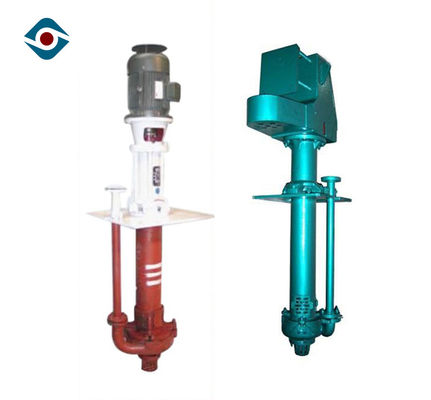

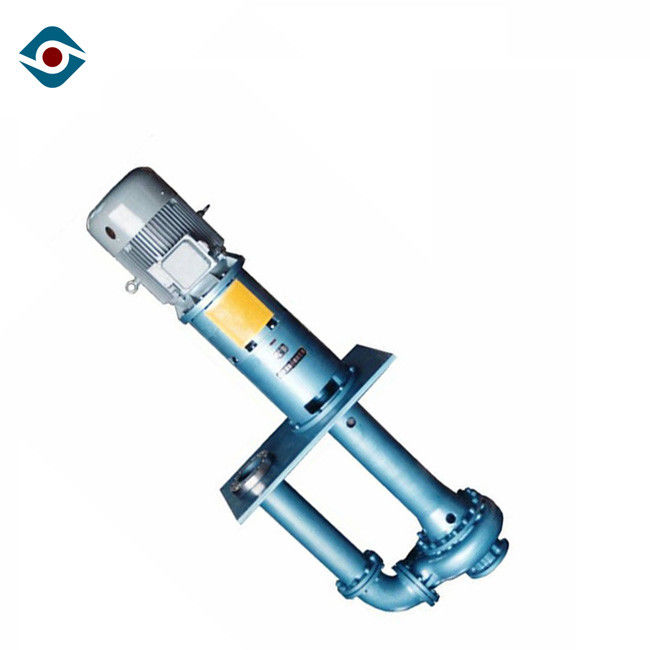

High Pressure Centrifugal Slurry Pump , Submerged Vertical Sewage Pump
Main Usage
ZAL-series centrifugal vertical slurry pumps submersible slurry pump is designed for transferring water, corrosive liquids, oil, sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, alkali, organic solvent .etc
Product Details
| Advantage | Picture | |
| Motor | Ensure the efficient, safe and stable operation of the motor | |
| Rotor |
-Precision forging -surface is treated by moisture and rust removal -Smooth operation and high concentricity |
|
| Mechanical Seal |
-Good sealing performance, durable wear resistance, corrosion resistance alloy -Suitable for corrosive, high temperature and other complex conditions |
|
Technical Parameter
|
Model
|
Clear Water Performance |
Supporting motor
|
|||||
|
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
effectiveness η |
|||
| r/min | (m³/h) | m | kw | % | |||
|
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
| 332 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
|
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
|
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
|
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
| 185 | 42.2 | 39.4 | 58.9 | ||||
| 239 | 34.1 | 45 .1 | 54.2 | ||||
|
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
| 124 | 18.9 | 11.8 | 58.9 | ||||
| 160 | 15.3 | 13.5 | 54.2 | ||||
|
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
| 141 | 41.6 | 31.0 | 56.5 | ||||
| 157 | 36.5 | 33.2 | 52.3 | ||||
|
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
| 94 | 12.4 | 7.1 | 56.5 | ||||
| 122 | 8.4 | 8.7 | 52.3 | ||||
|
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
| 97 | 45.8 | 26.4 | 45.8 | ||||
| 120 | 43.4 | 28.8 | 45.6 | ||||
|
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
| 65 | 20.5 | 7.9 | 45.8 | ||||
| 80 | 19.4 | 8.6 | 45.6 | ||||
|
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
|
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
|
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
| 47 | 51 | 19.1 | 34.1 | ||||
| 65 | 37.9 | 22.1 | 30.3 | ||||
|
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
| 31 | 22.2 | 5.5 | 34.1 | ||||
| 43 | 16.5 | 6.4 | 30.3 | ||||
|
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
| 63 | 37.8 | 18.7 | 39.4 | ||||
| 85 | 29.3 | 20.7 | 33.5 | ||||
|
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
| 42 | 16.9 | 5.6 | 39.4 | ||||
| 57 | 13.1 | 6.2 | 33.5 | ||||
|
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
| 24.7 | 9.2 | 1.6 | 38.6 | ||||
| 38.0 | 6.0 | 2.0 | 31.2 | ||||
|
910 |
10.8 | 4.3 | 0.4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
| 15.6 | 3.7 | 0.4 | 38.6 | ||||
| 24.0 | 2.4 | 0.5 | 31.2 | ||||
|
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
| 42.3 | 34.3 | 13.7 | 33.8 | ||||
| 47.6 | 30.5 | 14.1 | 28.1 | ||||
|
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
| 28.3 | 15.3 | 4.1 | 33.8 | ||||
| 31.8 | 13.6 | 4.2 | 28.1 | ||||
|
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
|
910 |
6.6 | 9.2 | 0.6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
| 12 | 8.1 | 0.7 | 36.6 | ||||
| 14.9 | 7.2 | 0.7 | 37.6 | ||||
|
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
|
910 |
6.0 | 6.8 | 0.4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
| 12.8 | 6.1 | 0.5 | 42.4 | ||||
| 16.4 | 5.6 | 0.6 | 44.6 | ||||
Installation Dimension
