| Flow Range: | 2000 M3/h | Max Head: | 160 M |
|---|---|---|---|
| Impeller: | Closed | Type: | Blade Pump |
| Temperature Range: | 20° C To 200° C | RPM: | 500 To 3600 |
| Highlight: | industrial process pumps,chemical transfer pumps |
||

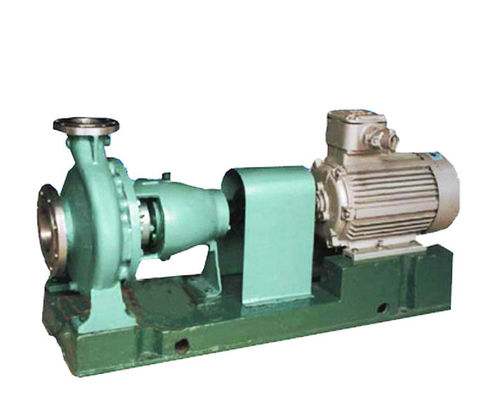

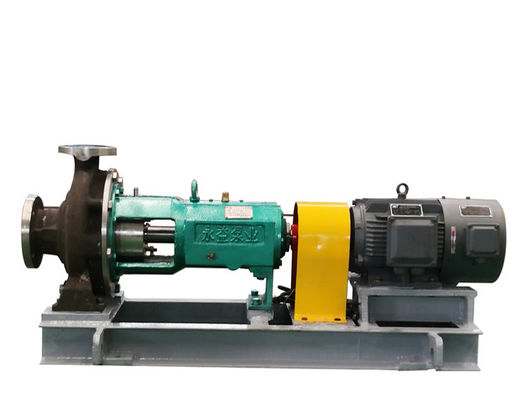

Horizontal Centrifugal Chemical Resistant Process Pump PTFE Lined for Transfer Acid Liquid
Pump Design
This series chemical process pump is horizontal, radial split, volute casing pumps. It is designed accoring to the standard GB/T5656. The impeller is inblock cast closed impeller, can wellsuited the working condition. Back pull out design enables to remove the rotor without disturbing the pipelines. If a spacer coupling is used, the motor does not have to be removed from the base plate. The shafts, sleeves, bearings, and bearing beds are identical in and interchangeable for a large number of pump sizes.
Installation Dimension
Product Summary
1) CZ chemical process pump adopts integral casting closed impeller, which has strong adaptability to working conditions, high efficiency and optimal cavitation performance. The impeller has back blade or balance hole, which can reduce axial thrust and seal chamber pressure, prolong the service life of bearing.
2) The rigid design of the pump shaft adopts cylindrical roller and a set of angular contact bearings, which can bear larger radial load and axial load, and strengthen the overall rigidity of the pump shaft. At the same time, the impeller does the check and correction of static balance. The pump runs with low vibration, low noise, which is very beneficial to the service life of shaft seals and bearing
Model and Parameter
| Model | Rated Speed n=2900r/min | Rated Speedn=1450r/min | |||||||||||||
| Impeller |
Capacity Q (m3/h) |
Head H(m) |
Relative Density ρ=1.00 | Relative Density ρ=1.84 | Impeller |
Capacity (m3/h) |
Head H(m) |
Relative Density ρ=1.00 |
Relative Density ρ=1.84 |
||||||
| Motor Power and Model | Motor Power and Model | ||||||||||||||
| Kw | Kw | Kw | Kw | ||||||||||||
| YCZ80/250 | D | 150 | 55 | 37 | 200L2-2 | 75 | 280S-2 | E | 70 | 11 | 5.5 | 132S-4 | 7.5 | 132M-4 | |
| X | 140 | 50 | 30 | 200L1-2 | |||||||||||
| E | 130 | 47 | 55 | 250M-2 | |||||||||||
| YCZ80/315 | A | 200 | 130 | 110 | 315S-2 | 185 | 315L-2 | A | 100 | 32 | 15 | 160L-4 | 30 | 200L-4 | |
| B | 190 | 125 | B | 95 | 30 | ||||||||||
| M | 180 | 120 | 90 | 280M-2 | 160 | 315L1-2 | C | 85 | 24 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| N | 170 | 110 | 75 | 280S-2 | D | 70 | 18 | 7.5 | 132M-4 | 15 | 160L-4 | ||||
| C | 160 | 100 | 132 | 315M-2 | |||||||||||
| X | 150 | 90 | 110 | 315S-2 | |||||||||||
| D | 140 | 80 | 55 | 250M-2 | 90 | 280M-2 | |||||||||
| YCZ80/400 | A | 105 | 52 | 30 | 200L-4 | 55 | 250M-4 | ||||||||
| B | 100 | 50 | 55 | 250M-4 | |||||||||||
| C | 90 | 44 | 45 | 225M-4 | |||||||||||
| D | 80 | 38 | 18.5 | 180M-4 | 37 | 225S-4 | |||||||||
| E | 75 | 30 | 15 | 160L-4 | 30 | 200L-4 | |||||||||
| YCZ100/200 | A | 230 | 45 | 45 | 225M-2 | 75 | 280S-2 | A | 115 | 11 | 7.5 | 132M-4 | 11 | 160M-4 | |
| B | 210 | 40 | 37 | 200L2-2 | 55 | 250M-2 | B | 100 | 10 | 5.5 | 132S-4 | ||||
| C | 180 | 32 | 22 | 180M-2 | 45 | 225M-2 | C | 90 | 8 | 4 | 112M-4 | 7.5 | 132M-4 | ||
| D | 150 | 25 | 37 | 200L2-2 | D | 80 | 6 | 3 | 100L2-4 | 5.5 | 132S-4 | ||||
| YCZ100/250 | A | 280 | 75 | 90 | 280M-2 | 160 | 315L1-2 | A | 130 | 20 | 15 | 160L-4 | 22 | 180L-4 | |
| B | 260 | 70 | 75 | 280S-2 | 132 | 315M-2 | B | 125 | 16 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| M | 240 | 65 | 75 | 280S-2 | 110 | 315S-2 | C | 120 | 14 | 15 | 160L-4 | ||||
| C | 220 | 60 | 55 | 250M-2 | 110 | 315S-2 | D | 100 | 10 | 7.5 | 132M-4 | 11 | 160M-4 | ||
| N | 200 | 52 | 45 | 225M-2 | 90 | 280M-2 | |||||||||
| D | 175 | 45 | 37 | 200L2-2 | 75 | 280S-2 | |||||||||
| YCZ100/315 | A | 270 | 135 | 160 | 315L1-2 | A | 130 | 32 | 22 | 180L-4 | 37 | 225S-4 | |||
| B | 260 | 128 | 132 | 315M-2 | B | 120 | 30 | 18.5 | 180M-4 | 30 | 200L-4 | ||||
| M | 250 | 120 | C | 100 | 26 | 15 | 160L-4 | ||||||||
| N | 230 | 112 | 110 | 315S-2 | 185 | 315L-2 | D | 90 | 21 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| C | 220 | 105 | |||||||||||||
| X | 210 | 95 | 90 | 280M-2 | 160 | 315L1-2 | |||||||||
| D | 190 | 85 | 75 | 280S-2 | 132 | 315M-2 | |||||||||
Performance Curve
Our Service
*All of the enquiry will be replied within 8 working hours
*Professional pump producer, with design team.
*All of the goods are packed with standard export wooden case(non-fumigation)
*Fast after-service
Contact Person: Cecile
Tel: 0086-19180408652
Fax: 86-28-6853-2101
