| Max Flow: | 13000GPM | Max Head: | 130 M |
|---|---|---|---|
| Impeller: | Closed/ Half Open | OEM: | Welcome |
| Mounting Height: | Suction Centrifugal | Product Name: | Anti-Abrasive Horizontal Slurry Pump |
| Material: | High Chromium Iron | ||
| Highlight: | horizontal centrifugal slurry pump,centrifugal mud pump |
||
Mining Industry Using Horizontal Electric Slurry Pump Anti - Abrasive with Mechnical Seal
Pump Type
There are several types of slurry pumps, the most common being: centrifugal pumps and positive displacement pumps.
A centrifugal slurry pump capable of providing a high capacity with a limited head is mainly used for pumping slurry through a pipeline for solids of less than 70% volume concentration.
The centrifugal slurry pump can be vertical, horizontal or submersible.
Product Description
ZJ-series is single stage single-suction cantilever centrifugal slurry pump. ZJ-series pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced; High-alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage componentsto improve service life.
The types of transmission include direct connection, belt, hydraulic fluid power and frequency conversion. According todifferent connections like seriesconnection andparallel connection, transmission type can be changed.
Technical Parameter
|
Flow (m3/h) |
4-3000 |
|
Head (m) |
10-130 |
|
Rotate speed (r/min) |
490-2900 |
|
Shaft power (kw) |
60-315 |
|
Efficiency (%) |
12-85 |
|
Power (kw) |
0.55-800 |
|
Voltage (v) |
380-6000 |
Structure
Feature
1) High concentration, volume concentration reach to 60%, weight concentration reach to 70%;
2) Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 120m, and can be used in series to satisfy much higher head requirements;
3) High flow rate capacity: can be reached 3000m3/h;
4) Good passing ability:gravel pump max passing particles size is 380mm;
5) Diameter size:outlet size from 1" to 22"
6) Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
7) High corrosion, abrasion resistance widely material optional: metal flow parts including:A05 (Cr27Mo), A33(Cr30MoNi), A49(Cr30MoNiCu) and rubber material etc.

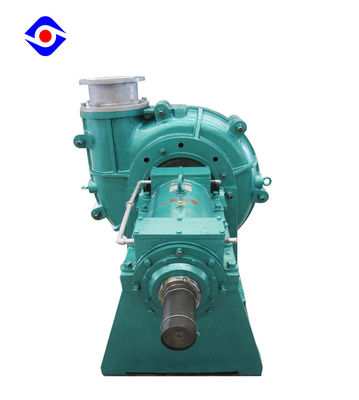

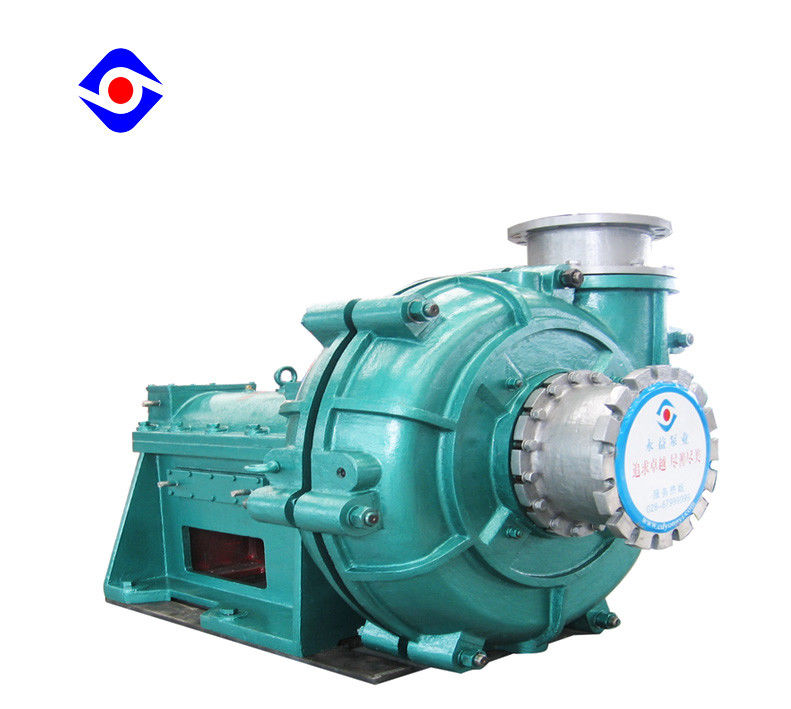

Product Picture
Details
Impeller
Close Impeller: It's suitable used for clean liquids, liquids contain thin solid particles, thin liquors.
Open Impeller: It's suitable used for clean liquids, liquids contain solid particles, abrasive liquids, slurries and papaer stock up to 8% consistency
Mechanical Seal: low maintenance cost, no leakage, low fraction lose, long service life
After Sale Service
1. One year warranty(Attention: Machine's warranty range don't include damageable Spare Parts;
For other parts,providing new free parts for clients in warranty period)
2. Technical support online all 24 hours
3. Free train using machine
