Product Details:
Payment & Shipping Terms:
|
| Performance Data: | 5-500m3/h | Differential Head: | 70m |
|---|---|---|---|
| Frequency: | 50/60Hz | Voltage: | 220V/380V/440V |
| Usage: | High Abrasive Liquid With Least Amount Of Water | Structure: | Cantilever Vertical Pump |
| High Light: | vertical submersible centrifugal pumps,vertical long shaft pump |
||

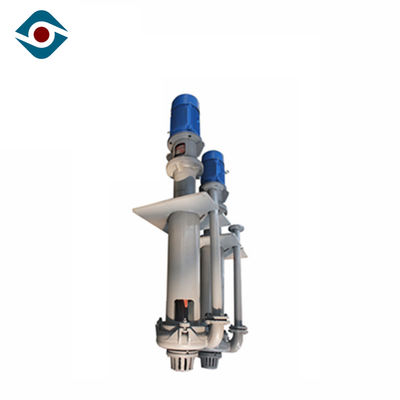

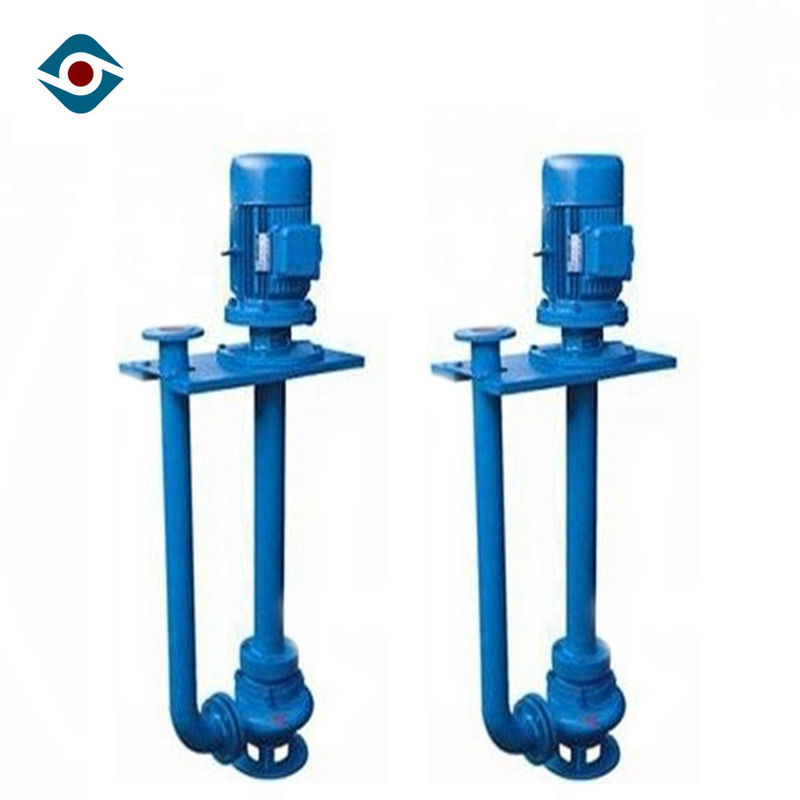

1450RPM Dry Installed Highly Configurable Vertical Cantilever Sump Pumps for Abrasive Slurries
Technical Data
Discharge Size: 32mm~200mm
Inlet Size: 50mm~250mm
Capacity: 5～500 m³/h
Head: 10 ~ 70 m
Maximal Efficiency: 70%
NPSH: 1.4m~4.5m
Allowable Max Motor Power: 315 kw
Construction
Performance Curve
Application
Bottom Ash/Fly Ash
Coal Washery
Mill Scale
Coal Dust
Coke Pits
Mines Dewatering
Boiler Blow Down
Hydro Power Station Slurry
Slit Removing
Ocean Sand Mining
Thick Mud
Lime Slurry
Cement Slurry
Coal Slurry
Ore Slurry
Dredging
De- Sliting
Our Advantages
|
PRODUCTION EXPERIENCE |
With decades of manufacturing experience. The overall performance and efficiency are constantly improving |
|
PROFESSIONALS |
Efficient and rich professional production team to create the most suitable pump solution for you. |
|
TECHNICAL INNOVATION |
Introducing various model technologies and processing technologies, dedicating to researching and developing energy-efficient products to optimize the products continuously |
|
ADVANCED EQUIPMENT |
To use the most advanced production equipment and test systems to provide users with high quality pumps. |
|
WAREHOUSE AND TRANSPORTATION |
Specialized logistics and transportation, to ensure the safe delivery of products |
|
AFTER-SAIES SERVICE |
Comprehensive knowledge of technical applications, for all types of installation and use of the environment, to provide the most suitable products and perfect service |
