Product Details:
Payment & Shipping Terms:
|
| Theory: | Mix Flow Pump | Max Flow: | 6500m3/h |
|---|---|---|---|
| Max Head: | 25m | Type: | Blade Pump |
| Flange: | Customized | Shaft Sealing: | Mechanical Seal And Packing |
| Voltage: | 380V/440V | Product Type: | Desulphurization Pump |
| High Light: | mixed flow centrifugal pump,mixed flow pump |
||

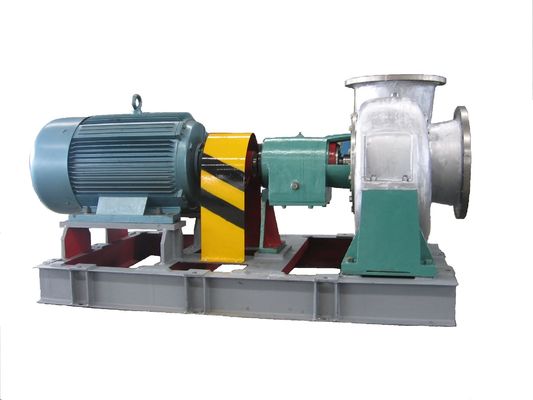

3 Phase China Hot Sale New Designed Horizontal Mixed Flow Pump Desulphurization Pump
Technical Parameter
| Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
| 350YYTL-24 | 1280 | 25.2 | 740 | 75 | 6.5 | 200 | 3200 |
| 1600 | 24 | 80 | |||||
| 1920 | 22.3 | 81 | |||||
| 350YYTL-10 | 640 | 11.2 | 490 | 72 | 3.4 | 55 | 3200 |
| 960 | 10.2 | 78 | |||||
| 1060 | 9.1 | 79 | |||||
| 400YYTL-24 | 1760 | 25.5 | 740 | 80 | 6.8 | 280 | 3500 |
| 2200 | 24 | 82 | |||||
| 2640 | 22 | 83 | |||||
| 400YYTL-10 | 1160 | 11.3 | 490 | 78 | 3.2 | 75 | 3500 |
| 1450 | 10.5 | 80 | |||||
| 1740 | 9.4 | 81 | |||||
| 500YYTL-24 | 2800 | 25.8 | 590 | 82 | 7.1 | 450 | 4500 |
| 3500 | 25 | 85 | |||||
| 4200 | 21.6 | 86 | |||||
| 500YYTL-16 | 2320 | 18.2 | 490 | 82 | 3.8 | 75 | 4500 |
| 2900 | 16.5 | 85 | |||||
| 3480 | 14.8 | 86 | |||||
| 600YYTL-24 | 4500 | 25.5 | 590 | 83 | 8.0 | 710 | 6000 |
| 5500 | 24 | 87 | |||||
| 6500 | 22 | 88 | |||||
| 600YYTL-16 | 3737 | 17.6 | 490 | 83 | 5.5 | 400 | 6000 |
| 4568 | 16.6 | 87 | |||||
| 5400 | 15 | 88 | |||||
| 700YYTL-24 | 6400 | 25.5 | 490 | 84 | 8.0 | 1000 | 8000 |
| 8000 | 24 | 88.5 | |||||
| 9600 | 21.5 | 89.5 | |||||
| 700YYTL-18 | 5550 | 19.2 | 425 | 84 | 6.1 | 630 | 8000 |
| 6940 | 18 | 88.5 | |||||
| 8327 | 16.2 | 89.5 | |||||
| 800YYTL-24 | 8250 | 27 | 490 | 87.5 | 9.6 | 1250 | 8800 |
| 10500 | 24 | 89.5 | |||||
| 12000 | 21.3 | 87.5 | |||||
| 800YYTL-18 | 7156 | 20.3 | 425 | 87.5 | 7.2 | 800 | 8800 |
| 9100 | 18.1 | 89.5 | |||||
| 10400 | 16 | 87.5 | |||||
| 900YYTL-24 | 12000 | 26 | 370 | 86 | 8.3 | 1800 | 11400 |
| 15000 | 24 | 90 | |||||
| 18000 | 21.5 | 90.2 | |||||
| 900YYTL-19 | 10700 | 20.7 | 330 | 86 | 6.6 | 1250 | 11400 |
| 13380 | 19.1 | 90 | |||||
| 16050 | 17.1 | 90.2 |
Product Description
According to Desulfurization Project Technical Specification of Thermal Power Plant, based on features of flue gas desulphurization system and advantages of like products, we manufactured the energy-saving product---- YYTL-series desulphurization pumps. YYTL-series pumps are large flow low head circulating pump. They are mainly used in wet FGD system, transferring limestone slurry and gypsum slurry. The pumps have advantages of high efficiency, safe and stable operation, convenient maintenance, long service life and so on.
Structure
| 1 | Round nut | 2 | Rear bearing cover | 3 | Adjustment screw | 4 | Rear bearing | 5 | Ventilation plug |
| 6 | Front bearing | 7 | Front bearing cover | 8 | Water retaining plate | 9 | bolt | 10 | O ring |
| 11 | Pump cover | 12 | Mechanical seal | 13 | Pump body | 14 | impeller | 15 | Impeller nut |
| 16 | bolt | 17 | O ring | 18 | Lock screw | 19 | Front cover | 20 | O ring |
| 21 | O ring | 22 | key | 23 | O ring | 24 | Bearing body | 25 | Cooling water gland |
| 26 | Oil pointer | 27 | shaft | 28 | Cooling water pipe | 29 | Nearing box | 30 | Support blade |
| 31 | O ring | 32 | Framework oil seal | 33 | spacer sleeve | 34 | key |
Medium Information

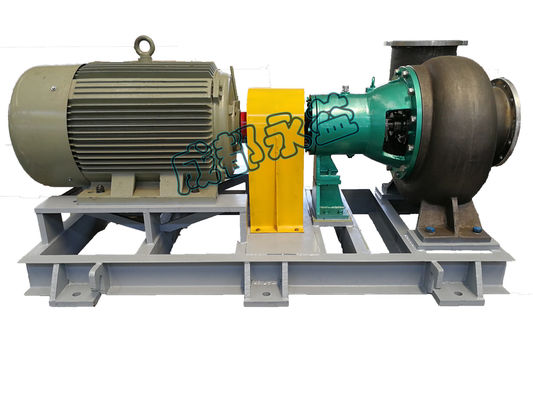

Product Picture
