Product Details:
Payment & Shipping Terms:
|
| Theory: | Mix Flow Pump | Max Flow: | 6500m3/h |
|---|---|---|---|
| Max Head: | 25m | Brand: | Chengdu Yongyi |
| PH: | 4.5-8 | Temperature: | -20~120℃ |
| Flange: | Customized | Shaft Sealing: | Mechanical Seal And Packing |
| Mounting Height: | Suction Centrifugal | Weight: | Pending |
| High Light: | mixed flow centrifugal pump,mixed flow pump |
||

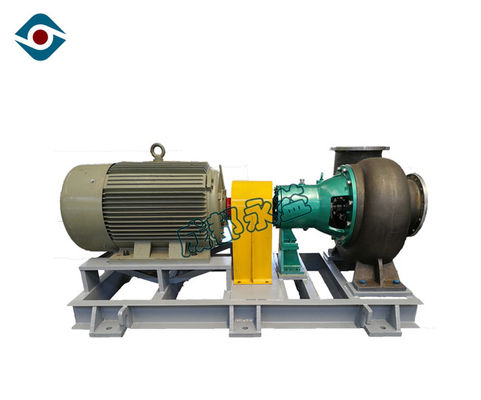

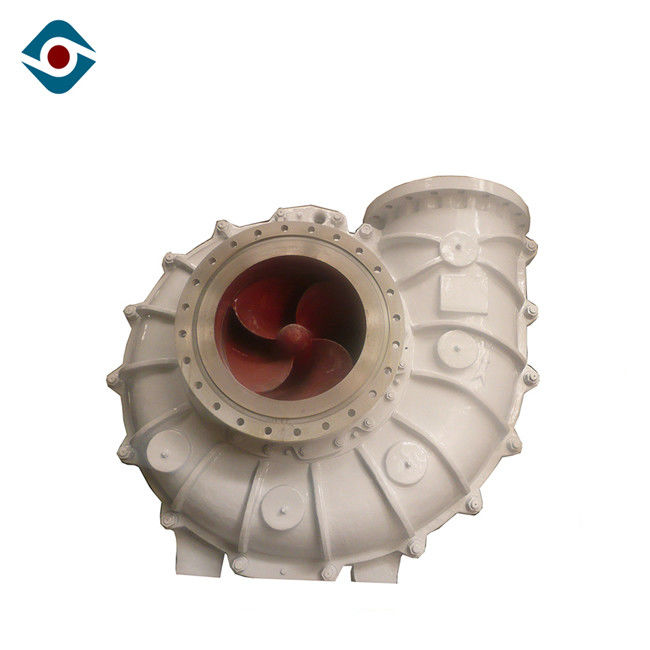

A Manufacture of Horizontal Mixed-flow Pump for Chemical Industry with Adjustment Screw
Technical Characteristics
Structure
| 1 | Round nut | 2 | Rear bearing cover | 3 | Adjustment screw | 4 | Rear bearing | 5 | Ventilation plug |
| 6 | Front bearing | 7 | Front bearing cover | 8 | Water retaining plate | 9 | bolt | 10 | O ring |
| 11 | Pump cover | 12 | Mechanical seal | 13 | Pump body | 14 | impeller | 15 | Impeller nut |
| 16 | bolt | 17 | O ring | 18 | Lock screw | 19 | Front cover | 20 | O ring |
| 21 | O ring | 22 | key | 23 | O ring | 24 | Bearing body | 25 | Cooling water gland |
| 26 | Oil pointer | 27 | shaft | 28 | Cooling water pipe | 29 | Nearing box | 30 | Support blade |
| 31 | O ring | 32 | Framework oil seal | 33 | spacer sleeve | 34 | key |
Application
| Acid pickling process | Painting process | Textile industry |
| Pharmacy and Health | Electroplating industry | Chlorine water and waste water treatment |
| Petroleum Industry | Chemical Industry | Adding acid process |
Performance Data
| Discharge Size: 200mm~800mm |
| Inlet Size: 250mm~900mm |
| Capacity: 200-6500 m³/h |
| Head: 8-25 m |
| Maximal Efficiency: 90.2% |
| Allowable Max Motor Power: 1800 kw |
| Allowed Max Particle Size: 20 mm |
| Seal Type: mechanical seal/dynamic seal/packing seal |
| RPM: 1450 r/min |
Production Process
Why Choose Us
1. More than 20 years manufacture of chemical process pump.
2. One -stop service more than 20 years.
3. We have more than 5 years of export experience.
4. We have strict quality control
5. Happy become your professional pump and seal consultant
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
