Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Rated Flow: | 3000 M³/h |
|---|---|---|---|
| Max Head: | 130 M | Min Head: | 10m |
| Power: | Max 160KW | Voltage: | 380V Or Higher |
| Seal Type: | Packing Seal, Expeller Seal, Mechanical Seal | ||
| High Light: | horizontal centrifugal slurry pump,industrial sludge pump |
||
Best Abrasion Resistant Horizontal Sand Slurry Pump for Mining and Mineral Processing
Technical Specification
| Specification | Unit | Data |
| Flow | m3/h | 4-3000 |
| Head | m | 10-130 |
| Rotate speed | r/min | 490-2.900 |
| Shaft power | kw | 60-315 |
| Efficiency | % | 12-85 |
| Power | kw | 0.55-800 |
| Voltage | V | 380-6000 |
Product Description
ZJ-series is single stage single-suction cantilever centrifugal slurry pump. ZJ-series pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced; High-alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage componentsto improve service life.
The types of transmission include direct connection, belt, hydraulic fluid power and frequency conversion. According todifferent connections like seriesconnection andparallel connection, transmission type can be changed.
Feature
1) Weight reduce to 70%;
2) Non-Clogging Design
3) High flow rate capacity
4) Good passing ability
5) High Abrasives Handling
6) Widely application
7) High corrosion, abrasion resistance
Structure

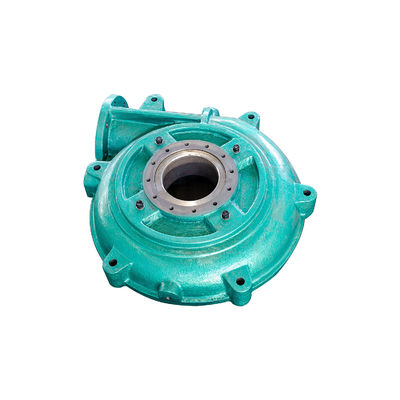

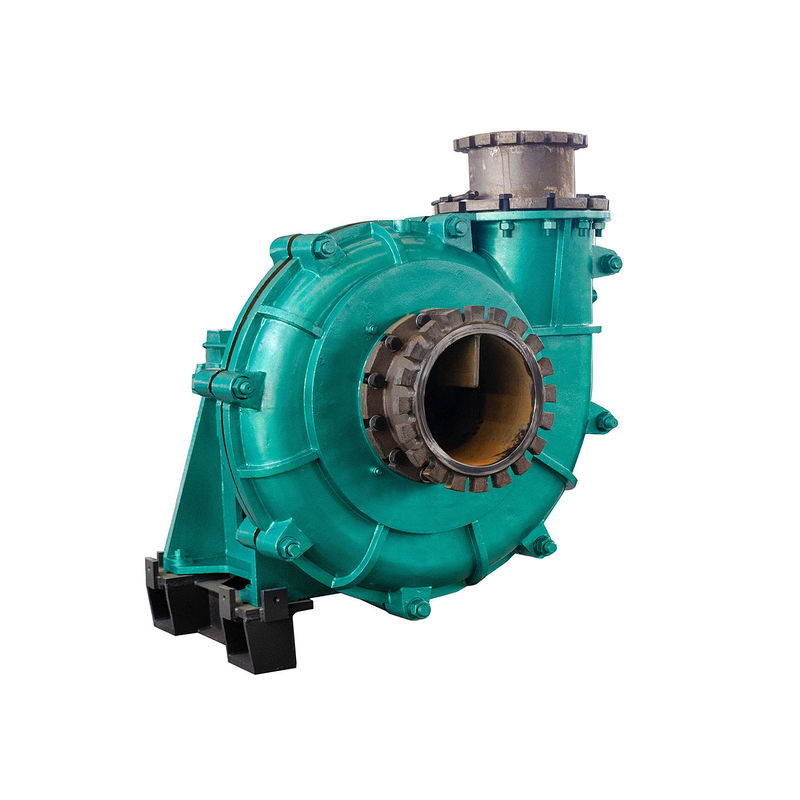

Product Picture
Application
| Dewatering | Mill discharge | Heavy duty abrasive slurries |
| Cyclone feed | Tailings and mine refuse | Medium duty abrasive slurries |
| Regrind | Mining and mineral processing | In-plant slurry transfer pumps |
| Flotation |
