Product Details:
Payment & Shipping Terms:
|
| Flow: | 6 ~ 364m ³ / H | Head: | 6～58m |
|---|---|---|---|
| Color: | Customized | Application: | Sewage |
| Voltage: | 380V/660V/1140V | Pressure: | Less Than 2.5MPa |
| HS Code: | 9413709990 | ||
| Highlight: | vertical sewage pump,industrial slurry pumps |
||

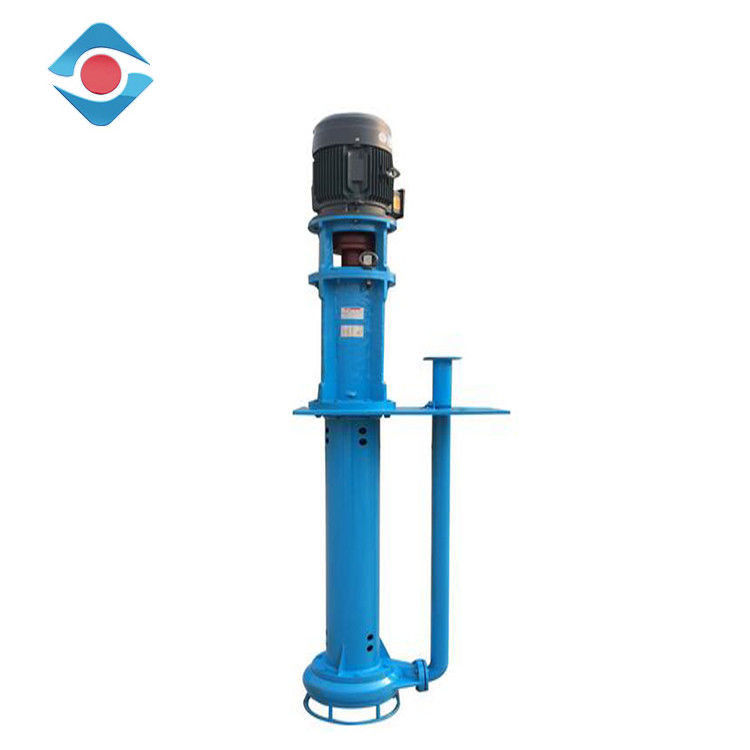

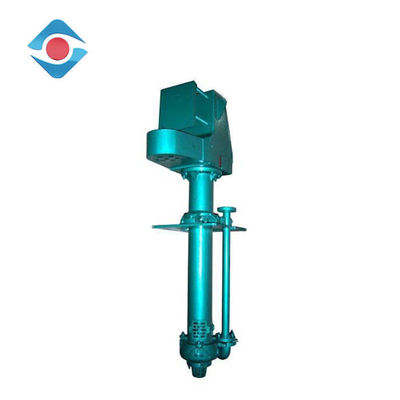

Abrasive Liquid Dewatering Vertical Slurry Pump Chemical Pump with Spare Parts
Parameter Data
|
Name |
ZJL-series Vertical Slurry Pump |
|
Head |
4 ~ 60 m |
|
Capacity |
6 ~ 364m³/h |
|
Discharge Size |
40mm~200mm |
|
Inlet Size |
50mm~250mm |
|
Maximal Efficiency |
70% |
|
NPSH |
1.4m~3.5m |
|
Allowable Max Motor Power |
315 kw |
|
Diameter |
200mm~470mm |
Product Summary
Description
ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.
Pump Features:
· The wear parts are made of high-chrome alloy of abrasion resistance .
· High efficiency and energy efficiency .
· Light weight and long service life time .
· Rational construction and reliable operation.
· Lower noise and vibration of the pump translates into improved hydraulic efficiency.
Widely Applications:
1. Many kinds of minings,such as gold mining,copper mining,coal mining,iron mining, tin mining, sand mining, and so on.
2.Many kinds of factories, such as alumina factory,coal factory, suger factory,chemical factory,water treatment factory.cement factory and so on.
3.Mineral , river sand dredging,sand booster application, Mineral processing, and dewatering work.
Product Display
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
