| Max Flow: | 3000m³/h | Max Head: | 130m |
|---|---|---|---|
| Structure: | Horizontal Single Stage | Application: | Sewage |
| Speed: | 1450rpm Or More | Diameter: | 200mm~470mm |
| Pressure: | High Pressure | ||
| Highlight: | industrial sludge pump,centrifugal mud pump |
||
Anti Corrosive Horizontal Slurry Pump, Chemical Centrifugal Slurry Pump for Waste Sludge
Technical Parameter
| Model: ZJ-series horizontal slurry pump |
| Discharge Size: 20mm~350mm |
| Inlet Size: 32mm~400mm |
| Capacity: 4 ~ 3000 m³/h |
| Head: 10 ~ 130 m |
| Maximal Efficiency: 70% |
| NPSH: 0m~3m |
| Allowable Max Motor Power: 315 kw |
| Allowed Max Particle Size: 20 mm |
| Seal Type: step-down dynamic seal |
| Pump Weight:up to 3000kg |
| RPM: 1450 r/min |
Shaft sleeve
A large percentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.
Gland shaft seal: A packed gland type shaft seal is also available and can be fitted with a low flow or a full flow flush seal water arrangement.
Shaft and bearing assembly: A large diameter shaft with a short overhang minimizes deflection and vibration.Heavy-duty roller bearings are housed in a removable bearing cartridge.
Pump Base
A minimum number if through bolts hold the pump casing to the frame .A means of impeller adjustment is provided in a convenient position below the bearing housing.
Impeller
The impeller may be either moulded elastomer or hard metal.Deep side sealing vanes relieve seal pressure and minimize recirculation.
Cast-in impeller threads are better suited for slurries.
Structure

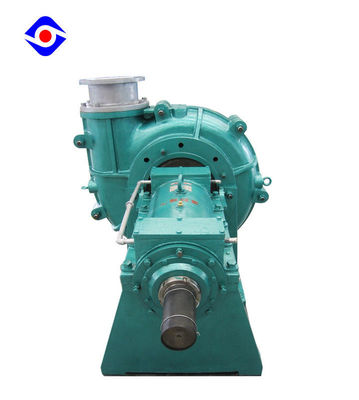

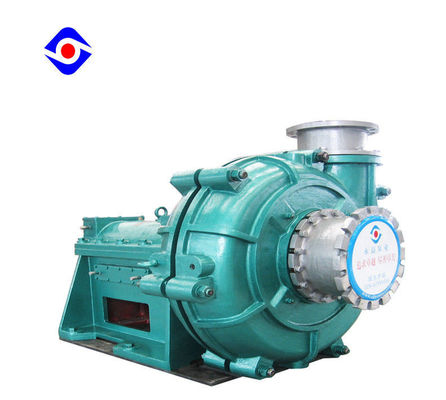

Product Picture
Application
|
• Mining • Mineral processing • Construction • Chemical and Fertilization • Power generation |
• Phosphate matrix fertilization • Pulp and paper • Waste sludge • Paper mill wastes and liquors • Precipitated CaCO3 |
• Plaster • Bottom/fly ash, lime grinding • Dirty water • Pulp and paper • Oil and gas |
|
• Waste water treatment • Ball mill discharge • Rod mill discharge • SAG mill discharge • Fine tailing |
• Flotation • Heavy media process • Minerals concentrate • Mineral sands • Coal-washing plant |
• Coarse sand • Coarse tailing • Dredging • FGD • Wet crushers applications |
|
• Wet scrubber systems • Process chemical • Iron and Steel • Ni acid slurry • Fracking slurries |
• Clay and sand slurries • Kaolin clay • Carbon slurry • Lime mud • Oil sands |
• Phosphoric acid |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
