Product Details:
Payment & Shipping Terms:
|
| Flow: | 6 ~ 364m ³ / H | Head: | 6～58m |
|---|---|---|---|
| Material: | Corrosive Resistance Material | Flange: | Customized |
| Voltage: | 380V | Structure: | Single-stage Pump |
| Feature:: | Corrosion Resistant | Impeller: | 5 Blades |
| Lubrication: | Oil Or Grease | ||
| High Light: | vertical sump pump,industrial slurry pumps |
||

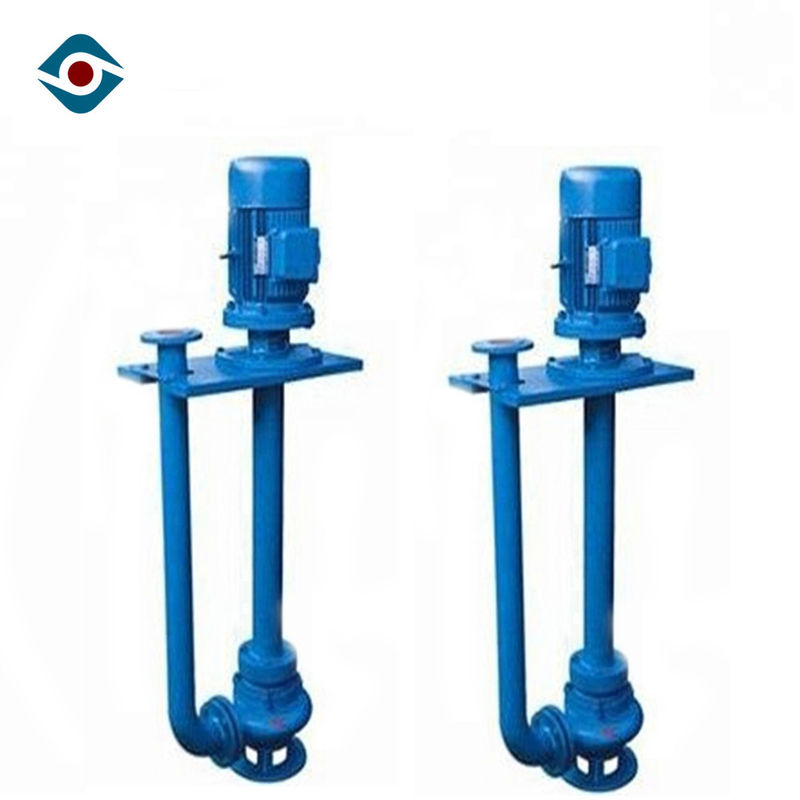

Heavy Duty Long Warranty Service Vertical Shaft Pump Sand Mining Pump with Support Plate
Structure drawing
| 1 | Volute casing | 2 | support | 3 | Motor base |
| 4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
| 7 | Rear liner plate | 8 | Bearing body | 9 |
Right support plate |
Product Summarize
a. ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump.
b. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.
c. Geometrical shape of its flow passage components is suitable for flow condition of medium.
d. High wear resistance, corrosion resistance and impact resistance material is used for flow passage components to improve service life.
Parameter
|
Model |
Clear Water Performance |
||||
|
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
Effectiveness η |
|
|
150ZJL-A35 |
590-980 |
119-364 |
4.4-17.9 |
3.9-15.3 |
63.1-68.1 |
|
100ZJL-A36 |
970-1480 |
76-239 |
15.3-51.1 |
9.6-32.1 |
54.1-58.9 |
|
80ZJL-A33 |
970-1480 |
42-157 |
8.1-48.6 |
8.7-33.2 |
52.3-56.5 |
|
65ZJL-A38 |
970-1470 |
50-120 |
19.4-52.3 |
6.9-28.8 |
42.7-45.8 |
|
65ZJL-A30 |
960-1470 |
25-98 |
11.1-34.7 |
2.3-13.4 |
43.7-51.9 |
|
50ZJL-A40 |
970-1470 |
21-65 |
16.5-58.3 |
5.5-22.1 |
29.9-34.1 |
|
50ZJL-A36 |
970-1470 |
36-85 |
13.1-42.7 |
4.7-20.7 |
31.2-39.4 |
|
50ZJL-A20 |
910-1440 |
10.8-38 |
4.3-10.7 |
0.4-2 |
31.2-38.6 |
|
40ZJL-A35 |
970-1470 |
15.8-47.6 |
13.6-42.9 |
3.8-14.1 |
27.3-33.8 |
|
40ZJL-A25 |
910-1440 |
6.6-22.9 |
7.2-21.5 |
0.6-2.8 |
26.1-37.6 |
|
40ZJL-A21 |
910-1140 |
6.0-9.5 |
6.8-17 |
0.4-2.6 |
27.9-44.6 |

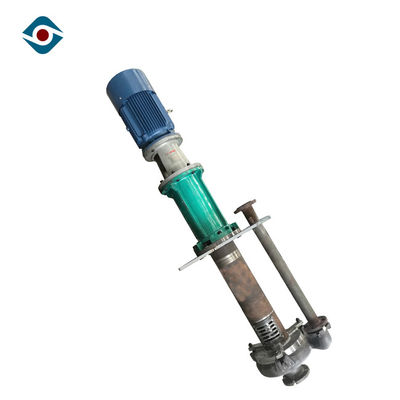

Product Picture and Details
Installation Drawings
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
