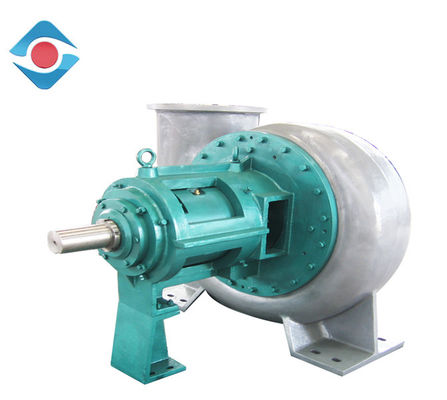

Large Capacity Long Service Life Horizontal Cantilever Horizontal Mixing Flow Pump
Product Description
According to Desulfurization Project Technical Specification of Thermal Power Plant, based on features of flue gas desulphurization system and advantages of like products, we manufactured the energy-saving product---- YYTL-series desulphurization pumps. YYTL-series pumps are large flow low head circulating pump. They are mainly used in wet FGD system, transferring limestone slurry and gypsum slurry. The pumps have advantages of high efficiency, safe and stable operation, convenient maintenance, long service life and so on.
Technical Parameter
Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
350YYTL-24 | 1280 | 25.2 | 740 | 75 | 6.5 | 200 | 3200 |
1600 | 24 | 80 | |||||
1920 | 22.3 | 81 | |||||
350YYTL-10 | 640 | 11.2 | 490 | 72 | 3.4 | 55 | 3200 |
960 | 10.2 | 78 | |||||
1060 | 9.1 | 79 | |||||
400YYTL-24 | 1760 | 25.5 | 740 | 80 | 6.8 | 280 | 3500 |
2200 | 24 | 82 | |||||
2640 | 22 | 83 | |||||
400YYTL-10 | 1160 | 11.3 | 490 | 78 | 3.2 | 75 | 3500 |
1450 | 10.5 | 80 | |||||
1740 | 9.4 | 81 | |||||
500YYTL-24 | 2800 | 25.8 | 590 | 82 | 7.1 | 450 | 4500 |
3500 | 25 | 85 | |||||
4200 | 21.6 | 86 | |||||
500YYTL-16 | 2320 | 18.2 | 490 | 82 | 3.8 | 75 | 4500 |
2900 | 16.5 | 85 | |||||
3480 | 14.8 | 86 | |||||
600YYTL-24 | 4500 | 25.5 | 590 | 83 | 8.0 | 710 | 6000 |
5500 | 24 | 87 | |||||
6500 | 22 | 88 | |||||
600YYTL-16 | 3737 | 17.6 | 490 | 83 | 5.5 | 400 | 6000 |
4568 | 16.6 | 87 | |||||
5400 | 15 | 88 | |||||
700YYTL-24 | 6400 | 25.5 | 490 | 84 | 8.0 | 1000 | 8000 |
8000 | 24 | 88.5 | |||||
9600 | 21.5 | 89.5 | |||||
700YYTL-18 | 5550 | 19.2 | 425 | 84 | 6.1 | 630 | 8000 |
6940 | 18 | 88.5 | |||||
8327 | 16.2 | 89.5 | |||||
800YYTL-24 | 8250 | 27 | 490 | 87.5 | 9.6 | 1250 | 8800 |
10500 | 24 | 89.5 | |||||
12000 | 21.3 | 87.5 | |||||
800YYTL-18 | 7156 | 20.3 | 425 | 87.5 | 7.2 | 800 | 8800 |
9100 | 18.1 | 89.5 | |||||
10400 | 16 | 87.5 | |||||
900YYTL-24 | 12000 | 26 | 370 | 86 | 8.3 | 1800 | 11400 |
15000 | 24 | 90 | |||||
18000 | 21.5 | 90.2 | |||||
900YYTL-19 | 10700 | 20.7 | 330 | 86 | 6.6 | 1250 | 11400 |
13380 | 19.1 | 90 | |||||
16050 | 17.1 | 90.2 |
Flow Part Material
We supply several kinds of material: CD4MCu, Cr30, 304, 304L, 316L, 904l(UB-6), 20#alloy, 2507, 2205 and so on.
Structure
1 | Round nut | 2 | Rear bearing cover | 3 | Adjustment screw | 4 | Rear bearing | 5 | Ventilation plug |
6 | Front bearing | 7 | Front bearing cover | 8 | Water retaining plate | 9 | bolt | 10 | O ring |
11 | Pump cover | 12 | Mechanical seal | 13 | Pump body | 14 | impeller | 15 | Impeller nut |
16 | bolt | 17 | O ring | 18 | Lock screw | 19 | Front cover | 20 | O ring |
21 | O ring | 22 | key | 23 | O ring | 24 | Bearing body | 25 | Cooling water gland |
26 | Oil pointer | 27 | shaft | 28 | Cooling water pipe | 29 | Nearing box | 30 | Support blade |
31 | O ring | 32 | Framework oil seal | 33 | spacer sleeve | 34 | key |
Transfer Method

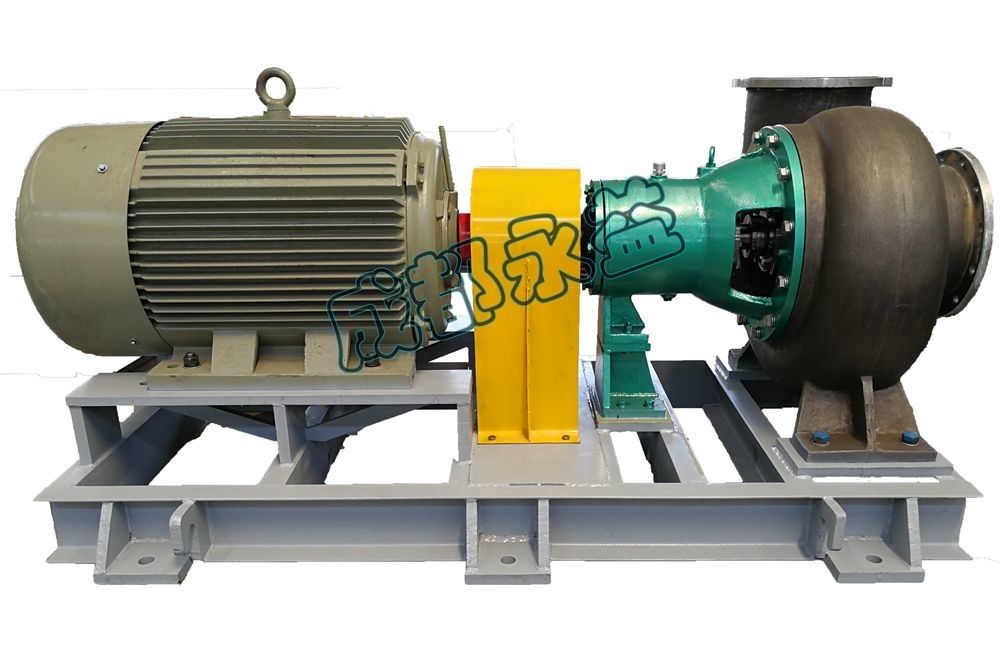

Direct connection: The pump and motor are directly connected to the motor through a long diaphragm flexible coupling.
Belt drive: Change the speed to adjust the pump performance through the V-belt drive.
Reducer: Reduce speed through reducer, suitable for high power pump
Rotate Direction
From the drive side, the pump rotates clockwise. The direction of rotation of the pump can also be changed according to the user's on-site pipeline installation.
