| Theory: | Centrifugal Pump | Flow: | 4 ~ 3000 M³/h |
|---|---|---|---|
| Head: | 10 ~ 130 M | Pressure: | High Pressure |
| Standard Or Nonstandard: | Standard | Warranty: | One Year |
| Material: | High Chrome Alloy And Rubber | Color: | Customer Specifications |
| Speed: | 1450rpm/2900rpm | ||
| High Light: | industrial sludge pump,centrifugal mud pump |
||

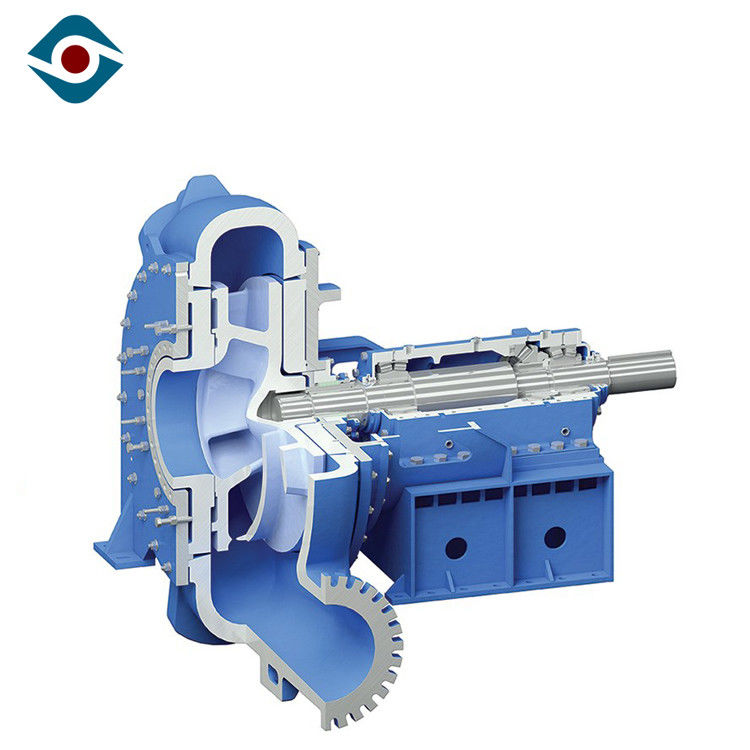

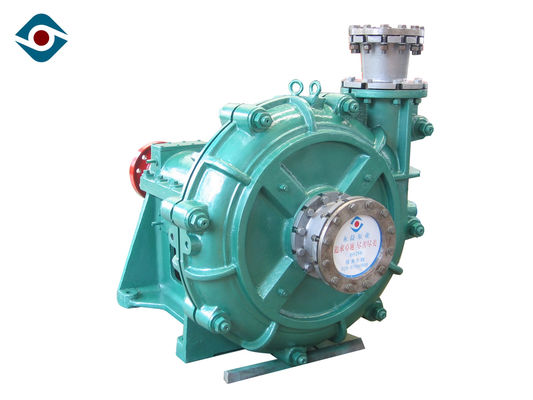

Centrifugal Non Clogging Horizontal Electric Slurry Pump , Recycled Waste Paper Pulp Pump
General Description
ZJ-series pump is single stage pump, cantilever single stage horizontal slurry pump, with support, forced lubrication of fine oil and lubrication. The pump uses a single pump housing structure to reduce the weight of the pump and is easy to move up and down.
Features
a) Cantilever, horizontal centrifugal slurry pump
b) Better wear-resistance and corrosive resistance
c) Replaceable wear-resistant metal ( high chrome alloy ) liners or rubber liners
d) Expeller seal, mechanical seal and packing seal
Specification Data
Discharge Size:20mm~350mm
NPSH:0m~3m
Inlet Size:32mm~400mm
Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h
Seal Type:step-down dynamic seal
Head:10 ~ 130 m
Pump Weight:up to 3000kg
Maximal Efficiency:70%
RPM:1450 r/min
Details
Seal type
(1) Expeller and stuffing box combined seal : Expeller seal make use of the pressure which is caused by the impeller and expeller working together to seal. Packing and lip seal do as the parking sealing. We can use this kind of seal in the single stage pump of which the positive pressure in the suction is not bigger with 10% than that in the discharge, or used in the first stage pump in series condition. It can work without the seal water, will not dilution the slurry and sealing performance good. But this can lead to more power consumption (usually need increase 5% of the shaft power).
(2) Stuffing box packing seal is a kind of popular shaft seal type and used in all kind of applications, seal material can be PTFE and graphite which can be used in corrosive and high temperature conditions. This seal type has advantage of simple structure and easy maintenance.
(3) Mechanical seal : this kind of seal adopt the international advanced sealing technology and has good sealing performance. Different structure type can suit different working condition, friction auxiliary material is made of high hardness ceramic and alloy material. The design and cooperation between mechanical seal and seal box conform to the flow status of medium which makes seal performance higher capability in anti-resistant and anti-shock, which can make customer satisfied in all kind of working condition.
Impeller
(1) Closed type Impeller: high abrasive resistance, and high efficiency.
(2) Open type Impeller: the ability of pass is high. When deliver the dirty material, the pump need clear often, this type makes the clear work easily.
Application
|
• Mining • Mineral processing • Construction • Chemical and Fertilization • Power generation |
• Phosphate matrix fertilization • Pulp and paper • Waste sludge • Paper mill wastes and liquors • Precipitated CaCO3 |
• Plaster • Bottom/fly ash, lime grinding • Dirty water • Pulp and paper • Oil and gas |
|
• Waste water treatment • Ball mill discharge • Rod mill discharge • SAG mill discharge • Fine tailing |
• Flotation • Heavy media process • Minerals concentrate • Mineral sands • Coal-washing plant |
• Coarse sand • Coarse tailing • Dredging • FGD • Wet crushers applications |
|
• Wet scrubber systems • Process chemical • Iron and Steel • Ni acid slurry • Fracking slurries |
• Clay and sand slurries • Kaolin clay • Carbon slurry • Lime mud • Oil sands |
• Phosphoric acid |
Installation Dimension
Single base
Sharing Base
Why Choose Us
A.more than 20 years experiences manufacturer
B.Good quality with competitive pirce
C.ISO2000, CE certificate, CCS certificate
D. Professional after-sales service
