Theory: | Centrifugal Pump | Flow: | 6 ~ 364m ³ / H |
---|---|---|---|
Head: | 6~58m | Material: | Corrosive Resistance Material |
Color: | Customized | Flange: | Customized |
Voltage: | 380V | Application: | Sewage, Chemical |
Warranty: | One Year | ||
Highlight: | vertical sump pump,industrial slurry pumps |

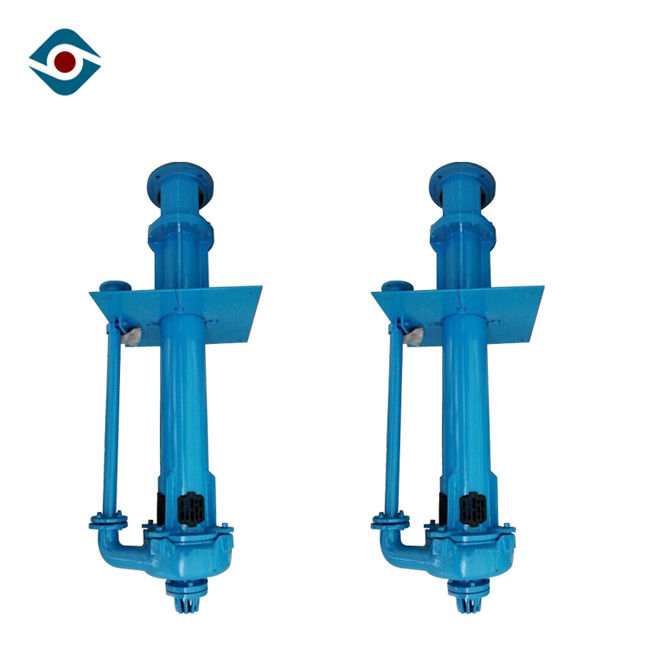

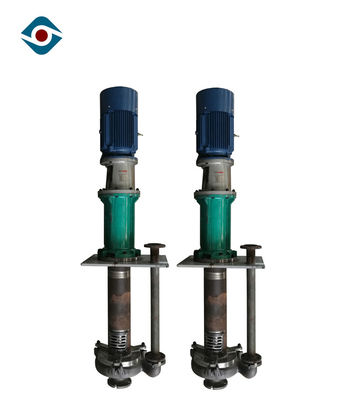

Vertical Centrifugal Submersible Rubber Liner Abrasive Slurry Pump for Mine Tailing
Structure
Features
A. ZJL-series submerged pumps are vertical centrifugal slurry pump, generally used to transport abrasive, coarse particle, high concentration slurry.
B. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they can also work normally.
C. Pump body is made of wear-resisting metal. Impeller is made of wear-resistant metal or rubber, polyurethane.Submerged pumps parts into the liquid with rubber lining,they are all applicable to transport corrosive slurry.
D. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Data Range
Diameter: 200mm~470mm
Head: 4 ~ 60 m
Capacity: 6 ~ 364m³/h
Discharge Size: 40mm~200mm
Inlet Size: 50mm~250mm
NPSH: 1.4m~3.5m
Technical Parameter
Model
|
Clear Water Performance |
Supporting motor
|
|||||
Rotating speed n |
Flow Q |
Head H |
Shaft power Pa |
effectiveness η |
|||
r/min | (m³/h) | m | kw | % | |||
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
332 | 13.2 | 17.5 | 68.1 | ||||
364 | 12.1 | 18.0 | 66.8 | ||||
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
247 | 7.3 | 7.2 | 68.1 | ||||
271 | 6.7 | 7.4 | 66.8 | ||||
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
200 | 4.8 | 3.8 | 68.1 | ||||
219 | 4.4 | 3.9 | 66.8 | ||||
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
185 | 42.2 | 39.4 | 58.9 | ||||
239 | 34.1 | 45 .1 | 54.2 | ||||
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
124 | 18.9 | 11.8 | 58.9 | ||||
160 | 15.3 | 13.5 | 54.2 | ||||
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
141 | 41.6 | 31.0 | 56.5 | ||||
157 | 36.5 | 33.2 | 52.3 | ||||
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
94 | 12.4 | 7.1 | 56.5 | ||||
122 | 8.4 | 8.7 | 52.3 | ||||
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
97 | 45.8 | 26.4 | 45.8 | ||||
120 | 43.4 | 28.8 | 45.6 | ||||
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
65 | 20.5 | 7.9 | 45.8 | ||||
80 | 19.4 | 8.6 | 45.6 | ||||
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
58 | 31.9 | 9.7 | 51.9 | ||||
98 | 26.0 | 13.4 | 51.7 | ||||
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
38 | 13.6 | 2.7 | 51.9 | ||||
64 | 11.1 | 3.7 | 51.7 | ||||
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
47 | 51 | 19.1 | 34.1 | ||||
65 | 37.9 | 22.1 | 30.3 | ||||
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
31 | 22.2 | 5.5 | 34.1 | ||||
43 | 16.5 | 6.4 | 30.3 | ||||
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
63 | 37.8 | 18.7 | 39.4 | ||||
85 | 29.3 | 20.7 | 33.5 | ||||
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
42 | 16.9 | 5.6 | 39.4 | ||||
57 | 13.1 | 6.2 | 33.5 | ||||
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
24.7 | 9.2 | 1.6 | 38.6 | ||||
38.0 | 6.0 | 2.0 | 31.2 | ||||
910 |
10.8 | 4.3 | 0.4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
15.6 | 3.7 | 0.4 | 38.6 | ||||
24.0 | 2.4 | 0.5 | 31.2 | ||||
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
42.3 | 34.3 | 13.7 | 33.8 | ||||
47.6 | 30.5 | 14.1 | 28.1 | ||||
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
28.3 | 15.3 | 4.1 | 33.8 | ||||
31.8 | 13.6 | 4.2 | 28.1 | ||||
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
18.4 | 19.0 | 2.6 | 36.6 | ||||
22.9 | 16.8 | 2.8 | 37.6 | ||||
910 |
6.6 | 9.2 | 0.6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
12 | 8.1 | 0.7 | 36.6 | ||||
14.9 | 7.2 | 0.7 | 37.6 | ||||
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
20.3 | 15.3 | 2.0 | 42.4 | ||||
25.9 | 14.1 | 2.2 | 44.6 | ||||
910 |
6.0 | 6.8 | 0.4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
12.8 | 6.1 | 0.5 | 42.4 | ||||
16.4 | 5.6 | 0.6 | 44.6 |
Material
Description | Standard Material | Material Options |
Shaft | 4140 Mild Steel | Available on Request |
Bearing Housing | Cast Iron | |
Column | Mild Steel | |
Upper Strainer | Rubber | Cast Iron |
Lower Strainer | Cast Iron | |
Back Liner | 27% Chrome White Iron | |
Pump Casing | 27% Chrome White Iron | Rubber Lined White Iron |
Impeller | 27% Chrome White Iron | Rubber |
Discharge Pipe | Mild Steel | Rubber Lined Mild Steel/ Composite |
Adaptor Plate | Mild Steel |
