Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump

China Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump supplier
Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump supplier Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump supplier

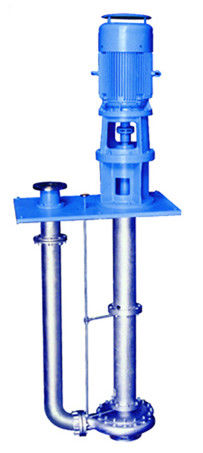

Large Image :  Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump

Product Details:

Place of Origin: Sichuan
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZAL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 Sets/Month
Contact Now
Detailed Product Description
Theory: Centrifugal Max Flow: 500m3/h
Head: 10-70m Min Flow: 2m3/h
Standard Or Nonstandard: Standard Warranty: 1 Year
Product Name: Vertical Submersible Industrial Chemical High-Temperature Sulfuric Acid Pump
High Light:

vertical submersible centrifugal pumps

,

submersible chemical pump

Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump



Product Description

ZAL-series pump is single stage, single-suction, vertical submerged centrifugal pump with Long shaft. This pump is designed according to standard IS05199. Pump shaft is supported by sliding bearings in pump cover and sliding bearing body; upper bearing adopts anti-abrasive bearing and lubricated by lithium base grease.

Performance parameters



Flow: 5~500 m³/h
Head: 10~70 m
Diameter:DN32~DN200
Pressure:1.6MPa
Temperature:-20℃-+120℃



Advantage



1. This pump is designed according to standard IS05199.

2. Connecting shaft structure, sub-liquid depth could up to 7m.

3. It’s specially suited to deliver high viscosity medium.



Technical Parameter



Model

rotate speed n=2950r/min

rotate speed n=1475r/min

Flow (m3/h)

Head (m)

ρ=1

ρ=1.35

Flow

(m3/h)

Head
(m)

ρ=1

ρ=1.35

Motor power
(KW)

Motor power
(KW)

ZAL25-200

7.5-11.5

28-49

2.2-5.5

3-7.5

4-5.8

6.5-12

0.75-1.1

0.75-1.1

ZAL25-250

10.8-12.5

46-78

5.5-11

7.5-15

5.4-6.3

11.5-19.5

1.1-1.5

1.5-2.2

ZAL25-315

15.3-20

74-130

15-30

22-37

7.6-10

18.5-32

2.2-3

2.2-4

ZAL40-160

20-28

16-33

2.2-5.5

3-7.5

9.5-14

4.5-8

0.75-1.1

0.75-1.1

ZAL40-200

18-29

20-53

4-11

5.5-15

9.5-14.5

7-13

1.1-1.5

1.1-2.2

ZAL40-250

21-32

47-78

7.5-18.5

11-22

10.5-16

11-19.5

1.1-3

1.5-4

ZAL40-315

29-42

61-115

15-37

22-45

15-21

15-29

3-5.5

4-7.5

ZAL50-160

31-50

17-34

3-11

4-15

16.5-25

4-8.4

0.75-1.5

1.1-2.2

ZAL50-200

43-62

28-82

7.5-18.5

11-22

22-31

7-13

1.1-3

1.5-3

ZAL50-250

50-70

45-82

15-30

18.5-37

26-35

11-20

2.2-4

3-5.5

ZAL50-315

57-87

57-115

22-55

30-75

30-44

14-28

3-11

4-11

ZAL50-400

60-82

102-194

45-110

75-160

30-41

25-48

7.5-15

11-22

ZAL80-160

66-94

17-32

5.5-15

7.5-18.5

34-47

4-8

1.1-2.2

1.1-3

ZAL80-200

70-103

30-54

11-30

15-37

36-51

7.5-12.5

1.5-4

2.2-5.5

ZAL80-250

87-127

45-82

22-45

30-75

46-64

11-20

3-7.5

4-11

ZAL40-315

90-141

74-127

37-90

45-132

45-70

18-33

5.5-15

7.5-18.5

ZAL80-400

116-171

95-187

75-160

90-220

53-85

25-46

11-22

15-30

ZAL100-160

110-162

12-29

7.5-22

11-30

55-81

3-7.2

1.1-3

1.5-4

ZAL100-200

135-193

26-50

18.5-45

30-55

70-95

6-12.5

3-5.5

3-7.5

ZAL100-250

170-230

44-79

37-75

45-90

90-115

10-20

5.5-11

7.5-15

ZAL100-315

170-250

71-126

75-132

75-200

86-125

17.5-31

11-18.5

11-30

ZAL100-400

224-300

105-194

110-250

160-355

115-150

26-48

15-37

22-45

ZAL150-250

310-190

40-74

55-110

75-160

155-195

10-18.5

11-15

11-22

ZAL150-315

310-442

68-125

90-250

132-355

150-220

17-32.5

15-30

18.5-45

ZAL150-400

400-520

113-502

200-400

280-500

200-260

28-51

30-55

37-75

ZAL150-500









208-300

45-77

45-110

75-132

ZAL150-630









220-360

60-115

75-200

110-250

ZAL200-250

470-610

32-72

75-160

90-220

240-305

8-17.5

11-22

15-30

ZAL200-315

480-710

65-122

132-355

185-450

350-350

15-30

18.5-45

22-55

ZAL200-500









330-495

48-84

75-185

90-220

ZAL200-560









350-540

62-105

110-250

132-355

ZAL200-630









372-580

75-132

132-315

185-450

ZAL250-315









424-545

13-27

30-55

37-75

ZAL250-400









500-660

24-49

53-132

75-160

ZAL250-500









630-800

42-82

110-280

160-400

ZAL250-560









665-860

57-106

160-400

250-560

ZAL300-400









780-1050

26-48

90-200

132-280

ZAL300-500









870-1240

42-78

160-450

250-560

ZAL300-560









950-1340

56-104

280-560

400-800

ZAL300-630









950-1450

75-132

355-1000

500-1400

ZAL300-500









1300-1870

38-74

220-630

315-1000

ZAL300-560









1500-2040

54-98

355-900

500-1250



Structure



Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump





Installation Dimension



Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump


FAQ

Chemical Vertical Submersible Pump , High Temperature Sulfuric Acid Pump
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
