Product Details:
Payment & Shipping Terms:
|
| Flow: | 1000m3/h | Head: | 120m |
|---|---|---|---|
| Working Temperature: | 20-130℃ | Pressure: | Low Pressure |
| Drive Rating[P]: | Up To 160 Kw | Speed: | 1500rpm |
| Keywords: | Hydrofluoric Acid Pump |
Closed Impeller Chemical Processing Pumps Packing Seal Pump for Hydrofluoric Acid
Features
1. Heavy duty volute casting with integral foot and multi-ribbed discharge flange provided superior resistance to pipe loads and improves reliability back pullout design allows for removal of the rotating element without disturbing the casing pipe work of motor to simplify routine maintenance.
2. Impeller: Duplex stainless cast, an open impeller for high-efficiency performance, low running cost and long life, impeller back vanes and shroud design provides axial balance which reduces maintenance and downtime cost by extending seal and bearing reliability.
3. Pump Casing: Top centerline discharge, self-venting casing, arranged for back pull-out. Fully confined gasket. Foot support under casing for maximum resistance to misalignment and distortion from pipe loads. ANSI B16.5, 150# flanges standard and also ANSI B16.5, 300# optional for working pressures to 2550 kPa with 3mm corrosion allowance. For maximum corrosion / erosion resistance casing is supplied without tapped openings but if specified, gauge and drain plug openings are provided.
Performance Data
| Capacity: | 8 ~ 800 m³/h |
| Head: | 10 ~ 90 m |
| Maximal Efficiency: | 70% |
| Diameter: | 200mm~470mm |
| NPSH: | 1.4m~4.5m |
| Allowable Max Motor Power: | 315 kw |
| Allowed Max Particle Size: | 20 mm |
| Seal Type: | Mechanical seal/ dynamic seal/ packing seal |
| Pump Weight: | up to 3000kg |
| RPM: | 1450 r/min |
| Material: | Metal (according to working conditions ) |
Some Details
Material of Construction: C. 1., C. S., S. S. 304/316 L, Bronze, Alloy-20, 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc.
Bearing body: axially movable structural design
Shaft: cantilever ratio design, the heavy-duty cylindrical roller bearing and the paired double-angle contact ball bearing are installed back to back
Shaft Sleeve: Renewable shaft sleeve is positive driven, hook type, with one end free to expand with temperature variations, PTFE gasket prevents leakage under sleeve. Sleeve permits application of inside balanced mechanical seals where required.

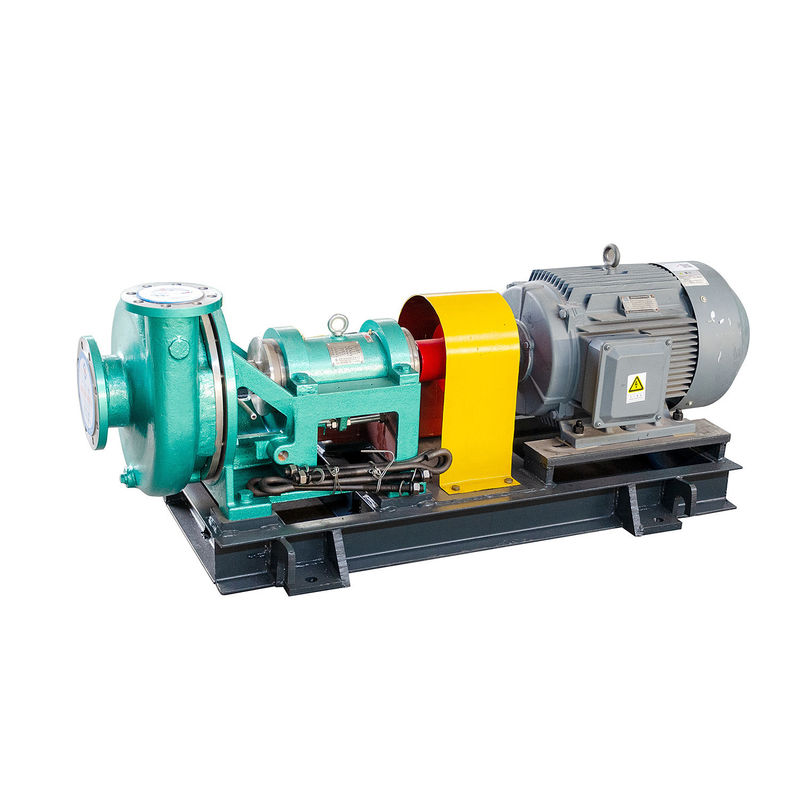

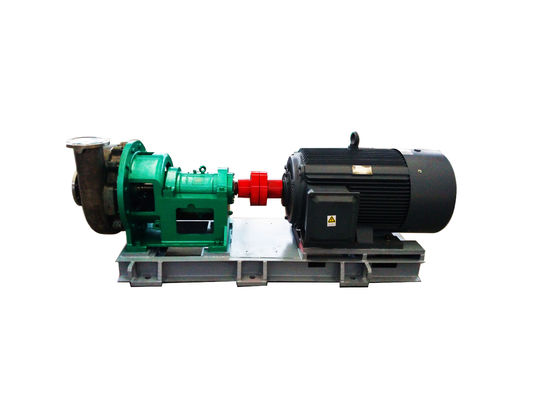

Product Picture
Package
| OEM | Acceptable |
| MOQ | 1 Set |
| Payment | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
| Packaging | free fumigation export wooden box packaging as customer’s request |
| Delivery time | 20-40 days according to the order quantity |
| Shipping | By sea, by air, by train |
