Product Details:
Payment & Shipping Terms:
|
MaxCapacity: | 2000m3/hr | Max Head: | <160m |
---|---|---|---|
Speed: | 1450~2900r/min | Frequency: | 50hz Or 60hz |
Usage: | Petrochemical, Chemicals, Dyes | Service: | Organic And Inorganic Chemicals |
Seal: | Packing Seal/Mechanical Seal | ||
Highlight: | centrifugal chemical process pumps,chemical transfer pumps |

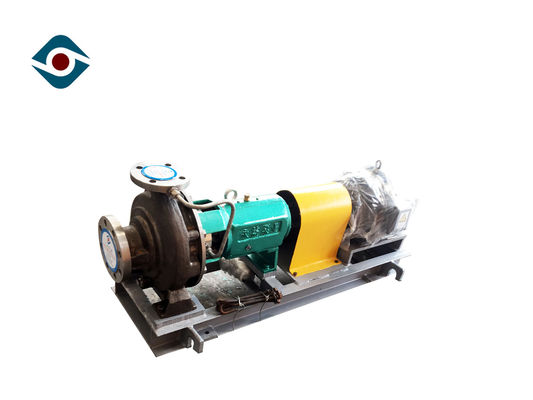

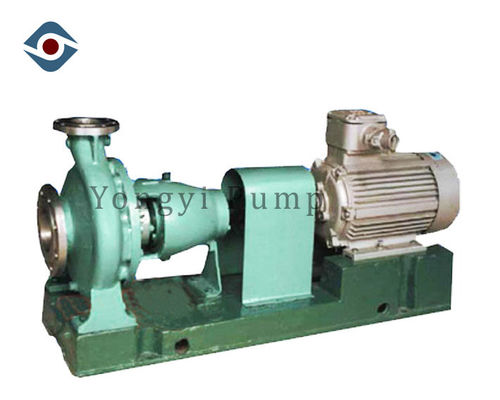

Corrosion Resistant Chemical Process Pump , Industrial Acid Pumps ISO9001 Structural Standard
Product Introduction
1. CZ-series pumps have advanced hydraulic model, high efficiency and good anti-cavitation properties.
2. CZ-series pumps is in accordance with standard IS03661
3. Widely used in the fields of chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply
4. CZ-series pumpsare suitable to convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.
Operation Data
Discharge Size: 20mm ~250mm
Inlet Size: 32mm~300mm
Capacity: 4~2000m³/h
Head: 2~160m
Maximal Efficiency: 65%
NPSH: 0m~3.5m
Allowable Max Motor Power: 710 KW
RPM: 1450r/min~2900r/min
Structure Features
1. The technical conditions of CZ chemical process pump are in accordance with ISO5199 and GB/T5656 standards. The pump has the features of high safety and reliability, high versatility and wide application range. At the same time, it follows the structural standard of industrial process pump. The pull-back design makes disassembly and maintenance safety, convenient and reduce the maintenance and repair costs
2. CZ chemical process pump is component assembly, 40 types with only 6 bearing body parts. The same series of the pump have the most interchangeable parts. The inlet and outlet flange adopts GB/T9113.1-2000PN2.5MPa standard flange and the welding flange of the Ministry of Chemical Industry European system HG20595 standard according to user requirements.
3. CZ chemical process pump adopts integral casting closed impeller, which has strong adaptability to working conditions, high efficiency and optimal cavitation performance. The impeller has back blade or balance hole, which can reduce axial thrust and seal chamber pressure, prolong the service life of bearing
Performance Curve
Package
MOQ |
1 Set |
OEM |
Acceptable |
Payment |
L/C,T/T,Western Union |
Supply Ability |
20 Sets/Week |
Packaging |
Packed in wooden cases or according to customer's requirements |
Delivery Time |
20~40 working days or according to the order quantity |
Shipping |
Sea, rail or air transport |
