Custom Industrial Chemical Pumps , Horizontal Centrifugal Pumps Chemical Resistant

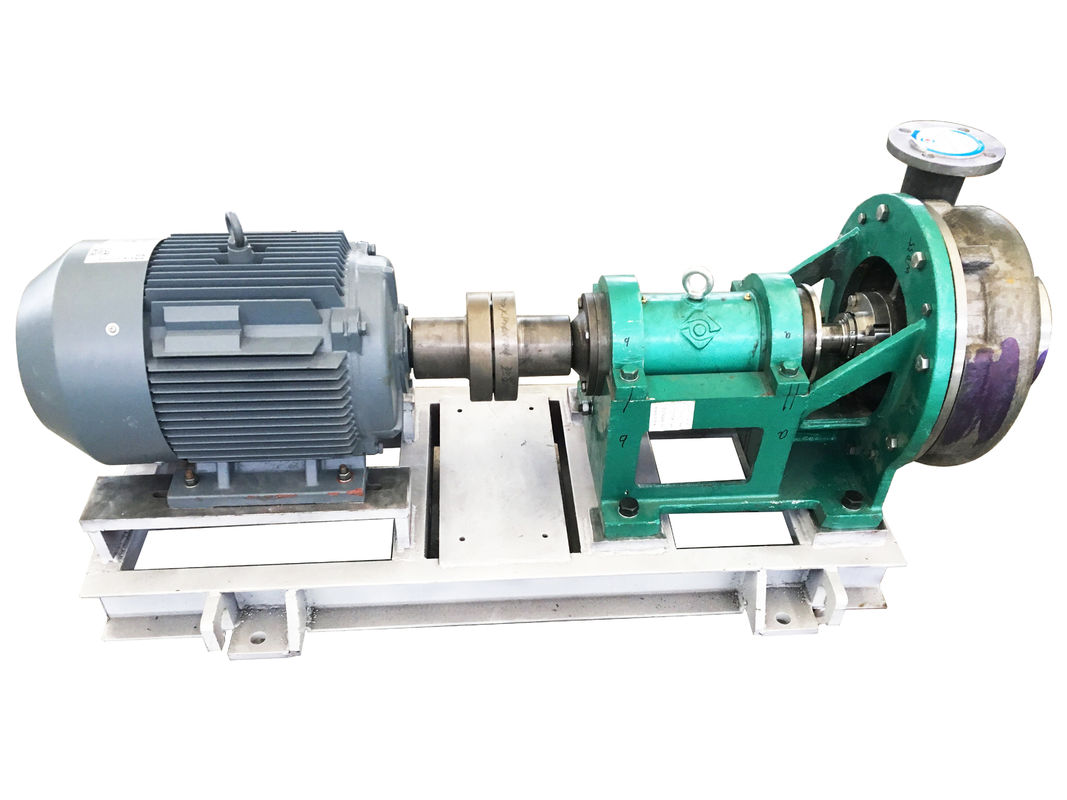

Large Image : Custom Industrial Chemical Pumps , Horizontal Centrifugal Pumps Chemical Resistant

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Chengdu Yongyi
Certification:	ISO9001
Model Number:	WD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 500-5000/set
Packaging Details:	free fumigation export wooden box packaging
Delivery Time:	25 working days after receiveing advance payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Max Flow:	4405GPM(1000m3/h)	Max Head:	120m
Liquid:	Impurity-containing Slurry	Color:	Customized
Usage:	Chemical Transfer	Key Words:	Horizontal Centrifugal Pump
OEM:	Welcome	Motor Power:	Up To 316KW
High Light:	high pressure chemical pump , electric chemical pump

Custom Industrial Chemical Pumps , Horizontal Centrifugal Pumps Chemical Resistant

Feature and Application

◆ With scientific construction and fine performance,it is used in transporting high temperature liquid contain solids content no more than 35%
◆ The corrosion-resistant degree and working temperature is depended on the material of the parts. Many corrosion resistance materials are available.

Custom Industrial Chemical Pumps , Horizontal Centrifugal Pumps Chemical Resistant

Technical Parameter

model	Clean Water Performance
model	flow (m3/h)	head (m)	speed (r/min)	maximum efficiency (%)	NPSH (NPSHr) m	pump head weight KG	shaft component
40WD-250	8-20	15-28	1450	39	0.6	141	45
40WD-310	8-40	23-42	1450	45	1	257	55
40WD-350	8-45	35-54	1450	37	1	271	55
50WD-250	10-30	15-28	1450	40	0.7	146	45
50WD-310	15-60	25-42	1450	45	1.1	262	55
50WD-350	15-70	35-54	1450	50	1.1	286	55
50WD-400	20-75	50-75	1450	45	1.1	483	70
65WD-250	30-70	15-28	1450	48	1.1	149	45
65WD-310	30-90	25-40	1450	57	1.4	274	55
65WD-350	40-100	35-54	1450	59	1.5	280	55
65WD-400	50-120	45-75	1450	55	1.7	495	70
65WD-450	50-120	70-95	1450	52	1.7	524	70
80WD-250	70-100	15-25	1450	61	1.5	153	45
80WD-310	70-120	25-40	1450	62	1.7	288	55
80WD-350	70-160	35-52	1450	65	2.0	295	55
80WD-400	70-160	50-75	1450	62	2.0	500	70
80WD-450	70-160	70-95	1450	60	2.0	539	70
100WD-310	100-150	20-38	1450	65	1.9	293	55
100WD-350	100-220	35-50	1450	65	2.5	299	55
100WD-400	100-220	40-72	1450	65	2.5	529	70
125WD-310	120-260	18-36	1450	67	2.8	304	55
125WD-350	120-300	35-50	1450	68	3.2	307	55
125WD-400	140-350	45-70	1450	70	3.4	559	70
125WD-450	150-360	65-90	1450	67	3.6	741	80
150WD-310	200-400	18-35	1450	72	3.8	332	55
150WD-350	200-450	15-48	1450	75	4.2	333	55
150WD-400	200-450	40-65	1450	73	4.2	597	70
150WD-450	200-500	60-80	1450	67	4.5	753	80
200WD-350	300-600	28-47	1450	79	5	583	70
200WD-430	300-650	50-65	1450	75	5.2	765	80
250WD-350	400-900	26-45	1450	79	6.5	850	80
250WD-430	400-900	50-61	1450	75	6.5	910	90

Structure

Custom Industrial Chemical Pumps , Horizontal Centrifugal Pumps Chemical Resistant

*1	Locking screw	*8	Vice impeller chamber	15	Front bearing cap	22	Oil pan	*29	Sleeve
2	Gasket	9	O-ring	*16	Front bearing	23	Adjustment nut	30	Water seal ring
*3	Impeller nut	*10	Vice impeller	17	Bearing body	24	Adjustment screw	31	Filler
4	O-ring	*11	Packing chamber	18	Bearing bracket	25	Bearing body bracket	32	O-ring
*5	Impeller	12	O-ring	*19	Rear bearing	*26	axis	*33	keys
*6	Pump body	13	Rinse water nozzle	20	Rear bearing cover	27	Shield cover
7	O-ring	14	Water retaining plate	21	Key	28	Packing gland

Benifits

Great displacement: adopts CAD modular structure design, more than 20 models, only 5 bearing bodies.The parts of the same series have great interchangeability. The inlet and outlet flanges of WD pumps follows the standard of HG20592-2000PN16Mpa, and different flange standards can be implemented according to user requirements.
Double volute: with small radial force and dynamic winding small, the pump runs smoothly
Bearing body: adopts an axially movable structural design, which can adjust the axial clearance between the auxiliary impeller and the packing chamber without disassembling the pump

After service

1. Routine tracing will be done timely.

2. Provide Clients one-yar warranty to make sure the machine work well(Attention: machine's warranty range don't include damageable Spare Parts)

3. Suggestions and any comments & reflection from customer would be treated in priority.
