Customized Powder Or Liquid Agitator Mixer , Vertical Chemical Mixers Agitators

High Quality Industrial Vertical Powder or Liquid Agitator Mixer for Chemical Industry

Main Usage

Yongyi agitator, anchor agitator, dispersion disk, two blades, propulsion blades, four blades, multi-blade, stretch blade are mainly used in paints, pigments, dyes, paints, ink, food, adhesives, medicine, daily chemicals and other liquids, The comminution, agitation and grinding of emulsion and liquid-solid materials are the conventional parts of disperser, grinder, pulverizer, mixer, emulsifier and other mechanical equipment.


Technical Parameter

1. Blade Agitator

This type of agitator is most basic. At low speed, the flow is horizontal circulation; at high speed, the flow is radial; With baffle, the flow is cycling up and down. The agitator is applicable to mix, homogenize and dissolve low-viscosity liquid, transfer heat and crystallize. When liquid is high-viscosity, the agitator is working under laminar conditions, and the stirrer is multi-layer and at low-speed.
Application conditions: Dj / D = 0.35-0.9; Applicable viscosity is commonly less than 2000cp, the maximum viscosity is 100000cp; linear velocity: 1-5m / s, N / n in the table refers to for the stirrer blade strength allowed values, the design temperature is <200 ° C, N refers to calculated power (kw), and n refers to revolutions per minute of stirrer.

Dimension

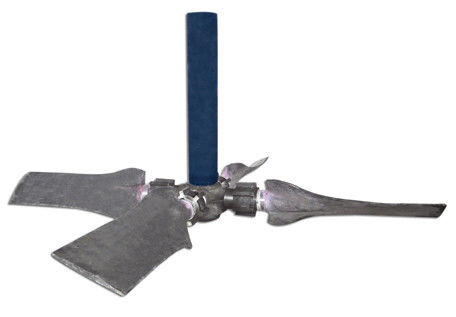

2. Open Turbine Agitator with Four Oblique Blades

Open turbine agitator with four oblique blades is similar to open turbine agitator with six flat blades. Under the same conditions, stirring intensity of the former is weaker than that of the latter, and its comprehensive performance is better when the higher speed is required. It’s one of the most widely used agitators.
According to different requirements, stabilizer can be designed as cylindrical stabilizer or stabilizer fin.
If stabilizer is designed as stabilizer fin, model P will be replaced by model W.
Application conditions: Dj / D = 0.2-0.8, often 0.4 is choosed; Applicable viscosity is commonly less than 50000cp; linear velocity is 1-10 (m / s); wide-type agitator B / Dj = 0.2, narrow-type agitator B / Dj = 0.125.

Dimension

Advantages:

1. Mixer machine is various speed available. Just to control the inlet valve or vent valve, then it can adjust the motor’s output power and revolving speed.

2. Its working environment is not affected by vibration, high temperature, electromagnetic and radiation. Applies to bad working environment. It can work as usual under the bad condition like inflammable, explosive, high temperature, vibration, moisture and dust.

3. It is easy to operate, maintain and repair.
