Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump

China Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump supplier
Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump supplier Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump supplier

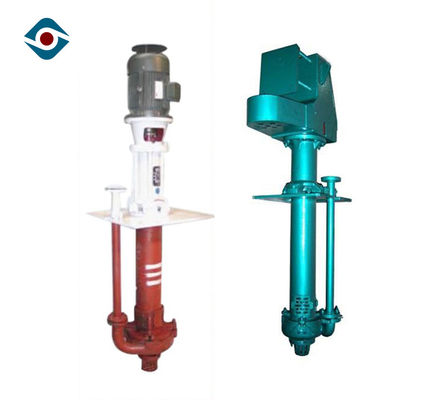

Large Image :  Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump

Product Details:

Place of Origin: Sichuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZJL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: Free Fumigation Export Wooden Box
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Rate Flow: 364m ³ / H Rate Head: 58m
Voltage: 220V, 380V, 440v Or More Application: Sewage, Gravel
Warranty: 365 Days Type: Vertical Slurry Pump
High Light:

vertical sump pump

,

vertical sewage pump

Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump



Design Features



1. More thick and heavy: the flow channel of vertical slurry pump is more thick and more abrasion proof, the weight is more heavier.

2. Longer service life than common vertical slurry pump.
3. Impeller can be customized. Bigger impeller, larger flow and more efficient.
4. Special material pumps can be customized.

5. All components of the pumps wetted by the liquid are made of corrosion resistance



Technical Parameter







Model



Clear Water Performance





Supporting motor



Rotating speed

n

Flow

Q

Head

H

Shaft power

Pa

effectiveness

η

r/min (m³/h) m kw %









150ZJL-A35



980

198 17.9 15.3 63.1

Y250M-6 V1

380V 37kw

332 13.2 17.5 68.1
364 12.1 18.0 66.8



730

147 10.0 6.3 63.1

Y200L-8 V1

380V 15kw

247 7.3 7.2 68.1
271 6.7 7.4 66.8



590

119 6.5 3.3 63.1

Y160L-10 V1

380V 11kw

200 4.8 3.8 68.1
219 4.4 3.9 66.8







100ZJL-A36



1480

113 51.1 32.1 54.1

Y250M-4 V1

380V 55kw

185 42.2 39.4 58.9
239 34.1 45 .1 54.2



970

76 22.9 9.6 54.1

Y200L1-6 V1

380V 18.5kw

124 18.9 11.8 58.9
160 15.3 13.5 54.2







80ZJL-A33



1480

100 46.8 26.8 52.6

Y225M-4 V1

380V 45kw

141 41.6 31.0 56.5
157 36.5 33.2 52.3



970

42 16.8 5.5 52.6

Y180L-6 V1

380V 15kw

94 12.4 7.1 56.5
122 8.4 8.7 52.3







65ZJL-A38



1470

75 52.3 23.1 42.7

Y225S-4 V1

380V 37kw

97 45.8 26.4 45.8
120 43.4 28.8 45.6



970

50 23.4 6.9 42.7

Y180L-6 V1

380V 15kw

65 20.5 7.9 45.8
80 19.4 8.6 45.6







65ZJL-A30



1470

38 34.7 8.2 43.7

Y180M-4 V1

380V 18.5kw

58 31.9 9.7 51.9
98 26.0 13.4 51.7



960

25 14.8 2.3 43.7

Y132M2-6 V1

380V 5.5kw

38 13.6 2.7 51.9
64 11.1 3.7 51.7







50ZJL-A40



1470

31 58.3 16.5 29.9

Y200L-4 V1

380V 30kw

47 51 19.1 34.1
65 37.9 22.1 30.3



970

21 25.4 4.9 29.9

Y160L-6 V1

380V 11kw

31 22.2 5.5 34.1
43 16.5 6.4 30.3





50ZJL-A36



1470

36 42.7 15.7 31.2

Y200L-4 V1

380V 30kw

63 37.8 18.7 39.4
85 29.3 20.7 33.5



970

24 19.1 4.7 31.2

Y160L-6 V1

380V 11kw

42 16.9 5.6 39.4
57 13.1 6.2 33.5





50ZJL-A20







1440

17.1 10.7 1.4 34.9

Y112M-4 V1

380V 4kw

24.7 9.2 1.6 38.6
38.0 6.0 2.0 31.2



910

10.8 4.3 0.4 34.9

Y90L-6 V1

380V 1.1kw

15.6 3.7 0.4 38.6
24.0 2.4 0.5 31.2







40ZJL-A35







1470

23.7 42.9 12.8 27.3

Y180L-4 V1

380V 22kw

42.3 34.3 13.7 33.8
47.6 30.5 14.1 28.1



970

15.8 19.2 3.8 27.3

Y160M-6 V1

380V 7.5kw

28.3 15.3 4.1 33.8
31.8 13.6 4.2 28.1







40ZJL-A25





1440

10.1 21.5 2.3 26.1

Y132S-4 V1

380V 5.5kw

18.4 19.0 2.6 36.6
22.9 16.8 2.8 37.6



910

6.6 9.2 0.6 26.1

Y90L-6 V1

380V 1.1kw

12 8.1 0.7 36.6
14.9 7.2 0.7 37.6







40ZJL-A21





1440

9.5 17.0 1.6 27.9

Y112M-4 V1

380V 4.0kw

20.3 15.3 2.0 42.4
25.9 14.1 2.2 44.6



910

6.0 6.8 0.4 27.9

Y90L-6 V1

380V 1.1kw

12.8 6.1 0.5 42.4
16.4 5.6 0.6 44.6



Spare Parts Details



Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump



Structure



Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump



1 Volute casing 2 support 3 Motor base
4 Impeller 5 Left support plate 6 Discharge pipe
7 Rear liner plate 8 Bearing body 9 Right support plate

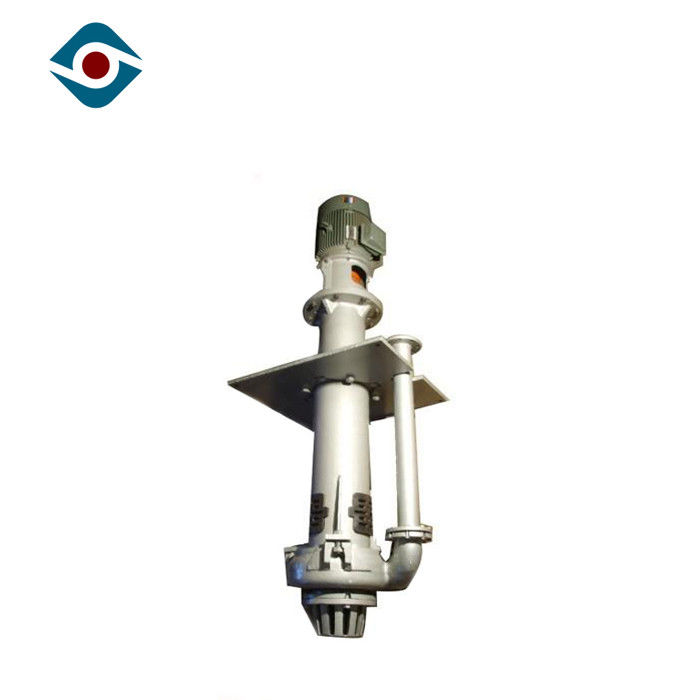

Product Picture


Customized Vertical Spindle Slurry Pump , Industrial Submersible Sewage Pump
