| Theory: | Mix Flow Pump | Flow: | 200-6500m3/h |
|---|---|---|---|
| Head: | 8-25m | Impeller: | Closed/ Semi Open |
| Brand: | Chengdu Yongyi | Pressure: | 1.6MPa |
| Flange: | Customized | Condition: | New |
| Name: | Flue Gas Desulphurization Pump | ||
| High Light: | mixed flow centrifugal pump,radial flow pump |
||

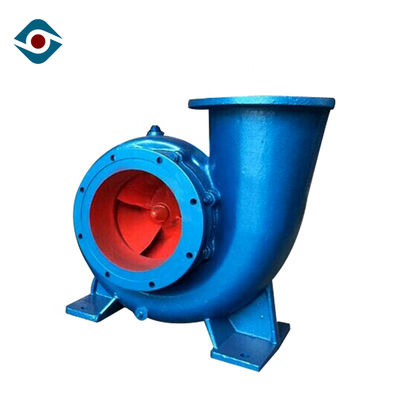

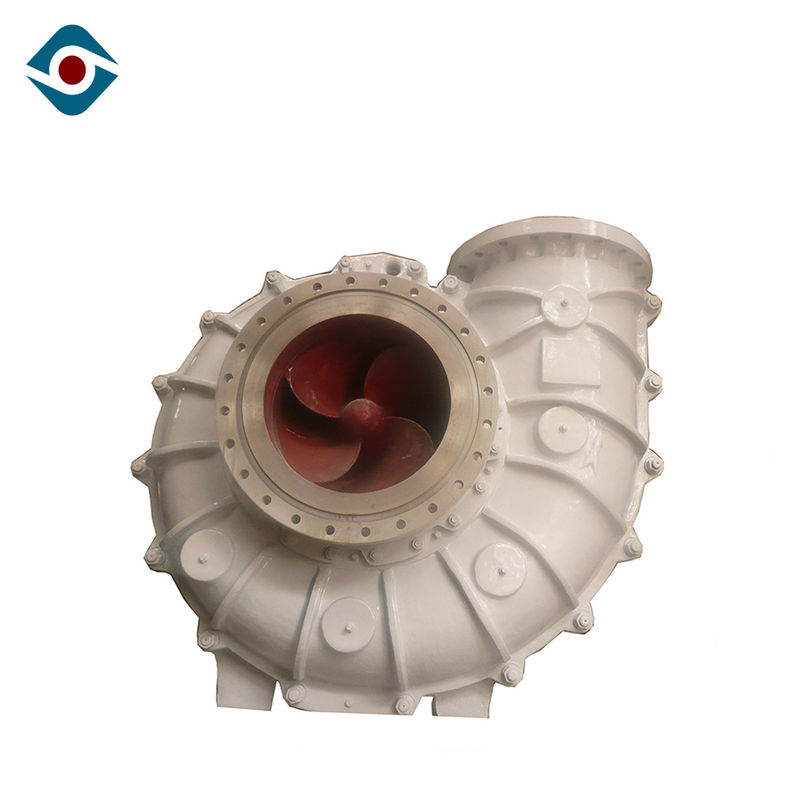

New Pump Design DN470mm Large Volume Single Suction Mixed Flow and Radial flow Industrial Chemical Pump
Features
1. Anti-wear, anti-abrasive, anti-corrosive.
2. High efficiency, lower noise, less vibration& long service life.
3. Top brand of shaft and bearings make slurry pump stronger.
4. Easily to install and disassemble the pump parts.
Performance Data
| Model: YYTL-series desulphurization pump |
| Discharge Size: 200mm~800mm |
| Inlet Size: 250mm~900mm |
| Capacity: 200-6500 m³/h |
| Head: 8-25 m |
| Maximal Efficiency: 90.2% |
| NPSH: 3.2m~9.6m |
| Allowable Max Motor Power: 1800 kw |
| Allowed Max Particle Size: 20 mm |
| Seal Type: mechanical seal/dynamic seal/packing seal |
| Pump Weight:up to 3000kg |
| RPM: 1450 r/min |
Structure
| 1 | Round nut | 2 | Rear bearing cover | 3 | Adjustment screw | 4 | Rear bearing | 5 | Ventilation plug |
| 6 | Front bearing | 7 | Front bearing cover | 8 | Water retaining plate | 9 | bolt | 10 | O ring |
| 11 | Pump cover | 12 | Mechanical seal | 13 | Pump body | 14 | impeller | 15 | Impeller nut |
| 16 | bolt | 17 | O ring | 18 | Lock screw | 19 | Front cover | 20 | O ring |
| 21 | O ring | 22 | key | 23 | O ring | 24 | Bearing body | 25 | Cooling water gland |
| 26 | Oil pointer | 27 | shaft | 28 | Cooling water pipe | 29 | Nearing box | 30 | Support blade |
| 31 | O ring | 32 | Framework oil seal | 33 | spacer sleeve | 34 | key |
Application
Fluid circulation of ammonium phosphate and potash fertilizer process.
Forced circulation of big flow of corrosive fluids with suspending particles.
Details
