Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System

China Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System supplier
Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System supplier Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System supplier

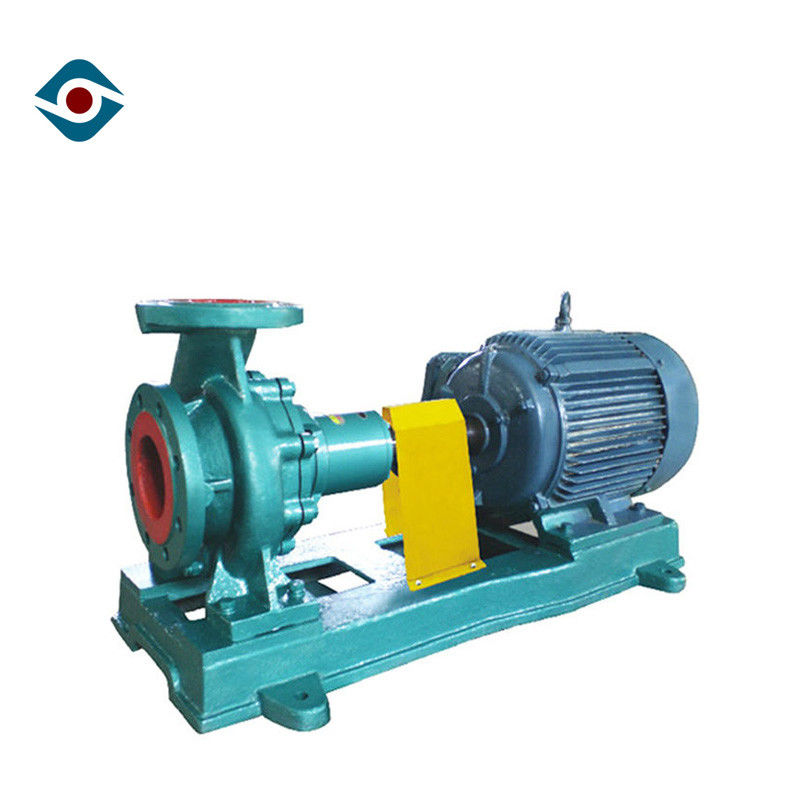

Large Image :  Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System

Product Details:

Place of Origin: Sichuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZA

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: Free Fumigation Export Wooden Box
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Type: Back-Pullout Design Capacity Rate: 4-2040m3/hr
Head: 2-300 Meter Warranty: 1 Year
Pressure: 25kg/cm2 Impeller: Closed / Semi Open
High Light:

centrifugal chemical pump

,

industrial chemical pumps

Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System



Specification Data



Discharge Size Inlet Size Capacity Head NPSH
32mm~200mm 50mm~250mm 4~2600m³/h 2~300m 1.4m~3.5m



Summaries



1. ZA-series chemical process pump is single-stage horizontal pump.

2. The pump adopts radial split volute design.

2. The pump body is supported by foot

3. The impeller is single-suction radial impeller.

4. Liquid is sucked axially and discharged radially.

5. Packing box is equipped with cooler adapter or heater adapter; packing seal, single mechanical seal and double mechanical sealare adopted for shaft seal.

6. The pump is equipped with cooling, washing and sealing fluid system.



Characteristic



  • Impeller: The impeller has two types including standard closed impeller and open impeller. The closed impeller has strong adaptability to working conditions and has the feature of high efficiency and low cavitation. The open impeller is suitable for conveying vapor-liquid and solid-liquid two-phase media.
  • Pump Body:The pump body is double volute if the diameter is more than 80mm, with small radial force, replaceable ring and flushable ring. The pump body and pump cover sealed by compressible metal gasket.
  • Shaft Seal: The shaft seal including packing seal and mechanical seal, and the maximum axis bounce is within 0.05mm.

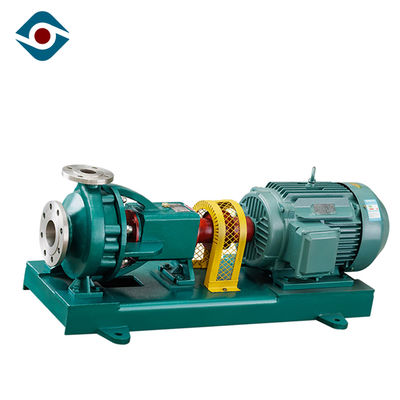

Pictures



Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System



Drawings


Easy Operation High Pressure Centrifugal Chemical Process Pumps For Reverse Osmosis System



102.00

pump body

161.00

pump cover

183.00

Support foot

210.00

shaft

230.00

impeller

320.00

Antifriction bearing

320.01

Antifriction bearing

330.00

Bearing bracket

360.00

Bearing cover

360.01

Bearing cover

400.00

Flat gasket

400.01

Flat gasket

412.00

O ring

412.01

O ring

433.00

Mechanical seal

433.01

Mechanical seal

471.00

Sealing cover

471.01

Sealing cover

502.00

Casing wear ring

502.01

Casing wear ring

502.02

Casing wear ring

503.00

Impeller wear ring

503.01

Impeller wear ring

507.00

deflrctor

507.01

deflector

524.00

sleeve

524.01

sleeve

638.00

Constant-level-oiler

644.00

Lubricating ring

673.00

Vent filter

710.00

pipe

915.00

Threaded insert

922.00

Impeller nut

923.00

Bearing nut

932.00

circlip
