| Theory: | Centrifugal Pump | Flow: | 4-2040 M3 / H |
|---|---|---|---|
| Head: | 2-300m | Color: | Customized |
| Start Up: | Electric Pump | OEM: | Welcome |
| High Light: | centrifugal chemical pump,pumps used in chemical industry |
||
Efficiency Chemical Resistant Pump Anti Wear Sulfuric Acid Centrifugal Pump for Fluid Handling
Main Feature
ZA-series chemical process pump is single-stage horizontal radial split volute pump.The pump body is supported by foot; the impeller is single-suction radial impeller. Liquid is sucked axially and discharged radially. According to working condition, front ring, rear ring and balance pipeare used for hydraulic balance.
Performance Range
| ZA-series Chemical Process Pump | ||
| Technical Parameter | Medium | |
| DN | 25-400mm |
|
| Flow Q | <2600m3/h | |
| Head H | <250m | |
| Pressure P | <2.5MPa | |
| Temperature T | -80℃-450℃ | |
Structure
| 102.00 | pump body | 161.00 | pump cover | 183.00 | Support foot |
| 210.00 | shaft | 230.00 | impeller | 320.00 | Antifriction bearing |
| 320.01 | Antifriction bearing | 330.00 | Bearing bracket | 360.00 | Bearing cover |
| 360.01 | Bearing cover | 400.00 | Flat gasket | 400.01 | Flat gasket |
| 412.00 | O ring | 412.01 | O ring | 433.00 | Mechanical seal |
| 433.01 | Mechanical seal | 471.00 | Sealing cover | 471.01 | Sealing cover |
| 502.00 | Casing wear ring | 502.01 | Casing wear ring | 502.02 | Casing wear ring |
| 503.00 | Impeller wear ring | 503.01 | Impeller wear ring | 507.00 | deflrctor |
| 507.01 | deflector | 524.00 | sleeve | 524.01 | sleeve |
| 638.00 | Constant-level-oiler | 644.00 | Lubricating ring | 673.00 | Vent filter |
| 710.00 | pipe | 915.00 | Threaded insert | 922.00 | Impeller nut |
| 923.00 | Bearing nut | 932.00 | circlip |

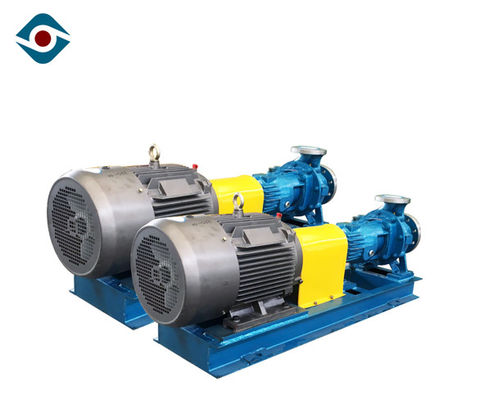

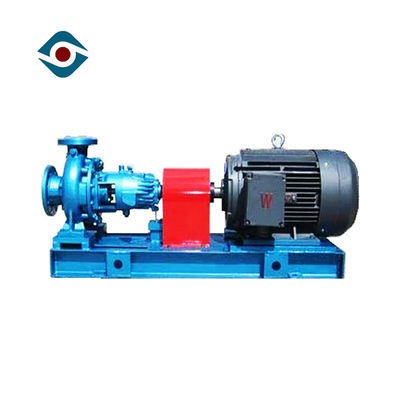

Picture and Details
Why Choose Us
A.more than 20 years experiences manufacturer
B.Good quality with competitive pirce
C.ISO2000, CE certificate, CCS certificate
D. Professional after-sales service:
