Product Details:
Payment & Shipping Terms:
|
| Theory: | Axial Flow Pump | Flow: | 500-13000m3/h |
|---|---|---|---|
| Max Head: | 8m | Pressure: | 1.0MPa |
| Temperature: | -50-150℃ | Voltage: | 380V/Customized |
| Warranty: | 1 Year | Color: | Customized |
| Feature: | Large Flow | Type: | Blade Pump |
| Highlight: | horizontal axial flow propeller pump,axial flow centrifugal pump |
||

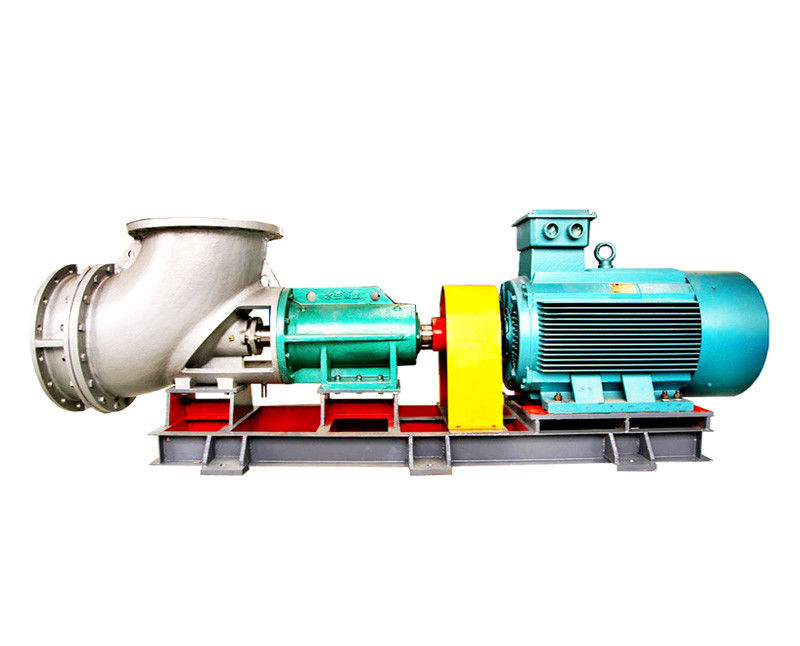

Electric Industrial Horizontal Axial Flow Pump Single Suction 500-13000m3/h
Product Introduction
Application
1. convey corrosive and abrasive liquid medium containing solid particles
2. phosphate & compound fertilizer industry, alumina industry, chemical metallurgy industry, chemical industry, alkali industry, salt making industry and paper making industry
Structure
| 1 | Impeller nut | 8 | Packing room | 15 | coupling | 22 | framework oil seal | 29 | filler |
| 2 | Sealing cover | 9 | Bearing base | 16 | coupling | 23 | Lower bearing upper cover | 30 | Sealing cover |
| 3 | joint | 10 | framework oil seal | 17 | motor | 24 | Lower bearing lower cover | 31 | impeller |
| 4 | sheath | 11 | lower bearing | 18 | Round nut | 25 | Packing cover | ||
| 5 | shaft | 12 | base | 19 | upper bearing cover | 26 | nozzle | ||
| 6 | sleeve | 13 | Motor base | 20 | upper bearing | 27 | Water seal ring | ||
| 7 | Pump body | 14 | Oil pointer | 21 | Bearing case | 28 | Pump cover |
Material Choose
| Industry | Station | Impeller and Suction Short Pipe Material |
| phosphorous fertilizer industry | flashing station | Cr30 |
| phosphoric acid concentration station | 904L | |
| Other Industries | concentrated cycle station | CD4MCu, Cr30, 304, 304L, 316, 316L, 904L (UB-6), 20# alloy and other materials |
Product Features

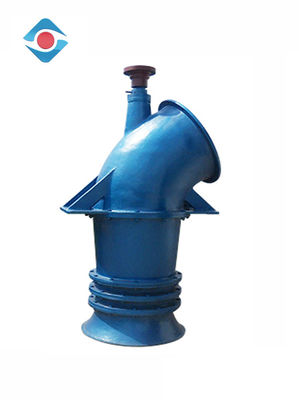

Product Picture
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
