Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 364m 3/ H | Max Head: | 58m |
|---|---|---|---|
| Material: | Metal | Application: | Sewage |
| Efficiency: | 70% | Seal Type: | Not Necessary |
| Highlight: | vertical sump pump,industrial slurry pumps |
||

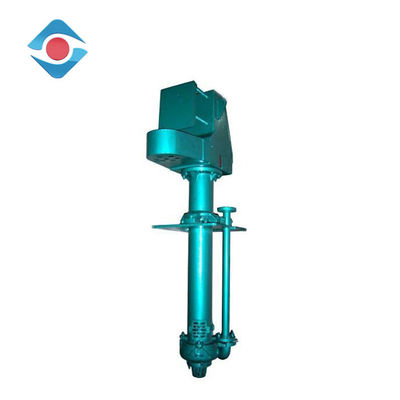

Electric Submerged Vertical Slurry Pump Dewatering Pump Corrosion Resistant
Features
1. Do not need any seal, because the pump is installed vertically with the motor above the liquid surface.
2. High efficiency, lower noise, less vibration& long service life.
3. Top brand of shaft and bearings make slurry pump stronger.
4. Easily to install and disassemble the pump parts.
Application
The non-clogging sewage pump is applicable to transport the sewage containing particles ,the clear water and corrosive medium in such industries as chemical engineering, petroleum, pharmacy, mining, paper making, cement mill, steel works, power plant, coal processing, drainage system of city sewage plant, public works and construction site. The chart shows the various fields the pump can apply in.
|
• Mining • Mineral processing • Construction • Chemical and Fertilization • Power generation |
• Phosphate matrix fertilization • Pulp and paper • Waste sludge • Paper mill wastes and liquors • Precipitated CaCO3 |
• Phosphoric acid |
|
• Waste water treatment • Ball mill discharge • Rod mill discharge • SAG mill discharge • Fine tailing |
• Flotation • Heavy media process • Minerals concentrate • Mineral sands • Coal-washing plant |
• Coarse sand • Coarse tailing • Dredging • FGD • Wet crushers applications |
Technical Parameter
|
Model |
Clear Water Performance |
||||
|
Rotating speed n |
Flow Q |
Head(m) H |
Shaft power Pa |
Effectiveness η |
|
|
r/min |
(m³/h) |
m |
kw |
% |
|
|
150ZJL-A35 |
590-980 |
119-364 |
4.4-17.9 |
3.9-15.3 |
63.1-68.1 |
|
100ZJL-A36 |
970-1480 |
76-239 |
15.3-51.1 |
9.6-32.1 |
54.1-58.9 |
|
80ZJL-A33 |
970-1480 |
42-157 |
8.1-48.6 |
8.7-33.2 |
52.3-56.5 |
|
65ZJL-A38 |
970-1470 |
50-120 |
19.4-52.3 |
6.9-28.8 |
42.7-45.8 |
|
65ZJL-A30 |
960-1470 |
25-98 |
11.1-34.7 |
2.3-13.4 |
43.7-51.9 |
|
50ZJL-A40 |
970-1470 |
21-65 |
16.5-58.3 |
5.5-22.1 |
29.9-34.1 |
|
50ZJL-A36 |
970-1470 |
36-85 |
13.1-42.7 |
4.7-20.7 |
31.2-39.4 |
|
50ZJL-A20 |
910-1440 |
10.8-38 |
4.3-10.7 |
0.4-2 |
31.2-38.6 |
|
40ZJL-A35 |
970-1470 |
15.8-47.6 |
13.6-42.9 |
3.8-14.1 |
27.3-33.8 |
|
40ZJL-A25 |
910-1440 |
6.6-22.9 |
7.2-21.5 |
0.6-2.8 |
26.1-37.6 |
|
40ZJL-A21 |
910-1140 |
6.0-9.5 |
6.8-17 |
0.4-2.6 |
27.9-44.6 |
Installation Dimension

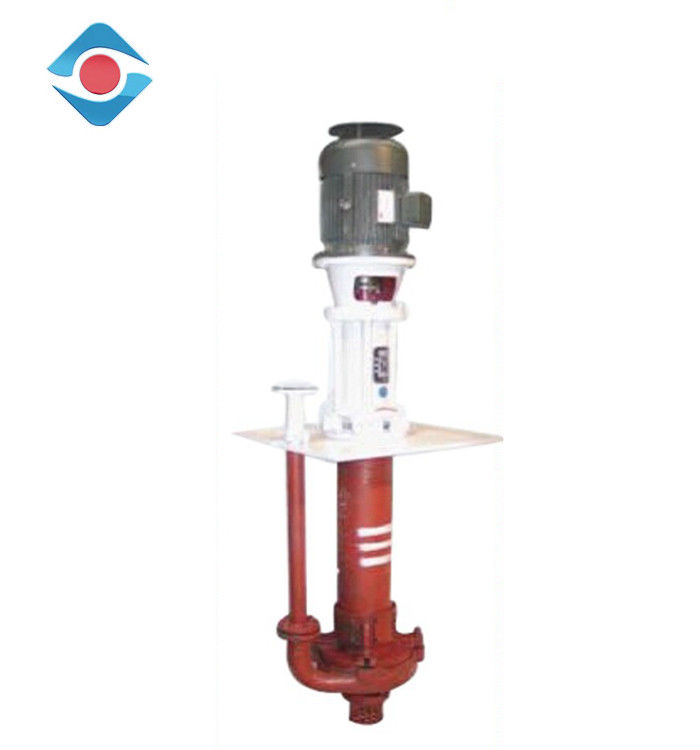

Product Picture
Our Advantage
1. Achievements on Patented Technology
2. Strength is the guarantee of quality
3. Help customers to maximize the value of the product
