| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Max Head: | 120m | Pressure: | 1.6MPa |
| Color: | Customized | Standard Or Nonstandard: | Standard |
| Name: | High Efficiency Centrifugal Single Stage Horizontal Axially Split Casting Chemical Pump | Structure: | Single-stage Pump |
| Fuel: | Electric | Material: | Cast Iron,Cast Iron/stainless Steel,A51),Hi-Cr Alloy(A05 |
| High Light: | horizontal split case centrifugal pump,industrial centrifugal pumps |
||

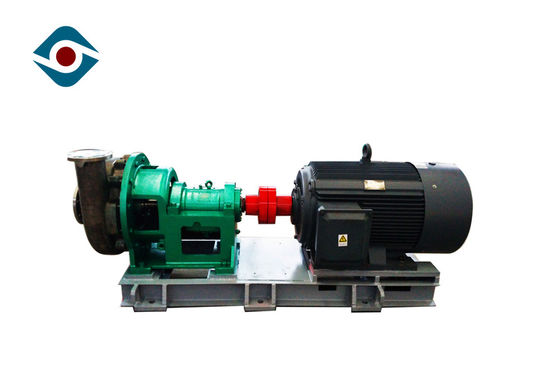

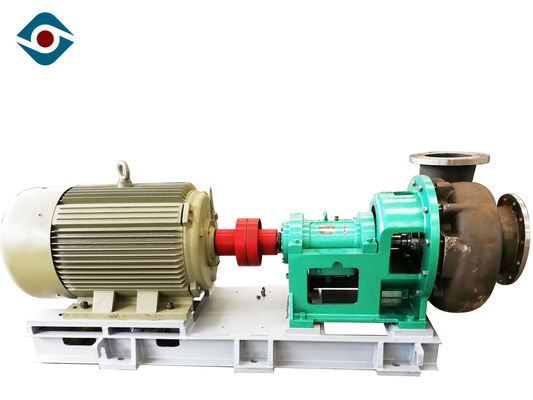

End Suction Horizontal Centrifugal Pump Multistage for Acid Alkali Chemical Liquid
Features
anti-corrosion and wear-resistant horizontal centrifugal pump
current general structure: bracket support and rear door form
maintenance safe and convenient
great interchangeability
follows the standard of HG20592-2000PN16Mpa
integral casting impeller
pump body adopts wide flow channel design
suitable for high solid content, high viscosity and easy crystallization medium
Performance Data
Capacity: 8 ~ 800 m³/h
Head: 10 ~ 90 m
Maximal Efficiency: 70%
Diameter: 200mm~470mm
NPSH: 1.4m~4.5m
Allowable Max Motor Power: 315 kw
Allowed Max Particle Size: 20 mm
Seal Type: Mechanical seal/ dynamic seal/ packing seal
Pump Weight: up to 3000kg
RPM: 1450 r/min
Material: Metal (according to working conditions )
Structure
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Installation Dimension
Technical Parameter
|
model |
Clean Water Performance |
||||||
|
flow (m3/h) |
head (m) |
speed (r/min) |
maximum efficiency (%) |
NPSH (NPSHr) m |
pump head weight KG |
shaft component |
|
|
40WD-250 |
8-20 |
15-28 |
1450 |
39 |
0.6 |
141 |
45 |
|
40WD-310 |
8-40 |
23-42 |
1450 |
45 |
1 |
257 |
55 |
|
40WD-350 |
8-45 |
35-54 |
1450 |
37 |
1 |
271 |
55 |
|
50WD-250 |
10-30 |
15-28 |
1450 |
40 |
0.7 |
146 |
45 |
|
50WD-310 |
15-60 |
25-42 |
1450 |
45 |
1.1 |
262 |
55 |
|
50WD-350 |
15-70 |
35-54 |
1450 |
50 |
1.1 |
286 |
55 |
|
50WD-400 |
20-75 |
50-75 |
1450 |
45 |
1.1 |
483 |
70 |
|
65WD-250 |
30-70 |
15-28 |
1450 |
48 |
1.1 |
149 |
45 |
|
65WD-310 |
30-90 |
25-40 |
1450 |
57 |
1.4 |
274 |
55 |
|
65WD-350 |
40-100 |
35-54 |
1450 |
59 |
1.5 |
280 |
55 |
|
65WD-400 |
50-120 |
45-75 |
1450 |
55 |
1.7 |
495 |
70 |
|
65WD-450 |
50-120 |
70-95 |
1450 |
52 |
1.7 |
524 |
70 |
|
80WD-250 |
70-100 |
15-25 |
1450 |
61 |
1.5 |
153 |
45 |
|
80WD-310 |
70-120 |
25-40 |
1450 |
62 |
1.7 |
288 |
55 |
|
80WD-350 |
70-160 |
35-52 |
1450 |
65 |
2.0 |
295 |
55 |
|
80WD-400 |
70-160 |
50-75 |
1450 |
62 |
2.0 |
500 |
70 |
|
80WD-450 |
70-160 |
70-95 |
1450 |
60 |
2.0 |
539 |
70 |
|
100WD-310 |
100-150 |
20-38 |
1450 |
65 |
1.9 |
293 |
55 |
|
100WD-350 |
100-220 |
35-50 |
1450 |
65 |
2.5 |
299 |
55 |
|
100WD-400 |
100-220 |
40-72 |
1450 |
65 |
2.5 |
529 |
70 |
|
125WD-310 |
120-260 |
18-36 |
1450 |
67 |
2.8 |
304 |
55 |
|
125WD-350 |
120-300 |
35-50 |
1450 |
68 |
3.2 |
307 |
55 |
|
125WD-400 |
140-350 |
45-70 |
1450 |
70 |
3.4 |
559 |
70 |
|
125WD-450 |
150-360 |
65-90 |
1450 |
67 |
3.6 |
741 |
80 |
|
150WD-310 |
200-400 |
18-35 |
1450 |
72 |
3.8 |
332 |
55 |
|
150WD-350 |
200-450 |
15-48 |
1450 |
75 |
4.2 |
333 |
55 |
|
150WD-400 |
200-450 |
40-65 |
1450 |
73 |
4.2 |
597 |
70 |
|
150WD-450 |
200-500 |
60-80 |
1450 |
67 |
4.5 |
753 |
80 |
|
200WD-350 |
300-600 |
28-47 |
1450 |
79 |
5 |
583 |
70 |
|
200WD-430 |
300-650 |
50-65 |
1450 |
75 |
5.2 |
765 |
80 |
|
250WD-350 |
400-900 |
26-45 |
1450 |
79 |
6.5 |
850 |
80 |
|
250WD-430 |
400-900 |
50-61 |
1450 |
75 |
6.5 |
910 |
90 |
