| Flow: | 4-2040 M3 / H | Head: | 2-300Mtr |
|---|---|---|---|
| Start Up: | Electric Motor | Type: | Horizontal Chemical Process Pump |
| Frequency: | 50 Hz | Working Temperature: | -80~450℃ |
| Highlight: | industrial chemical pumps,pumps used in chemical industry |
||

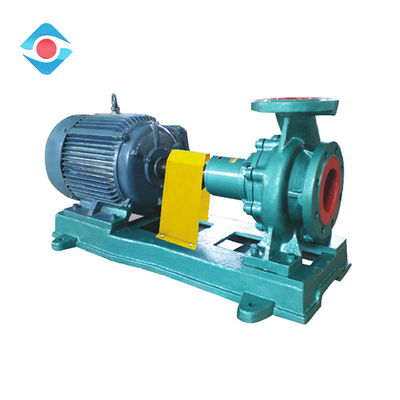

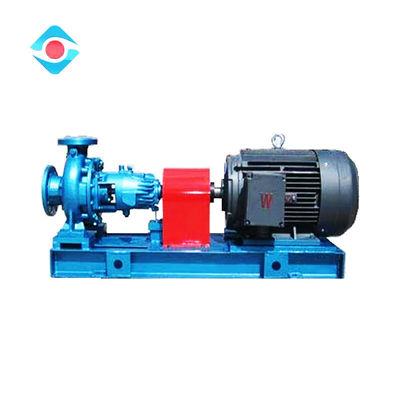

Enhanced Durability Anti-Corrosion Horizontal Chemical Pumps Single Stage End Suction Customized
Introduction
ZA-series chemical process pump is single-stage horizontal radial split volute pump. The pump body is supported by foot; the impeller is single-suction radial impeller. Liquid is sucked axially and discharged radially. According to working condition, front ring, rear ring and balance pipe are used for hydraulic balance. Packing box is equipped with cooler adapter or heater adapter; packing seal, single mechanical seal and double mechanical seal are adopted for shaft seal. Besides, the pump is equipped with cooling, washing and sealing fluid system.
Mainly Usage
-Organic and inorganic chemicals: Alcohol, Ester, Glycerin, Resin, Curing Agent, Isocyanate, Monomer, Oil, Phenol, Acid, Biodiesel, Asphalt etc
-Polymers: Cellulose · Nylon 66 · Prepolymers · etc.
-Pharmaceutical and cosmetic products: Amino acids · Lotion · Shampoo · Vitamins · etc.
Performance Range
| ZA-series Chemical Process Pump | ||
| Technical Parameter | Medium | |
| DN | 25-400mm |
|
| Flow Q | <2600m3/h | |
| Head H | <250m | |
| Pressure P | <2.5MPa | |
| Temperature T | -80℃-450℃ | |
Structure
|
102.00 |
pump body |
161.00 |
pump cover |
183.00 |
Support foot |
|
210.00 |
shaft |
230.00 |
impeller |
320.00 |
Antifriction bearing |
|
320.01 |
Antifriction bearing |
330.00 |
Bearing bracket |
360.00 |
Bearing cover |
|
360.01 |
Bearing cover |
400.00 |
Flat gasket |
400.01 |
Flat gasket |
|
412.00 |
O ring |
412.01 |
O ring |
433.00 |
Mechanical seal |
|
433.01 |
Mechanical seal |
471.00 |
Sealing cover |
471.01 |
Sealing cover |
|
502.00 |
Casing wear ring |
502.01 |
Casing wear ring |
502.02 |
Casing wear ring |
|
503.00 |
Impeller wear ring |
503.01 |
Impeller wear ring |
507.00 |
deflrctor |
|
507.01 |
deflector |
524.00 |
sleeve |
524.01 |
sleeve |
|
638.00 |
Constant-level-oiler |
644.00 |
Lubricating ring |
673.00 |
Vent filter |
|
710.00 |
pipe |
915.00 |
Threaded insert |
922.00 |
Impeller nut |
|
923.00 |
Bearing nut |
932.00 |
circlip |
