Product Details:
Payment & Shipping Terms:
|
| Theory: | Centrifugal Pump | Max Flow: | 3000 M³/h |
|---|---|---|---|
| Max Head: | 130 M | Min Head: | 10m |
| Structure: | Single Stage | Voltage: | 380V Or Higher |
| Pressure: | High Pressure | Warranty: | One Year |
| Power: | Electric | Application: | Pumping Slurry |
| Highlight: | horizontal centrifugal slurry pump,industrial sludge pump |
||
Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant
Detailed Characteristic
1. cantilever, horizontal centrifugal slurry pump
2. interchangeable wear-resistant metal lining, and the impeller is made of wear-resistant metal or rubber material.
3. shaft seal can be used packing seal or pay impeller pressure relief cover seal. The outlet position of the pump can be installed and used by rotating 8 different angles at 45° intervals as required.
Usage
It can transfer slurry containing impurities such as sand, quartz, cinder, iron slag, stone, limestone, etc./ and the diameter of the particles can reach up to 135mm
Technical Range
|
Model: ZJ-series horizontal slurry pump |
| Discharge Size: 20mm~350mm | |
| Inlet Size: 32mm~400mm | |
| Capacity: 4 ~ 3000 m³/h | |
| Head: 10 ~ 130 m | |
| Maximal Efficiency: 70% | |
| NPSH: 0m~3m | |
| Allowable Max Motor Power: 315 kw | |
| Impeller | Allowed Max Particle Size: 20 mm |
| Vanes: 5/6 | Seal Type: step-down dynamic seal |
| Type: closed/ half open | Pump Weight:up to 3000kg |
| Material:Metal (according to working conditions ) | RPM: 1450 r/min |

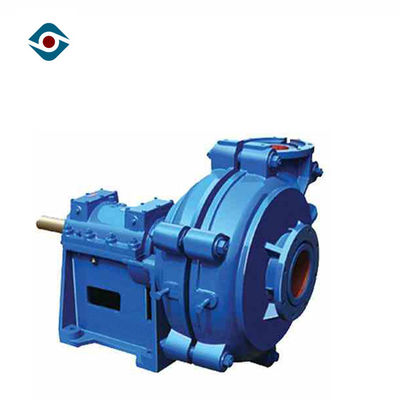

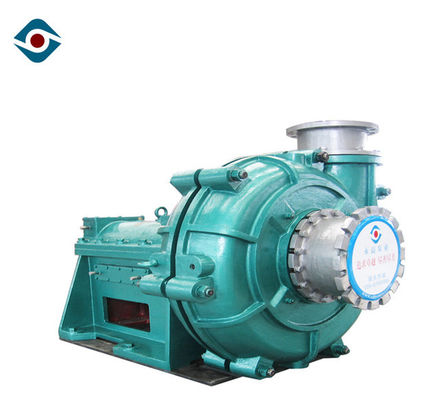

Product Picture
Details
The impeller, either elastomer, stainless steel or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid. We usually use high chromium, which is wear resistant, corrosion resistant, not afraid of most of solid parts.
Our Service
Pre-sale service
1.Consulting and consulting support.
2.Sample test support.
3. View our factory.
After sales service
1.Train how to install the machine and train how to use the machine.
2. Video demonstration, operation guide
3. Engineers can repair machinery overseas.
