| Flow: | 6 ~ 364m ³ / H | Head: | 6～58m |
|---|---|---|---|
| Material: | Wear And Corrosion Resistance Material | Connection Type: | Customized |
| Application: | Sewage, Chemical | Discharge Direction: | Upright |
| Highlight: | vertical sump pump,industrial slurry pumps |
||
High Efficiency Heavy Duty for Slurry Pumping Vertical Abrasive Slurry Pump Sump Pump
Typical Application
Pump Description
Usage: Vertical slurry pump are used to pump high abrasive liquid with least amount of water.
Material: The materials used are the very best available, providing both excellent wear properties and corrosion resistance: 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc.
Wear Part: Wear parts are available in a variety of different materials and fully interchangeable
No Shaft Seal: Suitable for handling high pressure system, high or lower temperature fluids, high melting point fluids.
Data Range
|
Specification |
Data |
|
Name |
ZJL-series Vertical Slurry Pump |
|
Diameter |
200mm~470mm |
|
Head |
4 ~ 60 m |
|
Capacity |
6 ~ 364m³/h |
|
Discharge Size |
40mm~200mm |
|
Inlet Size |
50mm~250mm |
|
NPSH |
1.4m~3.5m |
Structure
| 1 | Volute casing | 2 | support | 3 | Motor base |
| 4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
| 7 | Rear liner plate | 8 | Bearing body | 9 | Right support plate |

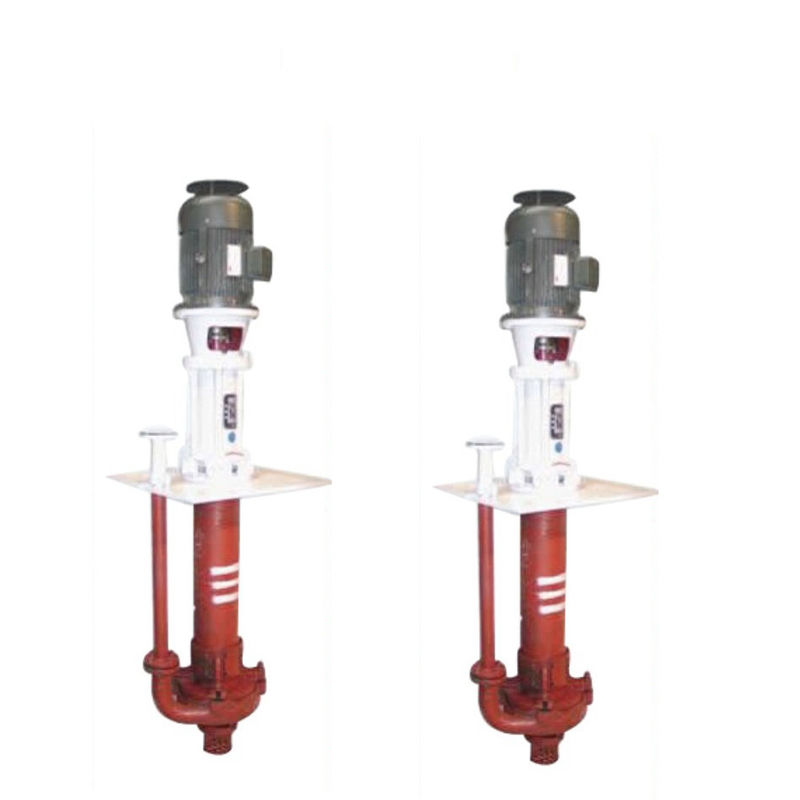

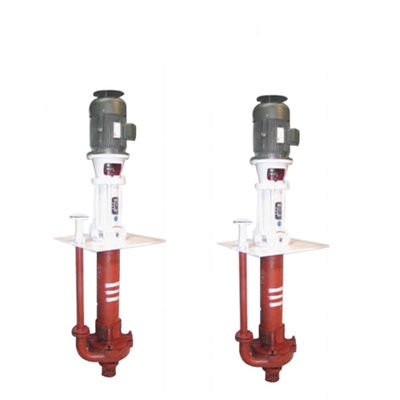

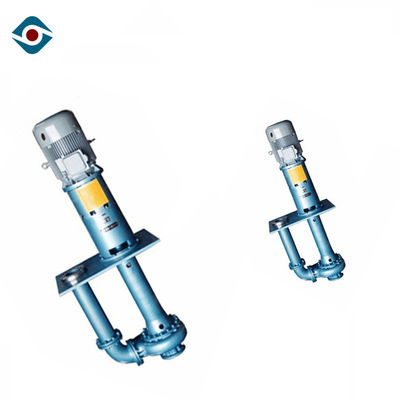

Product Picture
