Max Flow: | 364m 3/ H | Max Head: | 58m |
---|---|---|---|
Color: | Customized | Voltage: | 380V/660V/1140V |
Structure: | Single-stage Pump | Application: | Sewage |
OEM: | Acceptable | Feature: | High Efficiency |
Kw: | Vertical Slurry Sump Pump | ||
Highlight: | vertical sump pump,vertical sewage pump |

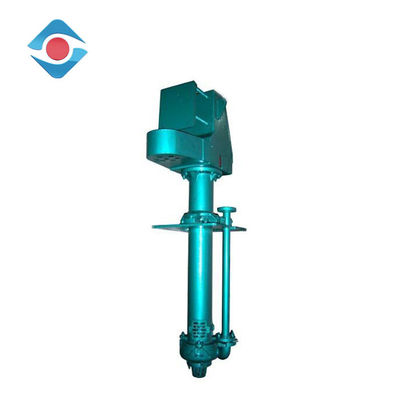

High Efficiency Vertical Slurry Pump Solid Handling Sand Pump 6 ~ 364m³/h Capacity
Parameter Data
![]() | Model: ZJL-series vertical slurry pump |
Discharge Size: 40mm~200mm | |
Inlet Size: 50mm~250mm | |
Capacity: 6 ~ 364m³/h | |
Head: 4 ~ 60 m | |
Maximal Efficiency: 70% | |
NPSH: 1.4m~3.5m | |
Allowable Max Motor Power: 315 kw | |
Impeller | Allowed Max Particle Size: 20 mm |
Vanes: 5/6 | Seal Type: / |
Type: closed/ half open | Pump Weight:up to 3000kg |
Material:Metal (according to working conditions ) | RPM: 1450 r/min |

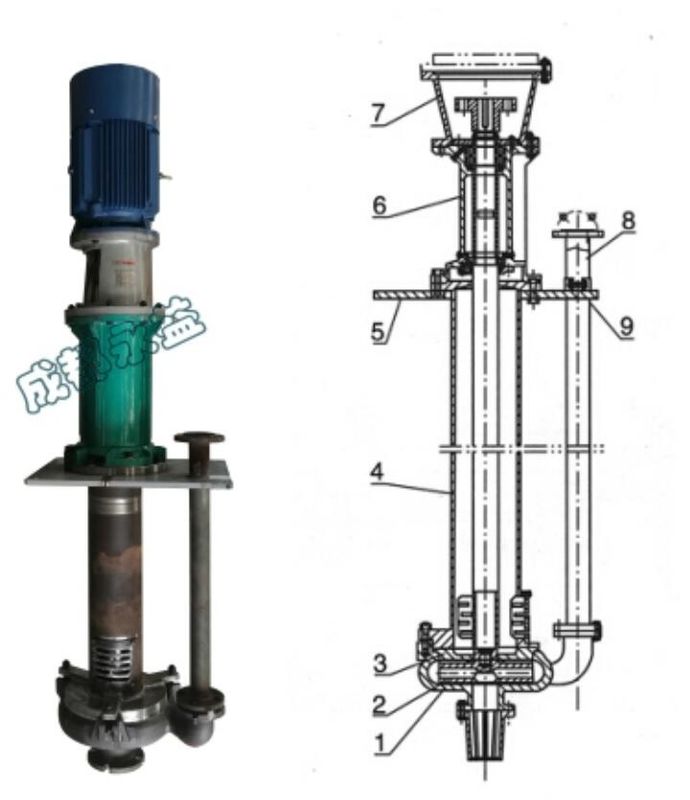

1 | Volute casing | 2 | support | 3 | Motor base |
4 | Impeller | 5 | Left support plate | 6 | Discharge pipe |
7 | Rear liner plate | 8 | Bearing body | 9 | Right support plate |
Application
Transfer of abrasive large particles and high density slurries from sumps and aapits in:
• Mining
• Civil Construction
• Industry
• Coal Preperation
• Mineral Processing
• Chemical Precessing
Product Description
ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.
Pump Features:
1. Wear-resistant metal, the impeller selection of wear-resistant metal or rubber material.
2. PV-SP (R) type sump pump parts, immersed in liquid rubber lining.
3. Different length of the pump drive shaft or inhaled could be selected
4. V-belt drive, direct drive, and flexible coupling.
5. Bearing to lubricate oils.
6. Variable-speed, the best condition in the pump operation.
7. Long service life, run- effective,meet many bad transportation conditions.
Product Picture
Produce Procedure
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
