Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 400 M3/h | Max Head: | 50m |
|---|---|---|---|
| Application: | Caustic, Acid | Warranty: | 12 Months |
| Voltage: | 220V/380V/400V/415V/460V | Theory: | Centrifugal Pump |
| High Light: | chemical resistant pump,carbon fiber pump |
||
High Hardness Carbon Fiber Chemical Pump , 30～400m³/h Horizontal Chemical Caustic Pump
Product Data
|
|
Model: DCS-seriescarbon fiber composite material pump |
|
Discharge Size:40mm~125mm |
|
|
Inlet Size:50mm~150mm |
|
|
Capacity:30～400m³/h |
|
|
Head:15～50m |
|
|
Maximal Efficiency:65% |
|
|
NPSH: 1.4m~3.5m |
|
|
Allowable Max Motor Power:280 kw |
|
|
Impeller |
Allowed Max Particle Size:20 mm |
|
Vanes:5/6 |
Seal Type:mechanical seal/dynamic seal/packing seal |
|
Type:closed/ half open |
Pump Weight:up to 1500kg |
|
Material:Metal (according to working conditions ) |
RPM:1450r/min |
Invention Patent Certification
Technical Parameter
|
Model |
Flow (m³/h) |
Head |
Rotating speed |
Highest efficiency |
NPSHr (m) |
|
50DCS-250 |
30-50 |
15-28 |
1450 |
40 |
1.4 |
|
50DCS-310 |
30-60 |
25-38 |
1450 |
45 |
1.5 |
|
50DCS-350 |
30-60 |
35-50 |
1450 |
43 |
1.8 |
|
65DCS-250 |
50-80 |
15-28 |
1450 |
48 |
1.8 |
|
65DCS-310 |
50-100 |
25-38 |
1450 |
50 |
2.2 |
|
65DCS-350 |
50-100 |
35-50 |
1450 |
55 |
2.2 |
|
80DCS-250 |
70-140 |
15-25 |
1450 |
61 |
2.5 |
|
80DCS-310 |
70-140 |
25-38 |
1450 |
62 |
2.5 |
|
80DCS-350 |
70-160 |
35-50 |
1450 |
63 |
2.8 |
|
100DCS-310 |
100-220 |
20-35 |
1450 |
57 |
2.8 |
|
100DCS-350 |
100-220 |
35-48 |
1450 |
60 |
2.8 |
|
125DCS-310 |
120-250 |
18-33 |
1450 |
62 |
3 |
|
125DCS-350 |
120-290 |
35-48 |
1450 |
62 |
3 |
|
150DCS-310 |
200-400 |
18-33 |
1450 |
64 |
3.5 |
|
150DCS-350 |
200-500 |
25-45 |
1450 |
65 |
3.5 |
Advantage
Comparison to Other Material
A contrast test between carbon fiber composite material and material 2507: under the same condition, medium: F, CI>800ppm, containing 12%sulfuric acid and 30%solid content, and its temperature is 90℃
Metal materials have relatively low corrosion resistance and wear resistance
Metallic overcurrent components not only have chemical corrosion, but also complex electrochemical corrosion.
All kinds of colloidal substances and chemical corrosion products in the medium are attached to the metal overcurrent parts. Due to the difference of the standard electrode potentials, the potential imbalance is formed. The solubility of the dissolved substances changes when the inlet pressure of the pump suddenly decreases. Then there is concentration differential galvanic cell, resulting in electrochemical corrosion. When the quality of the fluid is worse, the phenomenon is more serious.
New carbon fiber compositematerials contain high-performance coupling agents with few free electrons on the surface, so there is no electrochemical corrosion.
New carbon fiber compositematerials has extremely high hardness and has higher wear resistance than bidirectional stainless steel due to SiC
Reduce Maintenance Cost
Seal Types
1. Using the combination in the form of the packing seal and the mechanical seal, packing with high temperature resistant filler material, has a good thermal adaptability.
2. The mechanical seal: a high mechanical strength, good abrasion carbide material, guarantee the sealing performance under high temperature conditions.
3. Polytetrafluoroethylene (PTFE) do lip seal, the sealing performance leap than the rubber sealing reliability increased by 25 times, highly corrosion-resistant.
Application of Scope
Mainly used in industries of chemical industry, petrochemical industry, oil refinery, coal chemical industry, power plant, paper making industry, pharmaceutical industry, sugar industry, food industry, steel plant, waste acid treatment, water supply and drainage, urban water supply, grain deep processing etc.
|
Daily Chemicals |
Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
|
Pharmacy |
Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
|
Chemical Industry |
Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
|
Other Industry |
Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |

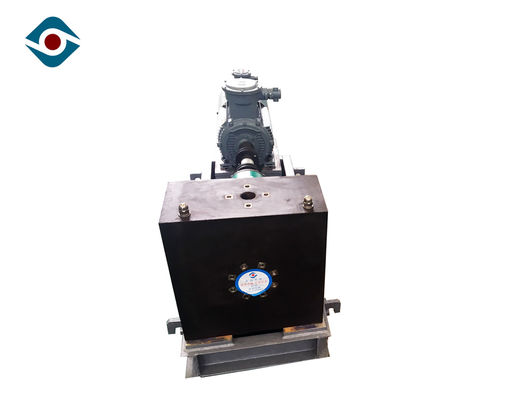

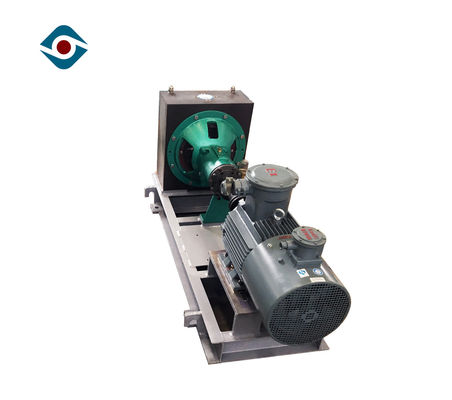

Product Picture
Package
|
1. 15-40 days after you payment. |
|
2. Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping. |
|
3. You may choose our shipping partner or your own partner. |
