| Theory: | Centrifugal Pump | Max Flow: | 1000m3/h |
|---|---|---|---|
| Max Head: | 120m | Pressure: | 1.6MPa |
| Standard Or Nonstandard: | Standard | Name: | High Efficiency Centrifugal Single Stage Horizontal Axially Split Casting Chemical Pump |
| Structure: | Single-stage Pump | Material: | Cast Iron,Cast Iron/stainless Steel,A51),Hi-Cr Alloy(A05 |
| Voltage: | Etc Are All Available | Frequency: | 50hz Or 60hz Are All Available |
| High Light: | horizontal high pressure centrifugal pump,industrial centrifugal pumps |
||

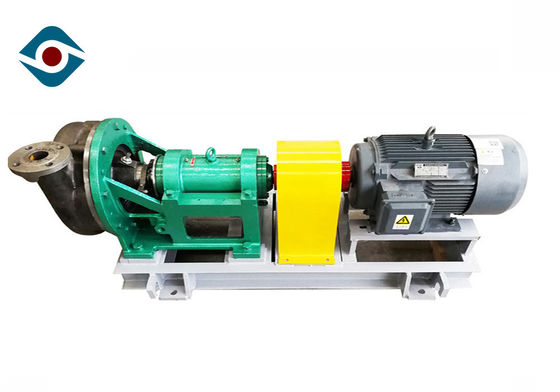

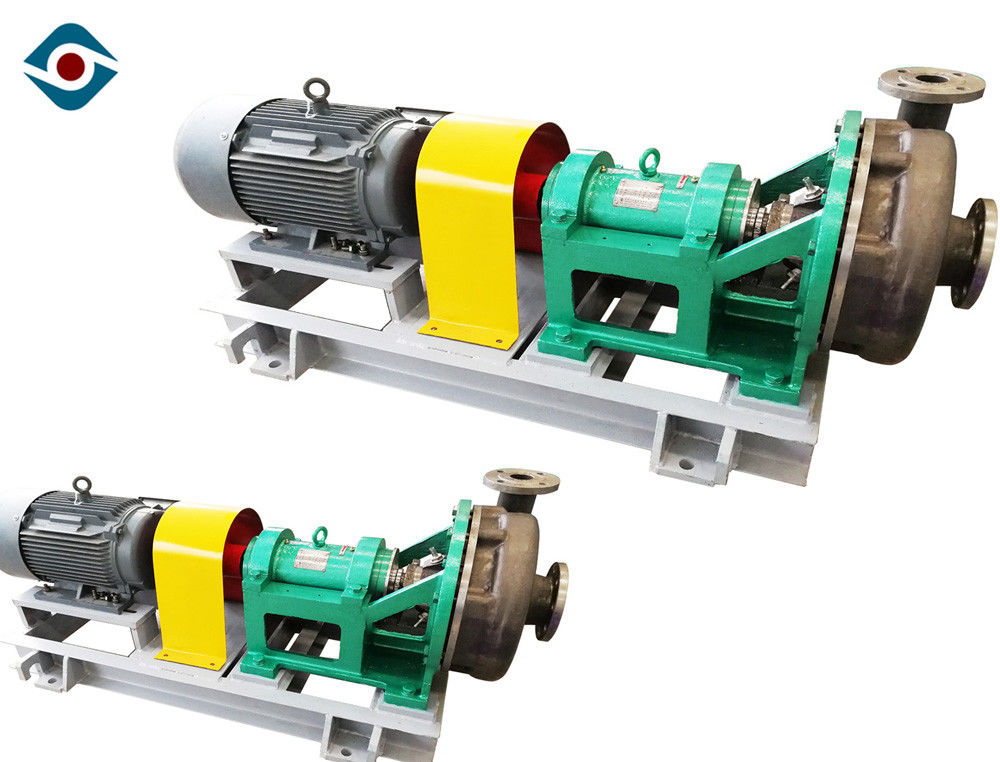

High Speed Horizontal Split Case Centrifugal Pump Corrosion Resistance
Characteristics
Shaft Seal: The shaft seal including packing seal and mechanical seal, and the maximum axis bounce is within 0.05mm.
Performance Data
Capacity: 8 ~ 800 m³/h
Head: 10 ~ 90 m
Maximal Efficiency: 70%
Diameter: 200mm~470mm
NPSH: 1.4m~4.5m
Allowable Max Motor Power: 315 kw
Allowed Max Particle Size: 20 mm
Seal Type: Mechanical seal/ dynamic seal/ packing seal
Pump Weight: up to 3000kg
RPM: 1450 r/min
Material: Metal (according to working conditions )
Structure
Single stage,single suction,cantilever type chemical centrifugal pump.
Both foot mounted and centerline mounted structure are available;Radial split casing.
Bearings are adjustable rotary part installed in the bearing housing.
Pump outlet on one side of casing.
Mechanical seal is adopted as the shaft sealing.
Direct coupled by claw type couplings or flexible couplings.
| *1 | Locking screw | *8 | Vice impeller chamber | 15 | Front bearing cap | 22 | Oil pan | *29 | Sleeve |
| 2 | Gasket | 9 | O-ring | *16 | Front bearing | 23 | Adjustment nut | 30 | Water seal ring |
| *3 | Impeller nut | *10 | Vice impeller | 17 | Bearing body | 24 | Adjustment screw | 31 | Filler |
| 4 | O-ring | *11 | Packing chamber | 18 | Bearing bracket | 25 | Bearing body bracket | 32 | O-ring |
| *5 | Impeller | 12 | O-ring | *19 | Rear bearing | *26 | axis | *33 | keys |
| *6 | Pump body | 13 | Rinse water nozzle | 20 | Rear bearing cover | 27 | Shield cover | ||
| 7 | O-ring | 14 | Water retaining plate | 21 | Key | 28 | Packing gland |
Installation Dimension
Application of Fields
1, all temperature and density of sulfuric acid, nitric acid, hydrochloric acid Phosphoric acid organic acid inorganic acid
2, Sodium carbonate anhydrous Sodium hydroxide on all temperature and density and another alkaline solution
3,all kind salt solution
4,all kind Liquefied Petrochemical products, organic compound and another corrosive raw material and products.
Process
Below is the process of how to make a Competitive Price chemical pumps horizontal centrifugal chemical process pumps, it will help you know the produce process clearly.
