Product Details:
Payment & Shipping Terms:
|
| Max Flow: | 2000 M3/h, 8800US Gpm | Max Head: | 160m, 525ft |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Motor: | According To The Customer's Requests |
| Structure: | Single-stage Pump | Material: | Cast Steel/Cast Iron/Stainless Steel/Alloy Steel Etc |
| NPSH: | 0m~3.5m | Temperature: | Below 180 ℃ |
| High Light: | centrifugal chemical process pumps,industrial process pumps |
||

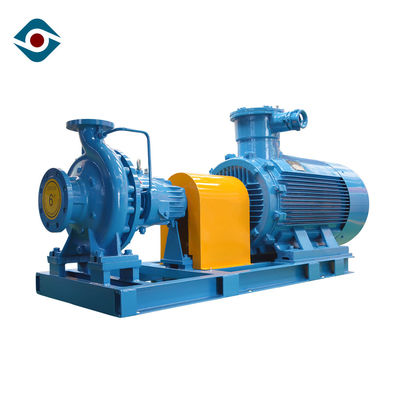

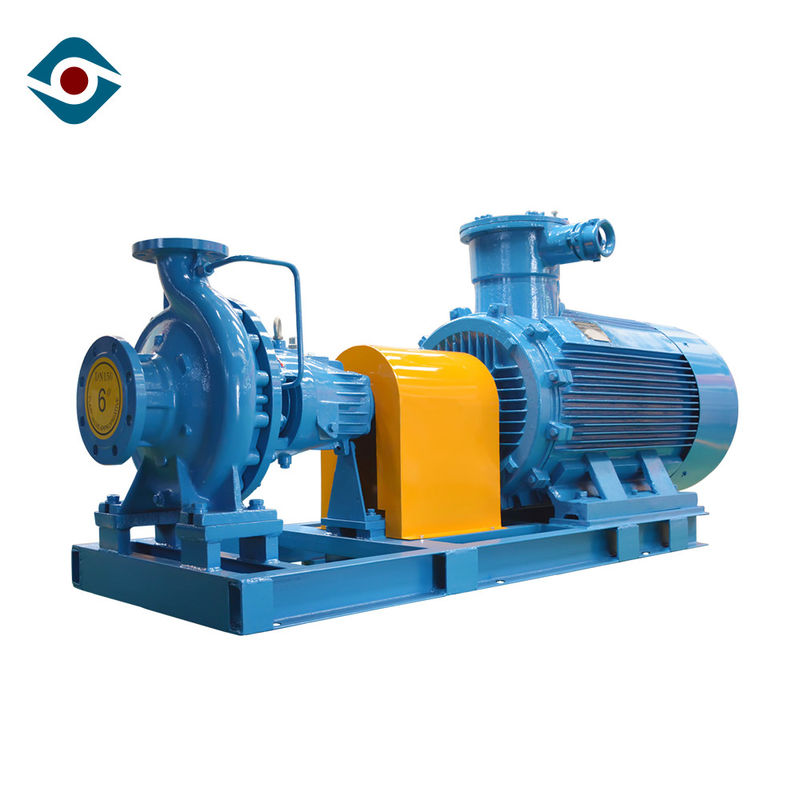

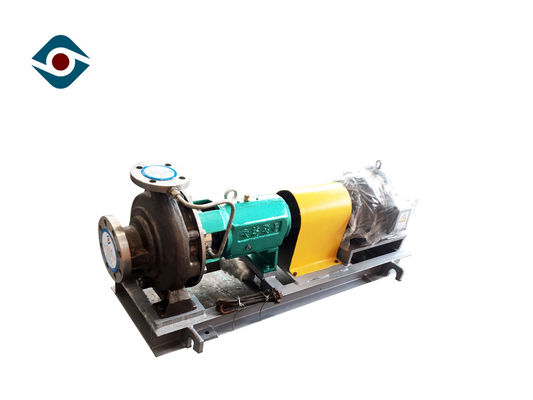

High Viscosity Self Priming Strong Acid Chemical Circulating Pump Customized ISO Standard
Operatiom Data
| Discharge Size: 20mm ~250mm |
| Inlet Size: 32mm~300mm |
| Capacity: 4~2000 m³/h |
| Head: 2~160 m |
| Maximal Efficiency: 65% |
| NPSH: 0m~3.5m |
| Allowable Max Motor Power: 710 kw |
| Vanes: 5/6 |
| Type: closed/ half open |
| Material:Metal (according to working conditions ) |
| Diameter: 200mm~470mm |
| Allowed Max Particle Size: 20mm |
| Material of Liner: Metal (according to working conditions ) |
Application
It’s mainly used to transfer corrosive media containing no suspended particles or those unallowed to be polluted for industrial sectors like petrolem, chemical engineering, synthetic fiber, chemical fertilizer, power station, metallurgy and food
Features
Structure Diagram
Performance Curve
Technical Parameter
| Model | Rated Speed n=2900r/min | Rated Speed n=1450r/min | |||||||||||||
| Impeller |
Capacity Q (m3/h) |
Head H (m) |
ρ=1.00 | ρ=1.84 | Impeller |
Capacity Q (m3/h) |
Head H (m) |
ρ=1.00 | ρ=1.84 | ||||||
| Motor Power and Model | Motor Power and Model | ||||||||||||||
| KW | KW | Kw | Kw | ||||||||||||
| YCZ80/250 | D | 150 | 55 | 37 | 200L2-2 | 75 | 280S-2 | E | 70 | 11 | 5.5 | 132S-4 | 7.5 | 132M-4 | |
| X | 140 | 50 | 30 | 200L1-2 | |||||||||||
| E | 130 | 47 | 55 | 250M-2 | |||||||||||
| YCZ80/315 | A | 200 | 130 | 110 | 315S-2 | 185 | 315L-2 | A | 100 | 32 | 15 | 160L-4 | 30 | 200L-4 | |
| B | 190 | 125 | B | 95 | 30 | ||||||||||
| M | 180 | 120 | 90 | 280M-2 | 160 | 315L1-2 | C | 85 | 24 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| N | 170 | 110 | 75 | 280S-2 | D | 70 | 18 | 7.5 | 132M-4 | 15 | 160L-4 | ||||
| C | 160 | 100 | 132 | 315M-2 | |||||||||||
| X | 150 | 90 | 110 | 315S-2 | |||||||||||
| D | 140 | 80 | 55 | 250M-2 | 90 | 280M-2 | |||||||||
| YCZ80/400 | A | 105 | 52 | 30 | 200L-4 | 55 | 250M-4 | ||||||||
| B | 100 | 50 | 55 | 250M-4 | |||||||||||
| C | 90 | 44 | 45 | 225M-4 | |||||||||||
| D | 80 | 38 | 18.5 | 180M-4 | 37 | 225S-4 | |||||||||
| E | 75 | 30 | 15 | 160L-4 | 30 | 200L-4 | |||||||||
| YCZ100/200 | A | 230 | 45 | 45 | 225M-2 | 75 | 280S-2 | A | 115 | 11 | 7.5 | 132M-4 | 11 | 160M-4 | |
| B | 210 | 40 | 37 | 200L2-2 | 55 | 250M-2 | B | 100 | 10 | 5.5 | 132S-4 | ||||
| C | 180 | 32 | 22 | 180M-2 | 45 | 225M-2 | C | 90 | 8 | 4 | 112M-4 | 7.5 | 132M-4 | ||
| D | 150 | 25 | 37 | 200L2-2 | D | 80 | 6 | 3 | 100L2-4 | 5.5 | 132S-4 | ||||
| YCZ100/250 | A | 280 | 75 | 90 | 280M-2 | 160 | 315L1-2 | A | 130 | 20 | 15 | 160L-4 | 22 | 180L-4 | |
| B | 260 | 70 | 75 | 280S-2 | 132 | 315M-2 | B | 125 | 16 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| M | 240 | 65 | 75 | 280S-2 | 110 | 315S-2 | C | 120 | 14 | 15 | 160L-4 | ||||
| C | 220 | 60 | 55 | 250M-2 | 110 | 315S-2 | D | 100 | 10 | 7.5 | 132M-4 | 11 | 160M-4 | ||
| N | 200 | 52 | 45 | 225M-2 | 90 | 280M-2 | |||||||||
| D | 175 | 45 | 37 | 200L2-2 | 75 | 280S-2 | |||||||||
| YCZ100/315 | A | 270 | 135 | 160 | 315L1-2 | A | 130 | 32 | 22 | 180L-4 | 37 | 225S-4 | |||
| B | 260 | 128 | 132 | 315M-2 | B | 120 | 30 | 18.5 | 180M-4 | 30 | 200L-4 | ||||
| M | 250 | 120 | C | 100 | 26 | 15 | 160L-4 | ||||||||
| N | 230 | 112 | 110 | 315S-2 | 185 | 315L-2 | D | 90 | 21 | 11 | 160M-4 | 18.5 | 180M-4 | ||
| C | 220 | 105 | |||||||||||||
| X | 210 | 95 | 90 | 280M-2 | 160 | 315L1-2 | |||||||||
| D | 190 | 85 | 75 | 280S-2 | 132 | 315M-2 | |||||||||
Service
Pre-sales Service
1.We can help you select equipment model and design resonable and complete production line flow according to clients's requirements and budget.
2.Welcome to do the sample testing in our factory.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.
After-Sales Service
1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.
3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and repair the machine,train the operators and technical personnel and meet some other requirements if you need on site.
5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
