Product Details:
Payment & Shipping Terms:
|
Theory: | Centrifugal | Flow: | Max 2000m3/h |
---|---|---|---|
Head: | Max 160m, | Frequency: | 50hz Or 60hz |
Type: | Horizontal Centrifugal | Voltage: | 220 To 440V |
Material: | Cast Steel/Cast Iron/Stainless Steel/Alloy Steel Etc | ||
Highlight: | industrial process pumps,chemical transfer pumps |

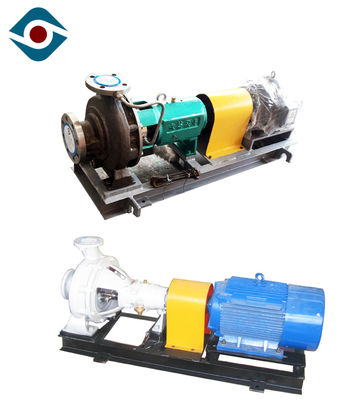

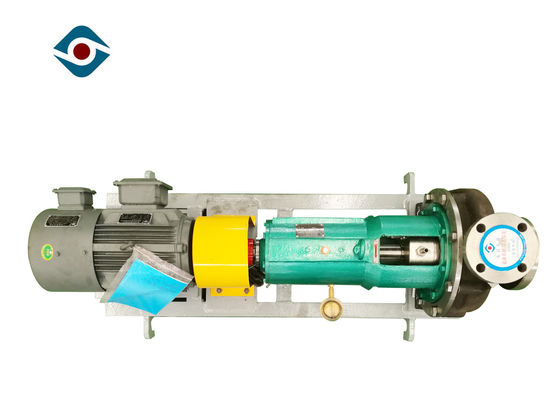

Horizontal Cantilever Industrial Process Pumps Positive Displacement Pump for High Degree Chemical
Product Introduction
1. YCZ-series pumps have advanced hydraulic model, high efficiency and good anti-cavitation properties. With a high degree of standardization&wide universality and mounting dimension which is in accordance with standard IS03661,CZseries pumpsareemployed universally in global industry.
2. In the fields of chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply , CZ-series pumpsare suitable to convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.
Operation Data
Discharge Size: 20mm ~250mm
Inlet Size: 32mm~300mm
Capacity: 4~2000m³/h
Head: 2~160m
Maximal Efficiency: 65%
NPSH: 0m~3.5m
Allowable Max Motor Power: 710 KW
Allowed Max Particle Size: 20mm
Seal Type: mechanical seal/dynamic seal/packing seal
RPM: 1450r/min~2900r/min
Material of Liner Metal: (according to working conditions)
Product Features
1. The structure is safe and reliable, the operation of the pump is stable.
2 The pump have high average efficiency, low energy consumption, is the ideal choice for energy-saving products.
3. The pump has very broad performance range. Flow rate (Q) can be up to 2000m3 / h, head (H) can be up to 160m, and the flow and the head of pump are closely spaced, which provided the convenience for user to select pump.
4. The axial force of the series pump was balanced by wearing ring and balance hole, residual axial force was born by thrust bearing.
5. Cooling type of bearing has air cooling, fan cooling, water-cooling, the three types can be selected depending on the temperature of the pump. Fan cooling is particularly suitable for no water or poor water quality in some region.
6. High degree of standardization, good commonality, reduce largely inventory of user spare parts.
7. The hydraulic components of pump select material refined, according to working conditions, what material to choose is completely determined by the user.
Scope of Application
In refineries, petrochemical industry, coal processing and low temperature engineering.
In chemical industry, fiber and general processing industries, particularly in paper and pulp industries, sugar industry.
In water industry, particularly seawater desalination plants.
In heating and air-conditioning.
In fossil and nuclear power - stations.
Condition protective project.
In ship and offshore industries.
Model and Parameter
Model |
Rated Speed n=2900r/min |
Rated Speedn=1450r/min |
|||||||||||||
Impeller |
Flow Q (m3/h) |
Head H(m) |
Relative Density ρ=1.00 |
Relative Density ρ=1.84 |
Impeller |
Flow (m3/h) |
Head H(m) |
Relative Density ρ=1.00 |
Relative Density ρ=1.84 |
||||||
Motor Power and Model |
Motor Power and Model |
||||||||||||||
Kw |
|
Kw |
|
Kw |
|
Kw |
|
||||||||
YCZ80 /250 |
D |
150 |
55 |
37 |
200L2-2 |
75 |
280S-2 |
E |
70 |
11 |
5.5 |
132S-4 |
7.5 |
132M-4 |
|
X |
140 |
50 |
30 |
200L1-2 |
|
|
|
|
|
|
|
||||
E |
130 |
47 |
55 |
250M-2 |
|
|
|
|
|
|
|
||||
YCZ80 /315 |
A |
200 |
130 |
110 |
315S-2 |
185 |
315L-2 |
A |
100 |
32 |
15 |
160L-4 |
30 |
200L-4 |
|
B |
190 |
125 |
B |
95 |
30 |
||||||||||
M |
180 |
120 |
90 |
280M-2 |
160 |
315L1-2 |
C |
85 |
24 |
11 |
160M-4 |
18.5 |
180M-4 |
||
N |
170 |
110 |
75 |
280S-2 |
D |
70 |
18 |
7.5 |
132M-4 |
15 |
160L-4 |
||||
C |
160 |
100 |
132 |
315M-2 |
|
|
|
|
|
|
|
||||
X |
150 |
90 |
110 |
315S-2 |
|
|
|
|
|
|
|
||||
D |
140 |
80 |
55 |
250M-2 |
90 |
280M-2 |
|
|
|
|
|
|
|
||
YCZ80 /400 |
|
|
|
|
|
|
|
A |
105 |
52 |
30 |
200L-4 |
55 |
250M-4 |
|
|
|
|
|
|
|
|
B |
100 |
50 |
55 |
250M-4 |
||||
|
|
|
|
|
|
|
C |
90 |
44 |
45 |
225M-4 |
||||
|
|
|
|
|
|
|
D |
80 |
38 |
18.5 |
180M-4 |
37 |
225S-4 |
||
|
|
|
|
|
|
|
E |
75 |
30 |
15 |
160L-4 |
30 |
200L-4 |
||
YCZ100 /200 |
A |
230 |
45 |
45 |
225M-2 |
75 |
280S-2 |
A |
115 |
11 |
7.5 |
132M-4 |
11 |
160M-4 |
|
B |
210 |
40 |
37 |
200L2-2 |
55 |
250M-2 |
B |
100 |
10 |
5.5 |
132S-4 |
||||
C |
180 |
32 |
22 |
180M-2 |
45 |
225M-2 |
C |
90 |
8 |
4 |
112M-4 |
7.5 |
132M-4 |
||
D |
150 |
25 |
37 |
200L2-2 |
D |
80 |
6 |
3 |
100L2-4 |
5.5 |
132S-4 |
||||
YCZ100 /250 |
A |
280 |
75 |
90 |
280M-2 |
160 |
315L1-2 |
A |
130 |
20 |
15 |
160L-4 |
22 |
180L-4 |
|
B |
260 |
70 |
75 |
280S-2 |
132 |
315M-2 |
B |
125 |
16 |
11 |
160M-4 |
18.5 |
180M-4 |
||
M |
240 |
65 |
75 |
280S-2 |
110 |
315S-2 |
C |
120 |
14 |
15 |
160L-4 |
||||
C |
220 |
60 |
55 |
250M-2 |
110 |
315S-2 |
D |
100 |
10 |
7.5 |
132M-4 |
11 |
160M-4 |
||
N |
200 |
52 |
45 |
225M-2 |
90 |
280M-2 |
|
|
|
|
|
|
|
||
D |
175 |
45 |
37 |
200L2-2 |
75 |
280S-2 |
|
|
|
|
|
|
|
||
YCZ100 /315 |
A |
270 |
135 |
160 |
315L1-2 |
|
|
A |
130 |
32 |
22 |
180L-4 |
37 |
225S-4 |
|
B |
260 |
128 |
132 |
315M-2 |
|
|
B |
120 |
30 |
18.5 |
180M-4 |
30 |
200L-4 |
||
M |
250 |
120 |
|
|
C |
100 |
26 |
15 |
160L-4 |
||||||
N |
230 |
112 |
110 |
315S-2 |
185 |
315L-2 |
D |
90 |
21 |
11 |
160M-4 |
18.5 |
180M-4 |
||
C |
220 |
105 |
|
|
|
|
|
|
|
||||||
X |
210 |
95 |
90 |
280M-2 |
160 |
315L1-2 |
|
|
|
|
|
|
|
||
D |
190 |
85 |
75 |
280S-2 |
132 |
315M-2 |
Package
MOQ | 1 Set |
OEM | Acceptable |
Payment | L/C,T/T,Western Union |
Supply Ability | 20 Sets/Week |
Packaging | Packed in wooden cases or according to customer's requirements |
Delivery Time | 20~40 working days or according to the order quantity |
Shipping | Sea, rail or air transport |
