Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance

China Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance supplier
Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance supplier Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance supplier

Large Image :  Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance

Product Details:

Place of Origin: Sichuan
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: DCS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD500-5000/set
Packaging Details: Export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 Sets/Month
Detailed Product Description
Material: New Carbon Fiber Composite Material Theory: Centrifugal Pump
Max Flow: 400 M3/h Max Head: 50m
Voltage: 380V Warranty: One Year
Power: 160KW Temperature: High Temperature
Highlight:

corrosion resistant pumps

,

chemical resistant pump

Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance

Product Description

The new carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). This material, based on carbon fiber and silicon carbide, with US imported special cross-linking agent, is made by chemically reacting at high temperature, and has extreme high corrosion resistance and wear resistance. The hardness of silicon carbide is almost as high as that of the diamond, so it has excellent wear resistance. Carbon fiber can improve the toughness of material to meet the flexural performance.


 Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance


Technical Parameter



Model

Flow

(m³/h)

Head
(m)

Rotating speed
(r/min)

Highest efficiency
(%)

NPSHr

(m)

50DCS-250

30-50

15-28

1450

40

1.4

50DCS-310

30-60

25-38

1450

45

1.5

50DCS-350

30-60

35-50

1450

43

1.8

65DCS-250

50-80

15-28

1450

48

1.8

65DCS-310

50-100

25-38

1450

50

2.2

65DCS-350

50-100

35-50

1450

55

2.2

80DCS-250

70-140

15-25

1450

61

2.5

80DCS-310

70-140

25-38

1450

62

2.5

80DCS-350

70-160

35-50

1450

63

2.8

100DCS-310

100-220

20-35

1450

57

2.8

100DCS-350

100-220

35-48

1450

60

2.8

125DCS-310

120-250

18-33

1450

62

3

125DCS-350

120-290

35-48

1450

62

3

150DCS-310

200-400

18-33

1450

64

3.5

150DCS-350

200-500

25-45

1450

65

3.5



Application of Scope



Mainly used in industries of chemical industry, petrochemical industry, oil refinery, coal chemical industry, power plant, paper making industry, pharmaceutical industry, sugar industry, food industry, steel plant, waste acid treatment, water supply and drainage, urban water supply, grain deep processing etc.



Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance



Advantage



Comparison to Other Material



A contrast test between carbon fiber composite material and material 2507: under the same condition, medium: F, CI>800ppm, containing 12%sulfuric acid and 30%solid content, and its temperature is 90℃



Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance



1) Metal materials have relatively low corrosion resistance and wear resistance



2) Metallic overcurrent components not only have chemical corrosion, but also complex electrochemical corrosion.

3) All kinds of colloidal substances and chemical corrosion products in the medium are attached to the metal overcurrent parts. Due to the difference of the standard electrode potentials, the potential imbalance is formed. The solubility of the dissolved substances changes when the inlet pressure of the pump suddenly decreases. Then there is concentration differential galvanic cell, resulting in electrochemical corrosion. When the quality of the fluid is worse, the phenomenon is more serious.

4) New carbon fiber composite materials contain high-performance coupling agents with few free electrons on the surface, so there is no electrochemical corrosion.

5) New carbon fiber composite materials has extremely high hardness and has higher wear resistance than bidirectional stainless steel due to SiC


Pump Design Feature



Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance

  • Single-stage single suction horizontal centrifugal pump
  • Closed impeller, twisted blades, all heavy-duty design, ensure the good hydraulic performance
  • The single-end mechanical seal adopts an external structure to ensure that all parts in contact with the liquid are non-metallic materials.
  • Special impeller positioning method can ensure the safety of the impeller, and It is very easy to assemble and disassemble
  • Flow passage components are all made of new carbon fiber composite materials
  • The bearing box structure and the movable rotor component ensure the pump always runs at the best condition

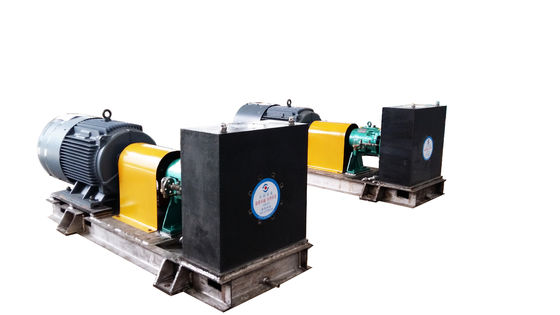

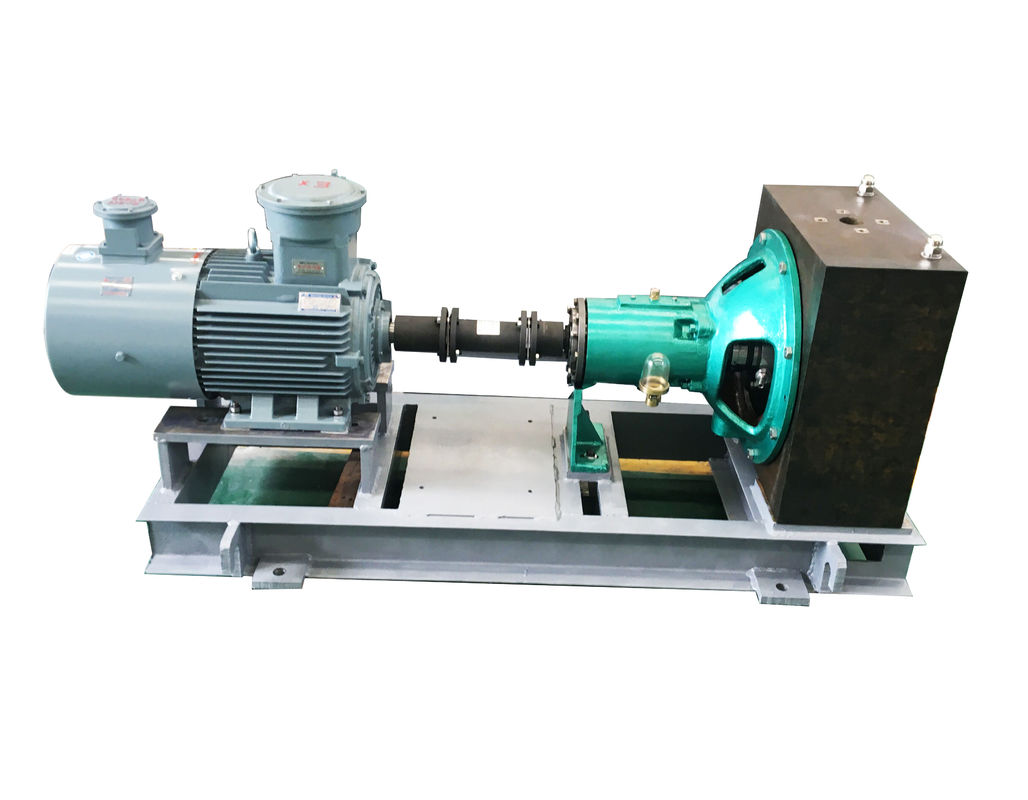

Product Picture

Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance
