Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V

China Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V supplier
Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V supplier Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V supplier

Large Image :  Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V

Product Details:

Place of Origin: SIchuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 Sets/Month
Contact Now
Detailed Product Description
Theory: Axial Flow Pump Flow: 500-13000m3/h
Head: 2-8m DN: 300-1100mm
Voltage: 380V/Customized Warranty: 1 Year
Color: Customized Structure: Single-stage Pump
High Light:

axial flow propeller pumps

,

horizontal axial flow propeller pump

Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V



Product Features



  • Single-stage cantilever pump

  • Pump body: supported from its middle

  • Packing seal mechanical seal all available

  • The impeller cooperates with the suction short pipe, and when the medium is abrasive, just replace the impeller and the suction short pipe, thereby improving the service life.

  • The impeller can be reversed to change the flow direction of the medium.



Data Range



Material Cast iron or stainless steel
Color Blue and adjustable
Drive Belt or coupling
Seal Soft packing seal or mechanical seal
Speed 2900r/min,1450r/min
Theory Centrifugal pump
Structure Single stage pump
Power Electric
Standard or Nonstandard Standard
Outlet diameter 300mm~1300mm
Capacity 800~13000m³/h
Head 2~8m
Warranty 1 year
Certificate ISO9001



Technical Parameter



ZW-series Horizontal Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW

1 ZW300 800-1000 2-8 600-1450 40-50
2 ZW350 800-1200 2-6 600-1450 40-55
3 ZW400 1000-2000 2-8 600-1000 45-60
4 ZW500 1500-3200 2-7 570-980 50-65
5 ZW600 2000-3500 2-7 300-750 50-65
6 ZW700 3000-6000 2-7 300-600 60-70
7 ZW760 4000-7600 2-6 300-600 60-70
8 ZW820 5000-9000 2-5 200-500 60-73
9 ZW1100 8000-13000 2-6.5 200-475 65-75


ZL-series Vertical Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW

1 ZL300 500-800 2-8 600-1450 40-50
2 ZL350 550-1000 2-8 600-1450 40-55
3 Zl400 600-1600 2-8 600-1000 45-60
4 ZL500 1200-2200 2-6 570-750 50-65
5 ZL600 2000-3000 2-6 300-750 50-65
6 ZL700 3000-6000 1-5 300-600 60-70
7 ZL800 5000-9000 1-5 200-500 60-73
8 ZL950 6000-11000 1-4 200-500 60-77
9 ZL1050 8000-12000 1-4 100-400 64-77
10 ZL1300 9000-15000 1-3 100-300 65-78





Material Choose



We offer CD4MCu, Cr30, 304, 304L, 316L, 904L(UB-6), 20# and some other materials for you to choose.



Industry Station Impeller and Suction Short Pipe Material
phosphorous fertilizer industry flashing station Cr30
phosphoric acid concentration station 904L
Other Industries concentrated cycle station CD4MCu, Cr30, 304, 304L, 316, 316L, 904L (UB-6), 20# alloy and other materials

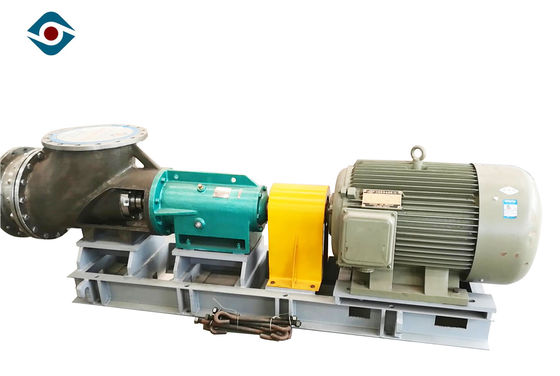

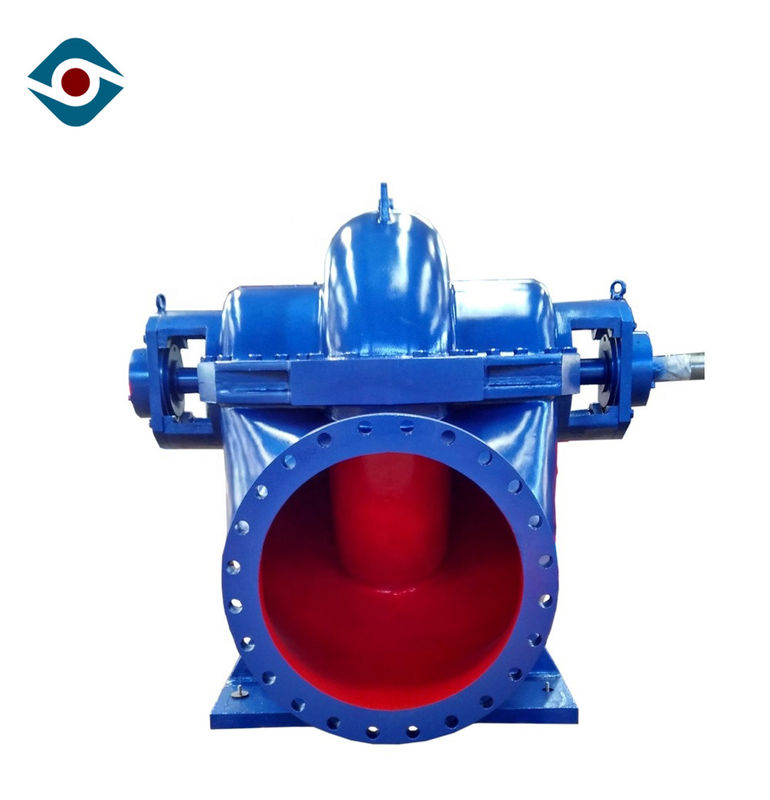

Product Picture

Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V

Horizontal Split Case Axial Flow Centrifugal Pump High Pressure Large Flow 380V


Our Service



* Delivery

 Electric pump 20-40 workdays



* Warranty

1 year for the pump body, 3 months for the flow parts.



* Payment Term

1. Usually is 30% T/T as deposit, 70% balance T/T before delivering.

2.L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal



* Trade Term

1. EXW

2. FOB Shanghai/Ningbo

3. CIF or CFR + Your Destination Port



* Packaging

-Free Fumigation Export Case for centrifugal pump and complete set



* Shipping

- By sea

- By Experss(UPS/DHL/FedEx)

- By air
