Product Details:
Payment & Shipping Terms:
|
| Theory: | Mix Flow Pump | Flow: | 200-6500m3/h |
|---|---|---|---|
| Head: | 8-25m | Impeller: | Closed/ Semi Open |
| Brand: | Chengdu Yongyi | Pressure: | 1.6MPa |
| Flange: | Customized | Condition: | New |
| Name: | Flue Gas Desulphurization Pump | ||
| High Light: | mixed flow centrifugal pump,radial flow pump |
||
Industrial Electric Motor Chemical Horizontal Volute Mixed Flow Industrial Pump 6500m3/h Anti Chemical Pump
Features
1. Advanced computer simulation analysis technology, the pump has excellent performance and high reliability and stability.
2. YYTL-series pump has the features of simple structure, convenient maintenance and reliable operation.
3. Meets the wear-resistance and corrosion resistance requirements of slurry for conveying different media conditions.
4. Rotor component axially movable
Performance Data
|
Discharge Size |
Inlet Size |
Capacity |
Head |
Maximal Efficiency |
RPM |
|
200mm~800mm |
250mm~900mm |
200-6500 m³/h |
8-25 m |
90.2% |
1450 r/min |
Technical Parameter
| Model |
flow (m³/h) |
Head (m) |
Speed (r/min) |
Maximum efficiency (%) |
NPSH(NPSHr) m |
Allowable maximum motor power(KW) |
Net weight (kg) |
| 350YYTL-24 | 1280 | 25.2 | 740 | 75 | 6.5 | 200 | 3200 |
| 1600 | 24 | 80 | |||||
| 1920 | 22.3 | 81 | |||||
| 350YYTL-10 | 640 | 11.2 | 490 | 72 | 3.4 | 55 | 3200 |
| 960 | 10.2 | 78 | |||||
| 1060 | 9.1 | 79 | |||||
| 400YYTL-24 | 1760 | 25.5 | 740 | 80 | 6.8 | 280 | 3500 |
| 2200 | 24 | 82 | |||||
| 2640 | 22 | 83 | |||||
| 400YYTL-10 | 1160 | 11.3 | 490 | 78 | 3.2 | 75 | 3500 |
| 1450 | 10.5 | 80 | |||||
| 1740 | 9.4 | 81 | |||||
| 500YYTL-24 | 2800 | 25.8 | 590 | 82 | 7.1 | 450 | 4500 |
| 3500 | 25 | 85 | |||||
| 4200 | 21.6 | 86 | |||||
| 500YYTL-16 | 2320 | 18.2 | 490 | 82 | 3.8 | 75 | 4500 |
| 2900 | 16.5 | 85 | |||||
| 3480 | 14.8 | 86 | |||||
| 600YYTL-24 | 4500 | 25.5 | 590 | 83 | 8.0 | 710 | 6000 |
| 5500 | 24 | 87 | |||||
| 6500 | 22 | 88 | |||||
| 600YYTL-16 | 3737 | 17.6 | 490 | 83 | 5.5 | 400 | 6000 |
| 4568 | 16.6 | 87 | |||||
| 5400 | 15 | 88 | |||||
| 700YYTL-24 | 6400 | 25.5 | 490 | 84 | 8.0 | 1000 | 8000 |
| 8000 | 24 | 88.5 | |||||
| 9600 | 21.5 | 89.5 | |||||
| 700YYTL-18 | 5550 | 19.2 | 425 | 84 | 6.1 | 630 | 8000 |
| 6940 | 18 | 88.5 | |||||
| 8327 | 16.2 | 89.5 | |||||
| 800YYTL-24 | 8250 | 27 | 490 | 87.5 | 9.6 | 1250 | 8800 |
| 10500 | 24 | 89.5 | |||||
| 12000 | 21.3 | 87.5 | |||||
| 800YYTL-18 | 7156 | 20.3 | 425 | 87.5 | 7.2 | 800 | 8800 |
| 9100 | 18.1 | 89.5 | |||||
| 10400 | 16 | 87.5 | |||||
| 900YYTL-24 | 12000 | 26 | 370 | 86 | 8.3 | 1800 | 11400 |
| 15000 | 24 | 90 | |||||
| 18000 | 21.5 | 90.2 | |||||
| 900YYTL-19 | 10700 | 20.7 | 330 | 86 | 6.6 | 1250 | 11400 |
| 13380 | 19.1 | 90 | |||||
| 16050 | 17.1 | 90.2 |
Transfer Method
|
Direct connection: |
The pump and motor are directly connected to the motor through a long diaphragm flexible coupling. |
|
Belt drive: |
Change the speed to adjust the pump performance through the V-belt drive. |
|
Reducer: |
Reduce speed through reducer, suitable for high power pump |

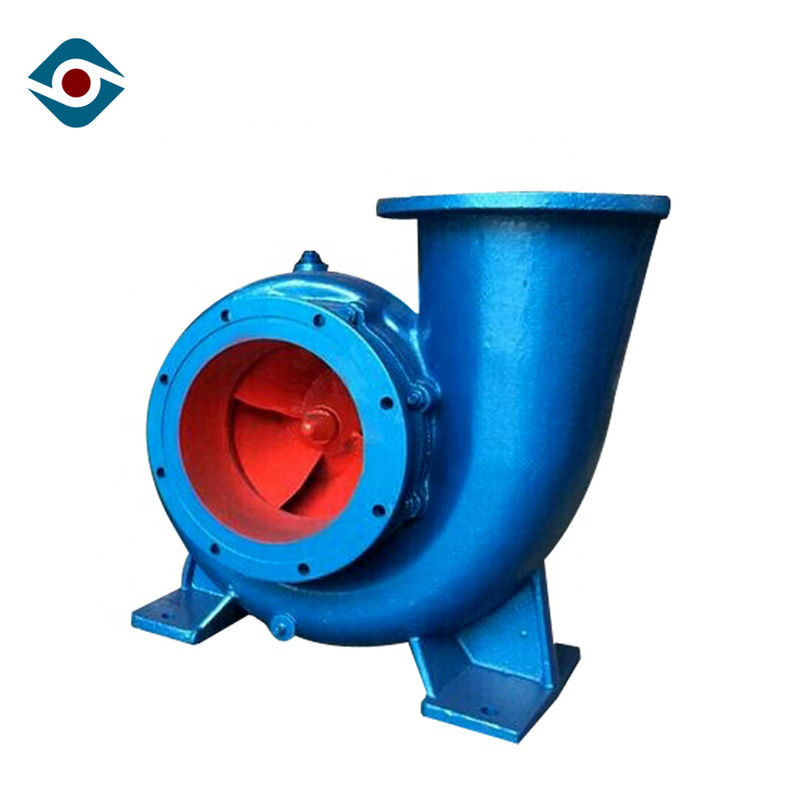

Product Picture
Why choose us:
1.Professional electric chemical pump set manufacturer
2.Decade years of manufacturing and exporting experience
3.Adopt International quality standards, to guanantee the quality
