Theory: | Axial Flow Pump | Flow: | 500-13000m3/h |
---|---|---|---|
Head: | 2-8m | DN: | 300-1100mm |
Voltage: | 380V/Customized | Warranty: | 1 Year |
Color: | Customized | Structure: | Single-stage Pump |
Highlight: | horizontal axial flow propeller pump,axial flow centrifugal pump |

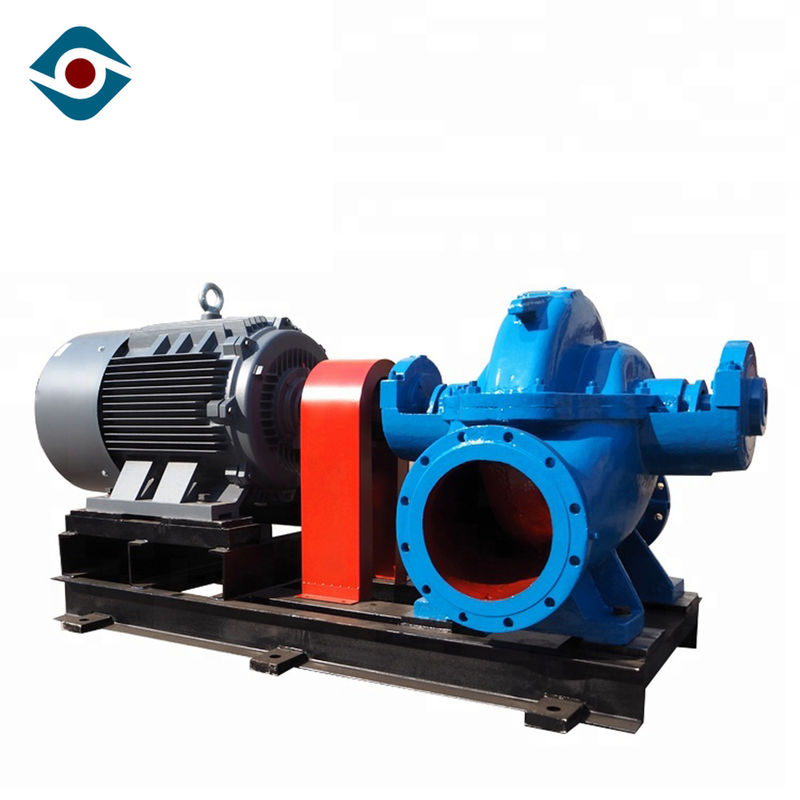

Large Capacity Horizontal Submersible Axial Flow Pump High Efficiency Single Suction
Product Desription
ZW-series chemical axial flow pump is single-stage cantilever pump. It adopts front-open door structure. This structure is very simple and convenient for maintaining, because pump body and pipeline are not needed to be disassembled. Pump body is supported from its middle; alignment of rotor is good; packing seal is adopted, when specially required, mechanical seal can be adopted for seal. Impeller and suction nozzle match very well. When transferringabrasive materials, the only thing need to do is to change impeller and suction nozzle. In this way, the service life of pump body is increased.
Technical Parameter
ZW-series Horizontal Axial Flow Pump
No. | Model |
Flow m3/h |
Head m |
Rotating speed r/min |
Motor Power KW |
1 | ZW300 | 800-1000 | 2-8 | 600-1450 | 40-50 |
2 | ZW350 | 800-1200 | 2-6 | 600-1450 | 40-55 |
3 | ZW400 | 1000-2000 | 2-8 | 600-1000 | 45-60 |
4 | ZW500 | 1500-3200 | 2-7 | 570-980 | 50-65 |
5 | ZW600 | 2000-3500 | 2-7 | 300-750 | 50-65 |
6 | ZW700 | 3000-6000 | 2-7 | 300-600 | 60-70 |
7 | ZW760 | 4000-7600 | 2-6 | 300-600 | 60-70 |
8 | ZW820 | 5000-9000 | 2-5 | 200-500 | 60-73 |
9 | ZW1100 | 8000-13000 | 2-6.5 | 200-475 | 65-75 |
ZL-series Vertical Axial Flow Pump
No. | Model |
Flow m3/h |
Head m |
Rotating speed r/min |
Motor Power KW |
1 | ZL300 | 500-800 | 2-8 | 600-1450 | 40-50 |
2 | ZL350 | 550-1000 | 2-8 | 600-1450 | 40-55 |
3 | Zl400 | 600-1600 | 2-8 | 600-1000 | 45-60 |
4 | ZL500 | 1200-2200 | 2-6 | 570-750 | 50-65 |
5 | ZL600 | 2000-3000 | 2-6 | 300-750 | 50-65 |
6 | ZL700 | 3000-6000 | 1-5 | 300-600 | 60-70 |
7 | ZL800 | 5000-9000 | 1-5 | 200-500 | 60-73 |
8 | ZL950 | 6000-11000 | 1-4 | 200-500 | 60-77 |
9 | ZL1050 | 8000-12000 | 1-4 | 100-400 | 64-77 |
10 | ZL1300 | 9000-15000 | 1-3 | 100-300 | 65-78 |
Structure
1 | Impeller nut | 8 | Packing room | 15 | coupling | 22 | framework oil seal | 29 | filler |
2 | Sealing cover | 9 | Bearing base | 16 | coupling | 23 | Lower bearing upper cover | 30 | Sealing cover |
3 | joint | 10 | framework oil seal | 17 | motor | 24 | Lower bearing lower cover | 31 | impeller |
4 | sheath | 11 | lower bearing | 18 | Round nut | 25 | Packing cover | ||
5 | shaft | 12 | base | 19 | upper bearing cover | 26 | nozzle | ||
6 | sleeve | 13 | Motor base | 20 | upper bearing | 27 | Water seal ring | ||
7 | Pump body | 14 | Oil pointer | 21 | Bearing case | 28 | Pump cover |
Features
1) Adopting excellent hydraulic model abroad and adopting advanced computer simulation analysis technology (Pro/E, CFD and other software platforms), the pump has excellent performance and high reliability and stability. It adopts foot support, cantilever rotor, excellent hydraulic structure, advanced shaft seal form, low speed type operation, not only the pump runs smoothly, but also the reliability is high. This type of pump has high efficiency, high efficiency zone and good anti-cavitation performance.
2) Fully absorb the advantages of axial flow pumps home and abroad, ZW-series axial pump has the feature of simple structure, convenient maintenance and reliable operation.
3) The material selection of the pump over-current component is reasonable. The material has long service life and meet the wear-resisting and corrosion-resistant requirements of the slurry for conveying different media conditions.
4) The shaft seal adopts two kinds of seal forms: packing seal and mechanical seal, which is convenient for the user to select the appropriate shaft seal form according to the actual situation.
Material Choose
We offer CD4MCu, Cr30, 304, 304L, 316L, 904L(UB-6), 20# and some other materials for you to choose.
Industry | Station | Impeller and Suction Short Pipe Material |
phosphorous fertilizer industry | flashing station | Cr30 |
phosphoric acid concentration station | 904L | |
Other Industries | concentrated cycle station | CD4MCu, Cr30, 304, 304L, 316, 316L, 904L (UB-6), 20# alloy and other materials |

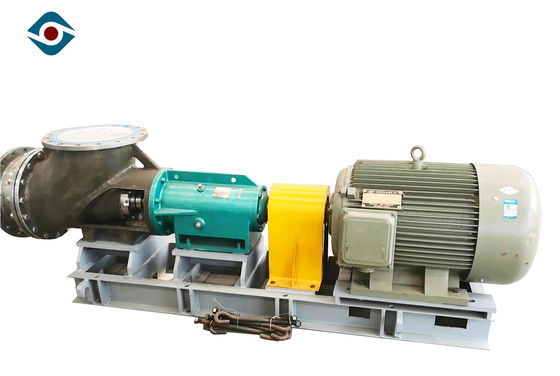

Product Picture
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
