Product Details:
Payment & Shipping Terms:
|
Fumigation: | Vortex | Flow: | 8~800m3 / H |
---|---|---|---|
Head: | 10~50m | Speed: | 1500rpm |
Pump Protection: | IP44/IP54 | Power: | 250KW |
Temperature: | -50℃-130℃ | ||
Highlight: | vortex impeller submersible pumps,peripheral impeller pump |

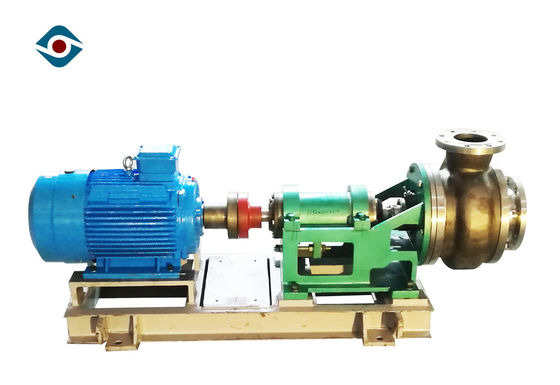

Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump
Features
♦ The center line of outlet is supported by a cantilever. The large-flow high-lift pump body adopts double volute with small radial force and dynamic winding small, the pump runs smoothly,
♦ Heavy-duty shaft design adopts cylindrical roller and a set of angular contact bearings, which can bear larger radial load and axial load, and strengthen the overall rigidity of the pump shaft. At the same time, the impeller does the check and correction of static balance. The pump runs with low vibration, low noise, which is very beneficial to the service life of shaft seals and bearings
♦ The axial force of XWD vortex pump is dry structure design. The impeller is fixed on the shaft by the impeller nut and sleeve. There is an O-ring between the impeller nut and the impeller, the impeller and the bushing. Under normal working condition, the pump shaft does not touch the medium and is not corroded by the medium, which improves the safety and reliability of the pump operation.
Parameter Range
► Model:XWD-series vortex pump |
► Pressure:1.6MPa |
► Capacity: 8~750m³/h |
► Head:15~60m |
► Maximal Efficiency: 69% |
► Pump Weight:up to 1500kg |
► RPM:1450r/min |
► Motor Power: 250KW |
► Temperature: -50℃-130℃ |
Technical Parameter
Model |
Clean Water Performance | ||||
Flow (m³/h) |
Head (m) |
Rotating Speed (r/min) |
Efficiency (%) |
NPSHr (m) |
|
40XWD-250 | 8-20 | 15-27 | 1450 | 29 | 2.4 |
40XWD-315 | 10-30 | 25-40 | 1450 | 32 | 2.6 |
50XWD-250 | 30-50 | 15-28 | 1450 | 35 | 2.5 |
50XWD-315 | 30-50 | 25-40 | 1450 | 35 | 2.6 |
50XWD-400 | 30-50 | 38-60 | 1450 | 32 | 2.8 |
65XWD-250 | 50-80 | 15-25 | 1450 | 38 | 2.2 |
65XWD-315 | 50-80 | 25-40 | 1450 | 40 | 2.4 |
65XWD-400 | 50-80 | 38-60 | 1450 | 37 | 2.6 |
80XWD-250 | 80-120 | 15-25 | 1450 | 45 | 2.6 |
80XWD-315 | 80-120 | 22-38 | 1450 | 46 | 2.7 |
80XWD-400 | 80-120 | 35-55 | 1450 | 47 | 2.9 |
100XWD-250 | 120-180 | 10-20 | 1450 | 51 | 2.7 |
100XWD-315 | 120-180 | 18-35 | 1450 | 52 | 2.8 |
100XWD-400 | 120-180 | 35-50 | 1450 | 54 | 2.8 |
125XWD-250 | 180-250 | 10-20 | 1450 | 55 | 2.9 |
125XWD-315 | 180-250 | 18-35 | 1450 | 57 | 3.1 |
125XWD-400 | 180-250 | 35-50 | 1450 | 60 | 3.2 |
150XWD-315 | 250-350 | 20-35 | 1450 | 62 | 3.2 |
150XWD-400 | 250-350 | 32-50 | 1450 | 65 | 3.2 |
300XWD-315 | 350-650 | 20-30 | 1450 | 65 | 3.3 |
200XWD-400 | 650-650 | 28-45 | 1450 | 67 | 3.3 |
250XWD-400 | 450-750 | 28-45 | 1450 | 69 | 3.3 |
Pumping Medium
Chemical Industry |
Nitric acid, sulfuric acid, hydrochloric acid and phosphoric acid etc |
Pharmacy |
Nutrition Liquid, Biological Products etc |
Other Industry |
Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
Packing
Fumigation Free Quality Export Wooden Box
