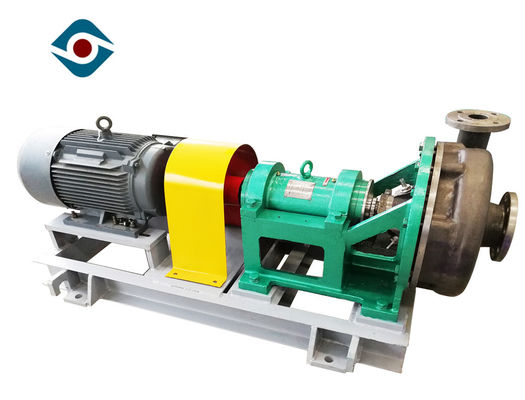

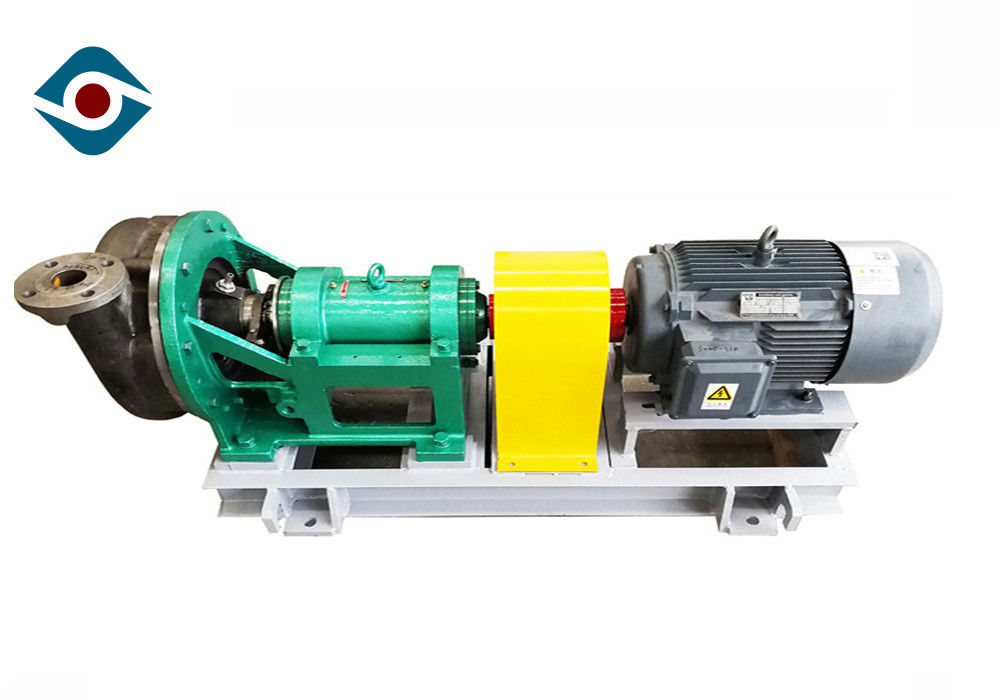

Long Life Corrosive Liquid Industrial Chemical Pumps With Dynamic Seal

New Design Corrosive Liquid Chemical Processing Pump with Dynamic Seal

Product Description

WD-series pumps are horizontal corrosion-resistant centrifugal pumps, with spacious impeller flow channel and superior hydraulic performance. The back shroud of impeller is equipped with back blade, which can reduce media leakage. In order to recover pump’s performance when flow passage components are worn and corroded, axial adjusting device is equipped to adjust the space between impeller and pump body. Variable types of shaft seal (including mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal) are adopted to meet the shaft sealing requirements for carrying variable media


Performance Data

Application Fields:

1) Organic and inorganic acids such as nitric acid, sulfuric acid, hydrochloric acid and phosphoric acid.
2) Sodium hydroxide or sodium carbonate, etc. alkaline solution.
3) Salt solution.
4) Liquid petrochemical products, organic compounds and other corrosive raw materials and products.

Structure Feature

1. Shaft seals can be mechanical seals or vice impeller + packing dynamic seal

2. Radial split, rear door, single stage single suction volute centrifugal pump

4. The volute of the pump is a suction end, a tangential outlet, and a cantilever support structure.

5. The bearing body is lubricated with grease or oil


Main Feature

1. Highest resistance to corrosion
2. Standard and block design
3. Available in various designs and sizes
4. High efficiency
5. Virtually maintenance-free
6. Very maintenance-friendly thanks to the use of fewer parts with the most straightforward design
7. Virtually free of any shaft deflection

Installation Dimension
