Theory: | Centrifugal Pump | Flow: | 4 ~ 3000 M³/h |
---|---|---|---|
Head: | 10 ~ 130 M | Structure: | Single-stage |
Speed: | 1450rpm | Material: | Chrome Alloy |
Product Name: | Sludge Slurry Pump For Sale | Voltage: | 380V Or Higher |
Highlight: | horizontal centrifugal slurry pump,centrifugal mud pump |

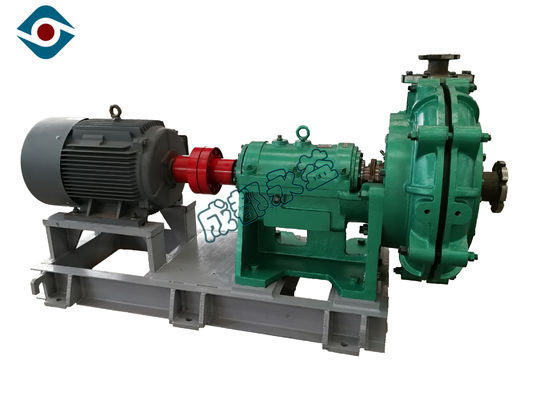

Long Life Horizontal Slurry Pump Heavy Duty Mud Pump for Mining Industry
Product Description

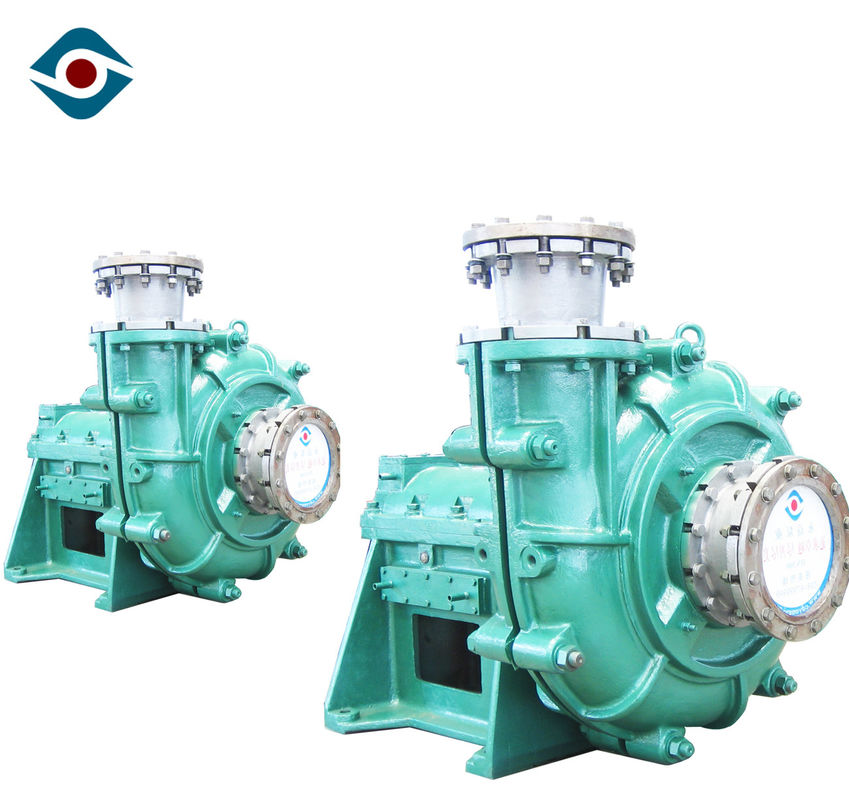

ZJ-series is single stage single-suction cantilever centrifugal slurry pump.
ZJ-series slurry pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.
Geometrical shape of its flow passage components is suitable for flow condition of medium.
Technical Data
Parameter
Model | Clear Water Performance | ||||
Flow Q
|
Head | Rotating speed n | Shaft power (Pa) | Effectiveness η | |
(m³/h) | m | r/min | kw | % | |
300ZJ(G)-I-A | 704-2333 | 30.6-80 | 490-980 | 135-505 | 66-81 |
250ZJ(G)-I-A | 405-1480 | 29.1-128.7 | 730-980 | 58.3-652 | 54-76.9 |
200ZJ(G)-I-A | 256-976 | 28-133.7 | 730-980 | 60.3-448.1 | 50-79.6 |
150ZJ(G)-I-A | 164-600 | 19.4-91.2 | 730-980 | 15.8-161.5 | 46.1-74.6 |
100ZJ(G)-I-A | 86-360 | 16-100.2 | 980-1480 | 6.7-105.5 | 58.7-70.4 |
80ZJ(G)-I-A | 60-242 | 15.7-109.8 | 980-1480 | 5.5-115.9 | 38.8-66.7 |
65ZJ(G)-I-A | 28-69 | 11.2-34.8 | 960-1460 | 1.7-10.8 | 54.2-63.5 |
50ZJ(G)-I-A | 31-111 | 34.3-110.7 | 970-1480 | 9.7-66.9 | 12.2-45.1 |
40ZJ(G)-I-A | 9-23 | 9.1-44.6 | 1400-2900 | 0.3-4.7 | 33.2-52.4 |
Design Details
Large capacity bearings can withstand high loads including thrust and longer bearing life
Impeller and liner are enhanced and can perform better.
liner can move axially to minimise front impeller gap to reduce wear.
Interchangeable anti-corrosive wet parts are made customized elastomer materials, easy to maintain.
Standard seal is used in ZJ-series slurry pump, which has strong shock resistance characteristic.
Application
The centrifugal slurry pump is used to transport solid and liquid that can be widely used to the deparments of metallurgy, mine, coal, electric power, chemical&industry, food, sewage treatment and channel dredging, etc. we can use these pumps in industry field like: Alumina, asbestos, bauxite, biulding products, cement, wolfram&scheelite, water & sewage utilities, copper, electric, iron ore, lead&zinc, mineral sands, sugar,tin, oil shale, paper&pulp and tobacco.
Installation Dimension
Single base
Sharing Base
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
