| Flow: | 4-2040m3/h | Head: | 2-300m |
|---|---|---|---|
| Impeller: | Closed | Warranty: | 1 Year |
| Material: | Metal | Feature: | Less Noise |
| Highlight: | centrifugal chemical pump,pumps used in chemical industry |
||

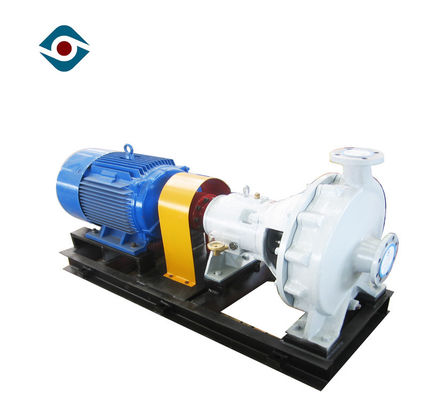

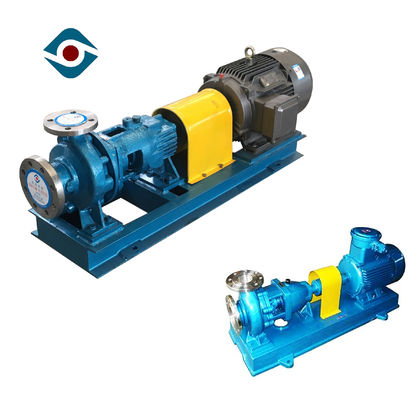

Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal
Pump Structure
Pump seal a variety of structural forms, the most commonly used is built-in unbalanced single-ended mechanical seal. According to the working conditions, can also use the external, unbalanced or double-sided mechanical seal. Flushing cooling method can be flushing or flushing, you can also install additional sealing device. On the suspended particles or less corrosive media, can also choose to use soft packing seal (flushing or flushing).
Structure Diagram
102.00 | pump body | 161.00 | pump cover | 183.00 | Support foot |
210.00 | shaft | 230.00 | impeller | 320.00 | Antifriction bearing |
320.01 | Antifriction bearing | 330.00 | Bearing bracket | 360.00 | Bearing cover |
360.01 | Bearing cover | 400.00 | Flat gasket | 400.01 | Flat gasket |
412.00 | O ring | 412.01 | O ring | 433.00 | Mechanical seal |
433.01 | Mechanical seal | 471.00 | Sealing cover | 471.01 | Sealing cover |
502.00 | Casing wear ring | 502.01 | Casing wear ring | 502.02 | Casing wear ring |
503.00 | Impeller wear ring | 503.01 | Impeller wear ring | 507.00 | deflrctor |
507.01 | deflector | 524.00 | sleeve | 524.01 | sleeve |
638.00 | Constant-level-oiler | 644.00 | Lubricating ring | 673.00 | Vent filter |
710.00 | pipe | 915.00 | Threaded insert | 922.00 | Impeller nut |
923.00 | Bearing nut | 932.00 | circlip |
