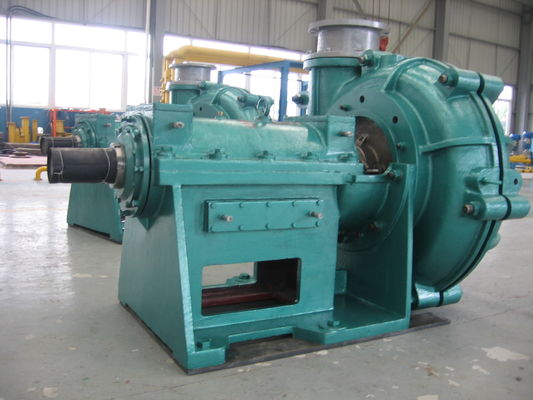

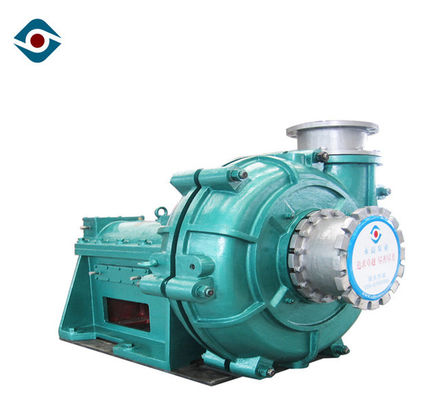

Metal ZJ High Pressure Slurry Pump Horizontal Split Case with Interchangeable Spare Parts

Metal ZJ High Pressure Slurry Pump Horizontal Split Case with Interchangeable Spare Parts

Product Description

ZJ-series pumps are single-stage heavy duty slurry pumps, with easily-replaceable wear parts and re-adjustable wear plate. ZJ pumps adopt advanced design, with only metal linings, and is very widely used for abrasive applications. The pump is energy saving and cost reducing, the pump has advanced water conservancy,so the efficiency is higher than other pumps.

Details

• 1. Support frame:main part for supporting flow parts,connect with bearing plates on the two sides to form bearing assembly.
• 2. Pump casing:connect with support frame by 6 bolts,can rotate in 60°gap according to needs,impeller,protecting plate,pump cover installed inside,material is abrasion resistant,the impeller,pump casing and pump cover of this pump are same as 6PNL-30 vertical mud sand pump.
• 3. Split type pump casing with long pump cover(flat pump cover and long pump cover).one body pump casing is available also.
• 4. Shaft seal box:installed outside of protecting plate,seal assembly installed in it,it joints shaft sleeve,lubricating it with grease through grease fitting to prolong life time.

Application

Sludge and Solids

Sand and Aggregate

Mining Industries

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Minerals Processing

Aggregate Processing

Specification Data

Discharge Size:20mm~350mm

NPSH:0m~3m
Inlet Size:32mm~400mm

Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h

Seal Type:step-down dynamic seal
Head:10 ~ 130 m

Pump Weight:up to 3000kg
Maximal Efficiency:70%

RPM:1450 r/min
