No Clog Industrial Chemical Pumps Low Pressure Self Priming Anti Corrosive

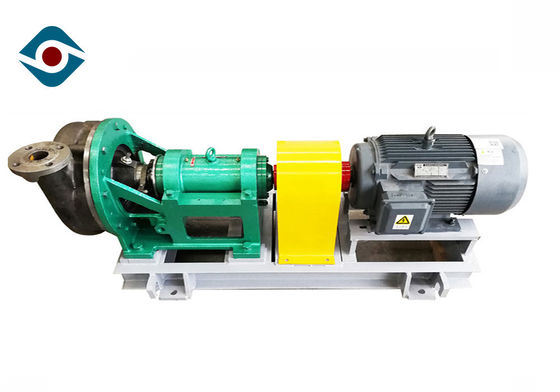

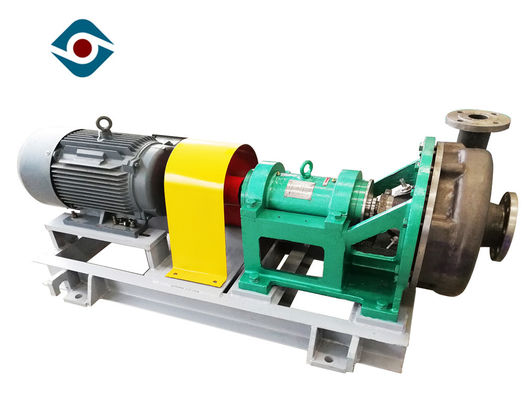

Large Image : No Clog Industrial Chemical Pumps Low Pressure Self Priming Anti Corrosive

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Chengdu Yongyi
Certification:	ISO9001
Model Number:	WD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 500-5000/set
Packaging Details:	free fumigation export wooden box packaging
Delivery Time:	25 working days after receiveing advance payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Flow:	8-1000m3/h	Max Head:	120m
Min Head:	10m	Temperature:	-20° C To 150° C
Product Name:	Anti Corrosive Chemical Pump	Appearance:	Customized
Keywords:	Industrial Chemical Pumps	Seal Type:	Selectable
High Light:	high pressure chemical pump , electric chemical pump

No Clog Industrial Chemical Pumps Low Pressure Self Priming Anti Corrosive

Product Description

The WD-series chemical pump is the world’s hevy duty new standard pump. A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The WD-series chemical pump is designed to provide excellent wear resistance feature because of the prudent selection of materail, depending on the medium. With spacious impeller flow channel, no clog will happen.

Material Of Construction

Graded Grey Cast Iron Carbon Steel ( Wcb)
Alloy Steel Cf8
Cf8m Cf3
Cf3m(Ss-316l) Alloy 20
Cd4mcu. Nickle Ni-Alloys
Ni-Resist 2-1nicl
R55 Hastelloy- B/C
Gun Metal/Bronze

Structure

No Clog Industrial Chemical Pumps Low Pressure Self Priming Anti Corrosive

*1	Locking screw	*8	Vice impeller chamber	15	Front bearing cap	22	Oil pan	*29	Sleeve
2	Gasket	9	O-ring	*16	Front bearing	23	Adjustment nut	30	Water seal ring
*3	Impeller nut	*10	Vice impeller	17	Bearing body	24	Adjustment screw	31	Filler
4	O-ring	*11	Packing chamber	18	Bearing bracket	25	Bearing body bracket	32	O-ring
*5	Impeller	12	O-ring	*19	Rear bearing	*26	axis	*33	keys
*6	Pump body	13	Rinse water nozzle	20	Rear bearing cover	27	Shield cover
7	O-ring	14	Water retaining plate	21	Key	28	Packing gland
