Product Details:
Payment & Shipping Terms:
|
| Capacity Rate: | 4-2040 M3 / H | Head Range: | 2-300m |
|---|---|---|---|
| Pressure: | Customs Requirement | Material: | Cast Iron/SS304/Requirement |
| Feature: | High Efficiency/Long Life/Eco-Friendly/High Flow/Low Noise | Drive Rating: | Up To 200KW |
| High Light: | centrifugal chemical pump,pumps used in chemical industry |
||

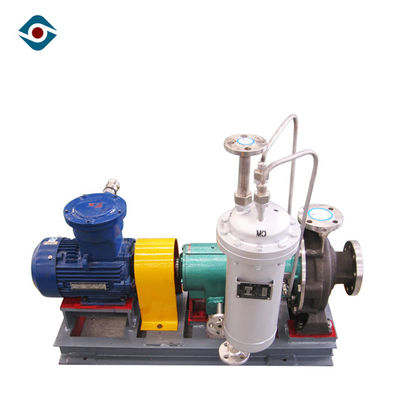

Open Type Impeller Closed Coupled Chemical Process Pump Liquid Acid with Mechanical Seal
Applications
The ZA-series chemical pump is excellently suited to pumping mediums in chemical industry, electroplating plants, metallurgical industries, steel and stainless steel pickling lines, evaporation and regeneration units and pulp and paper industry.
Liquid
| 1. acid, alkali, |
| 2. salt solution, |
| 3. strong oxidant, |
| 4. organic solvents, |
| 5. corrosive slurries, solvents, |
| 6. hydrocarbons and other strong corrosive medium, |
| 7. ammonia water ion film caustic soda, |
Specification Data
1. Pump Capacity: up to 2040m3/h
2. Total Head: up to 300m
3. Operating Temperature:-80℃~+450℃
4. Pressure: up to 5MPa
Structure Feature
It is a single-stage, horizontal cantilever centrifugal pump, the pump body is a foot support.
The pump body is center support. Single suction radial impeller, axial suction, radial discharge
The standard pipe is designed according to API610 Standard, and the rated pressure of the suction pipe flange and the discharge pipe flange are the same
Material
| Material | Characteristic | Other Option |
| Special duplex stainless steel F33 |
Abrasion Resistant>CD4MCu Corrosion Resistant>FCr30 |
304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc. |
Mechanical Seal
The mechanical seal, specifically developed for horizontal chemical pump, ensures maximum operating reliability and a long service life while being easy to assemble and repair. The main construction material of the mechanical seal have better corrosion and wear resistance.
Shaft Seal
Flouroplastics-coated stainless steel
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
