Product Details:
Payment & Shipping Terms:
|
| Material: | New Carbon Fiber Composite Material | Max Flow: | 400 M3/h |
|---|---|---|---|
| Max Head: | 50m | Feature: | High Corrosion Resistance Material |
| Structure: | Single-stage Pump | Temperature: | Below 150 ℃ |
| Rpm: | 1450 | ||
| High Light: | corrosion resistant pumps,carbon fiber pump |
||
Higher Chemical Resistance Self-priming Composite Material Industial Pump for Transferring Chemicals
Product Description
The new carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). This material, based on carbon fiber and silicon carbide, with US imported special cross-linking agent, is made by chemically reacting at high temperature, and has extreme high corrosion resistance and wear resistance. The hardness of silicon carbide is almost as high as that of the diamond, so it has excellent wear resistance. Carbon fiber can improve the toughness of material to meet the flexural performance.
Technical Parameter
|
Model |
Flow (m³/h) |
Head |
Rotating speed |
Highest efficiency |
NPSHr (m) |
|
50DCS-250 |
30-50 |
15-28 |
1450 |
40 |
1.4 |
|
50DCS-310 |
30-60 |
25-38 |
1450 |
45 |
1.5 |
|
50DCS-350 |
30-60 |
35-50 |
1450 |
43 |
1.8 |
|
65DCS-250 |
50-80 |
15-28 |
1450 |
48 |
1.8 |
|
65DCS-310 |
50-100 |
25-38 |
1450 |
50 |
2.2 |
|
65DCS-350 |
50-100 |
35-50 |
1450 |
55 |
2.2 |
|
80DCS-250 |
70-140 |
15-25 |
1450 |
61 |
2.5 |
|
80DCS-310 |
70-140 |
25-38 |
1450 |
62 |
2.5 |
|
80DCS-350 |
70-160 |
35-50 |
1450 |
63 |
2.8 |
|
100DCS-310 |
100-220 |
20-35 |
1450 |
57 |
2.8 |
|
100DCS-350 |
100-220 |
35-48 |
1450 |
60 |
2.8 |
|
125DCS-310 |
120-250 |
18-33 |
1450 |
62 |
3 |
|
125DCS-350 |
120-290 |
35-48 |
1450 |
62 |
3 |
|
150DCS-310 |
200-400 |
18-33 |
1450 |
64 |
3.5 |
|
150DCS-350 |
200-500 |
25-45 |
1450 |
65 |
3.5 |
Pump Choosen
The pump choosen is depend on the medium that the pump transfer. Various kinds of materials can choosen, such as cast iron, stainless steel, PTFE, polypropylene, and more. if the medium is acid solution or alkaline solution or any other liquid may cause corrosion, we will choose material that chemical resistance, in order to prolomg the service life. If the medium contains solid, it may cause abrasion, and we will choose hign-strength material that abrasion resistance, so you don't need to change wet part frequantly.
Structure
Advantage
| Metal Materials: | New Carbon Fiber Composite Materials: |
|
|

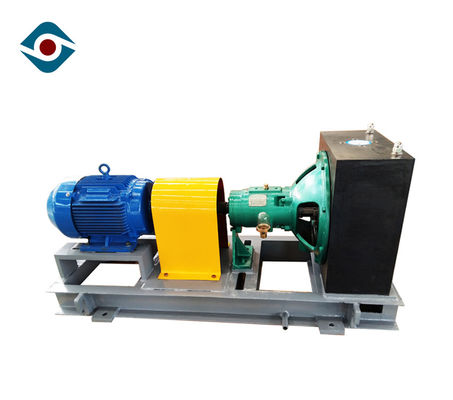

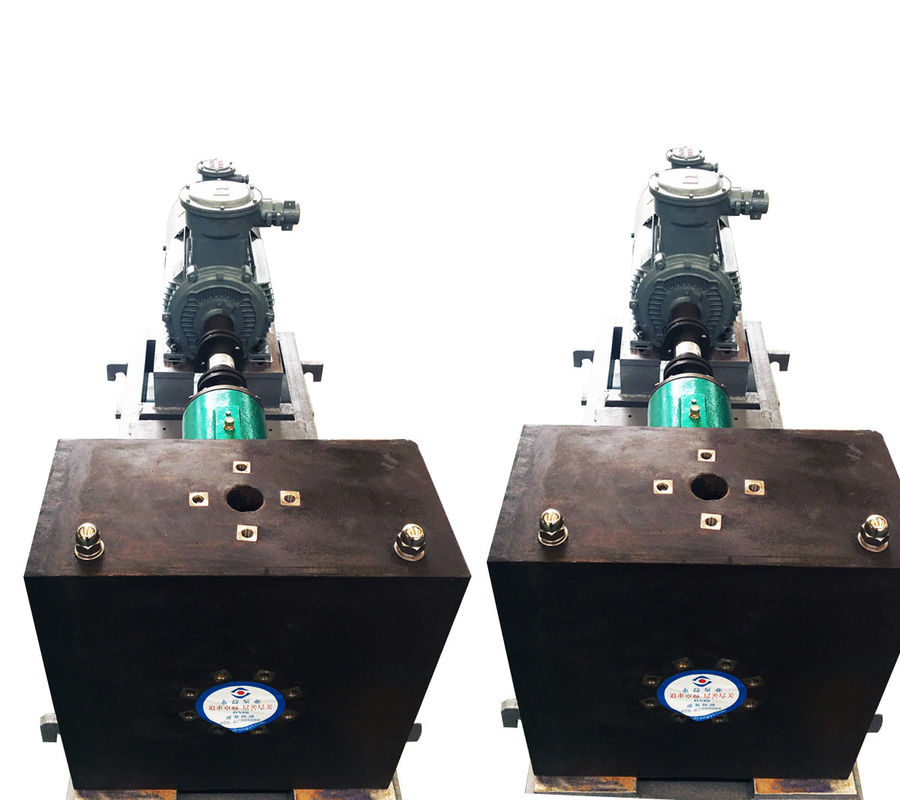

Product Picture
