Product Details:
Payment & Shipping Terms:
|
| Type: | Multi Type | Material: | Stainless Steel |
|---|---|---|---|
| Condition: | New | Brand: | Chengdu Yongyi |
| Dimension: | ≤5430x5800 | Operating Type: | Continuous Operating |
| Mixer Type: | Agitator | ||
| Highlight: | chemical agitator,stainless steel agitator |
||
2019 Hot Sale Chemical Energy-saving Agitator for Paper Pulp Rotary Industrial Agitator
Product Description
Our company can supply agitators of almost 20 classes and 50 types in total, from the most common types (standard agitators which are in accordance with HB5, SB90, HG/T3796.1~12-2005 standard) to customized types (non-standard agitators which meet production process requirements from customers).
Technical Parameter
DBP Type Bubble-removing Agitator
This type of agitator is used to remove the large amount of foam on the surface. With low-middle speed, snake-like grid paddle rotates to destroy bubbles. In this way, the increasing of bubbles is under control. This kind of stirrer is widely used in fermentation tank, and it’s useful to remove bubbles.
Application conditions: Dj / D = 0.35-0.75; Applicable viscosity is commonly less than 2000cp; commonly-used linear velocity is 2-15m / s.
Dimensions
| Dj | D | d1,h | Φ1 | Φ2 | B | b |
weight (kg) |
| 470 | 40 | 75 | 18 | 4 | 75 | 35 | 2.5 |
| 570 | 45 | 80 | 18 | 4 | 90 | 35 | 3 |
| 660 | 50 | 85 | 25 | 4 | 105 | 40 | 3.6 |
| 760 | 55 | 90 | 25 | 6 | 120 | 40 | 4.6 |
| 850 | 60 | 100 | 32 | 6 | 135 | 50 | 6.5 |
| 950 | 65 | 105 | 32 | 6 | 150 | 50 | 7.5 |
| 1140 | 70 | 110 | 38 | 8 | 180 | 60 | 10.5 |
| 1340 | 80 | 130 | 38 | 8 | 210 | 60 | 15 |
| 1530 | 90 | 150 | 45 | 8 | 240 | 70 | 21 |
| 1730 | 100 | 160 | 45 | 10 | 270 | 70 | 26.5 |
| 1930 | 110 | 180 | 54 | 10 | 300 | 80 | 37 |
| 2120 | 120 | 190 | 54 | 10 | 330 | 80 | 42 |
| 2320 | 130 | 200 | 60 | 12 | 360 | 90 | 51 |
| 2520 | 140 | 210 | 70 | 12 | 390 | 90 | 61 |
| 2710 | 150 | 220 | 76 | 14 | 420 | 100 | 73 |
| 3050 | 160 | 240 | 89 | 14 | 470 | 100 | 98.5 |
| 3440 | 170 | 250 | 108 | 16 | 530 | 100 | 127 |

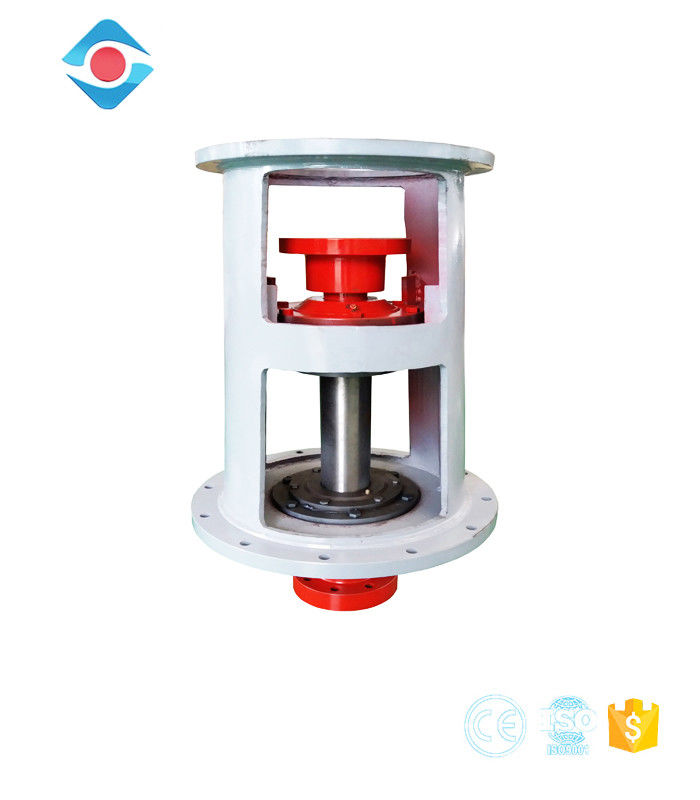

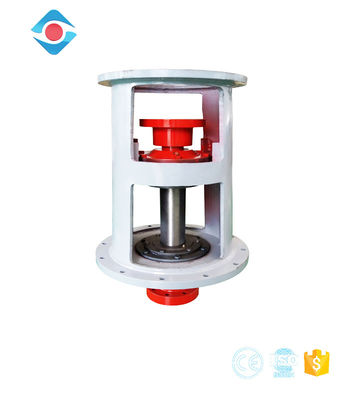

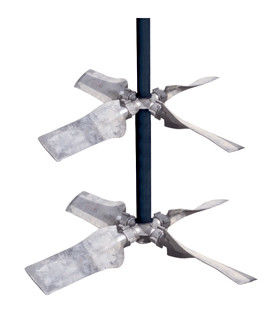

Product Picture
Service
Door to door shipping service,
Best and timely service for each customer’s order,
Guaranteed with the reliable quality and after-sale service.
If any query, please feel free to contact with us.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
