Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump

China Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump supplier
Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump supplier Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump supplier

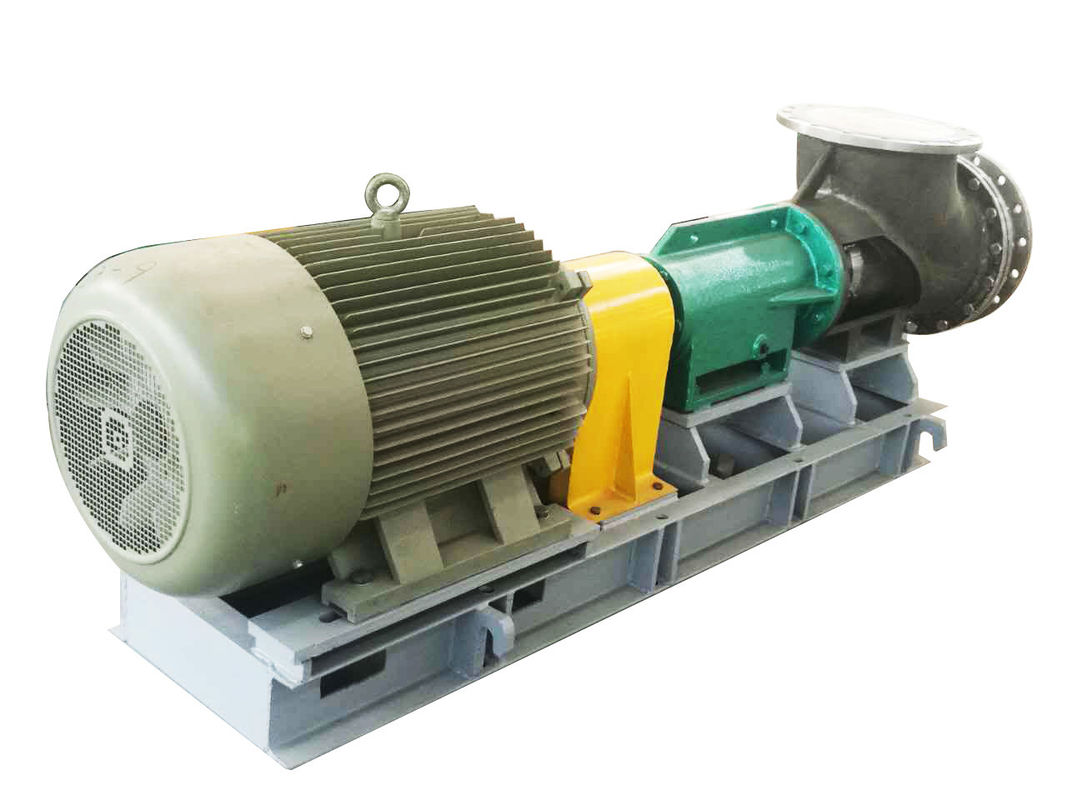

Large Image :  Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump

Product Details:

Place of Origin: SIchuan, China
Brand Name: Chengdu Yongyi
Certification: ISO9001
Model Number: ZW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: free fumigation export wooden box packaging
Delivery Time: 25 working days after receiveing advance payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 300 Sets/Month
Contact Now
Detailed Product Description
Theory: Axial Flow Pump Max Flow: 13000m3/h
Max Head: 8m Voltage: 380V/Customized
Warranty: 1 Year Color: Customized
Standard Or Nonstandard: Standard Material: Cast Iron Or Stainless Steel
Frequency: 50hz Or 60hz Product Name: Vertical Propeller Pump
High Light:

horizontal axial flow propeller pump

,

axial flow centrifugal pump

Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump



Product Description

ZW-series chemical axial flow pump is single-stage cantilever pump. It adopts front-open door structure. This structure is very simple and convenient for maintaining, because pump body and pipeline are not needed to be disassembled. Pump body is supported from its middle; alignment of rotor is good; packing seal is adopted, when specially required, mechanical seal can be adopted for seal. Impeller and suction nozzle match very well. When transferring abrasive materials, the only thing need to do is to change impeller and suction nozzle. In this way, the service life of pump body is increased.


Application



In phosphate & compound fertilizer industry, alumina industry, chemical metallurgy industry, chemical industry, Alkali industry, salt making industry and paper making industry, ZL-series pump and ZW-series pump can be used in mass-flow, low-head evaporation circulating system to convey corrosive and abrasive liquid medium containing solid particles. Its design pressure is 16bar, and the temperature range of medium it can convey is ~+120℃.



Performance Data

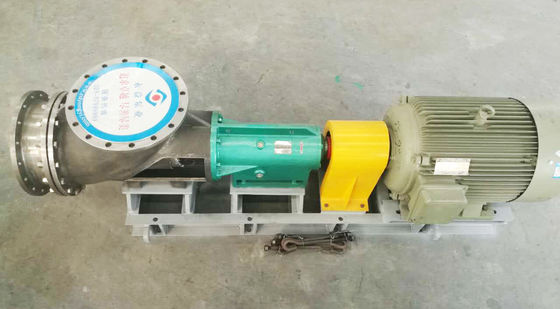

Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump

Model: ZW-series horizontal axial pump

Discharge Size:300mm~1300mm

Inlet Size:300mm~1300mm

Capacity:800~13000m³/h

Head:2~8m

Maximal Efficiency:73%

NPSH:0m~1m

Allowable Max Motor Power:315 KW













































Technical Parameter



ZW-series Horizontal Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW

1 ZW300 800-1000 2-8 600-1450 40-50
2 ZW350 800-1200 2-6 600-1450 40-55
3 ZW400 1000-2000 2-8 600-1000 45-60
4 ZW500 1500-3200 2-7 570-980 50-65
5 ZW600 2000-3500 2-7 300-750 50-65
6 ZW700 3000-6000 2-7 300-600 60-70
7 ZW760 4000-7600 2-6 300-600 60-70
8 ZW820 5000-9000 2-5 200-500 60-73
9 ZW1100 8000-13000 2-6.5 200-475 65-75


ZL-series Vertical Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW

1 ZL300 500-800 2-8 600-1450 40-50
2 ZL350 550-1000 2-8 600-1450 40-55
3 Zl400 600-1600 2-8 600-1000 45-60
4 ZL500 1200-2200 2-6 570-750 50-65
5 ZL600 2000-3000 2-6 300-750 50-65
6 ZL700 3000-6000 1-5 300-600 60-70
7 ZL800 5000-9000 1-5 200-500 60-73
8 ZL950 6000-11000 1-4 200-500 60-77
9 ZL1050 8000-12000 1-4 100-400 64-77
10 ZL1300 9000-15000 1-3 100-300 65-78



Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump



Material Choose



We offer CD4MCu, Cr30, 304, 304L, 316L, 904L(UB-6), 20# and some other materials for you to choose.



In the phosphorous fertilizer industry flashing station, the material of impeller and suction short pipe is Cr30, in phosphoric acid concentration station, the material of impeller and suction short pipe is 904L.



Structure Description



  • Cantilever rotor, front opening structure: convenient maintenance without disassembling pump body and pipeline
  • Supported from the middle of the pump body.
  • Packing seals and mechanical seals are available.
  • Replaceable impeller and suctio nshort pipe: when the medium is abrasive, just replace the impeller and the suction short pipe, thereby improving the service life.
  • Impeller can be reversed to change the flow direction of the medium.


FAQ

Simple Structure Horizontal Axial Flow Pump , Centrifugal Axial Propeller Pump
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
