Theory: | Vortex Pump | Color: | Customized |
---|---|---|---|
Max Flow: | 350m3/h | Max Head: | 60m |
Flange: | Customized | Feature: | Long Service Life |
Voltage: | 380V Or On Request | Structure: | Single-stage Pump |
Highlight: | vortex impeller submersible pumps,vortex type pump |

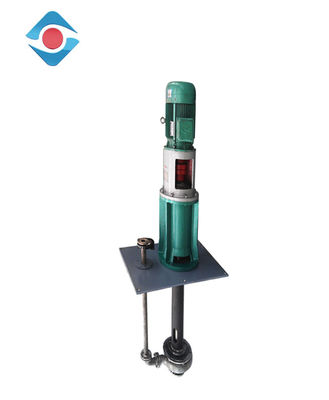

Single Impeller Vertical Submersible Vortex Pump Electric Two Phase Fluid Pump
Brief Introduction
XLY-series vertical vortex pumpsadoptvortex impeller. The impeller rotates in the pump body, and the inner pressure of the medium drives the medium in the pump body to rotate to form the eddy. The medium will be driven out from the pump outlet.Relative movement does not occur between the impeller and the impeller blade,, so that the service life of the impeller is greatly extended, and it’s three times as long as that of conventional centrifugal pump impeller.A gap (30-90mm) between pump body and the front cover can prevent impeller from being stuck because of solids and it can make flow passage components free from frequent scaling. In this way, the service life of the impeller is greatly extended and problems like short service life, frequent maintenance and high consumption are well solved.
Application
-- Corrosive liquid containing less than 45% solid particles (particle size is no more than 20mm)
-- Chemical Industry
-- Fertilizer Industry
-- Petroleum Industry
-- Paper Industry
-- Metallurgy Industry
-- Other Industries.
Performance Data
Model | XLY-series submerged vortex pump |
Discharge Size | 40mm-150mm |
Inlet Size | 65mm-200mm |
Capacity | 15~350m³/h |
Head | 18~60m |
Maximal Efficiency | 20%~51% |
NPSH | 1m~4m |
Allowable Max Motor Power | up to 110kw |
Allowed Max Particle Size | 20mm |
Pump Weigh | up to 1500kg |
RPM | 1450r/min |
Diameter | 180mm~400mm |
Technical Parameter
Model |
Flow (m³/h) |
Head (m) |
Speed(r/min) |
Efficiency(%) |
40XLY-250 |
15-30 |
18-25 |
1450 |
20-25 |
40XLY-315 |
15-30 |
25-40 |
1450 |
20-26 |
50XLY-250 |
30-50 |
18-25 |
1450 |
20-28 |
50XLY-315 |
30-50 |
25-40 |
1450 |
22-30 |
50XLY-400 |
30-50 |
40-60 |
1450 |
26-33 |
65XLY-250 |
50-80 |
18-25 |
1450 |
30-39 |
65XLY-315 |
50-80 |
25-40 |
1450 |
34-43 |
65XLY-400 |
50-80 |
40-60 |
1450 |
35-48 |
80XLY-250 |
80-120 |
18-25 |
1450 |
35-44 |
80XLY-315 |
80-120 |
25-40 |
1450 |
39-46 |
80XLY-400 |
80-120 |
40-60 |
1450 |
39-47 |
100XLY-315 |
120-160 |
20-40 |
1450 |
40-48 |
100XLY-400 |
120-160 |
40-60 |
1450 |
41-50 |
125XLY-315 |
160-240 |
20-40 |
1450 |
40-49 |
125XLY-400 |
160-240 |
40-60 |
1450 |
42-50 |
150XLY-315 |
240-350 |
20-40 |
1450 |
43-49 |
150XLY-400 |
240-350 |
40-60 |
1450 |
43-51 |
Advantages

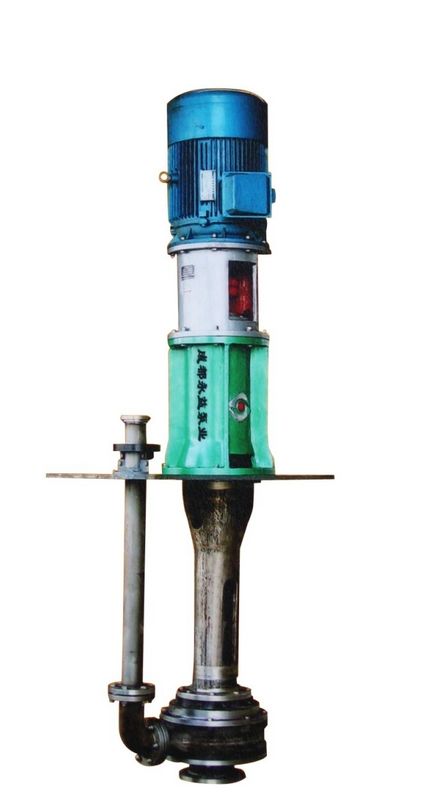

Product Dispaly
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
