| Fumigation: | Vortex | Flow: | 8~800m3 / H |
|---|---|---|---|
| Head: | 10~50m | Voltage: | 380V |
| Speed: | 1500rpm | Structure: | Single-stage Pump |
| Product Name: | Vortex Chemical Pump | ||
| High Light: | vortex impeller submersible pumps,vortex type pump |
||

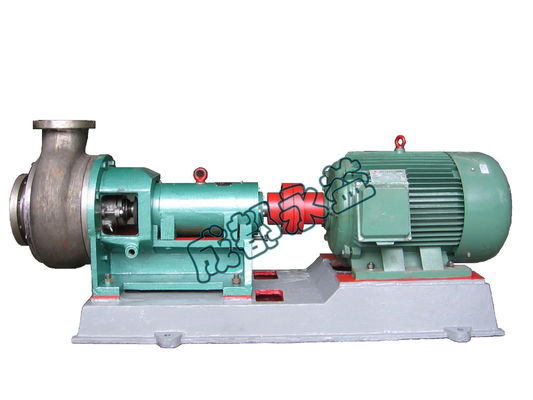

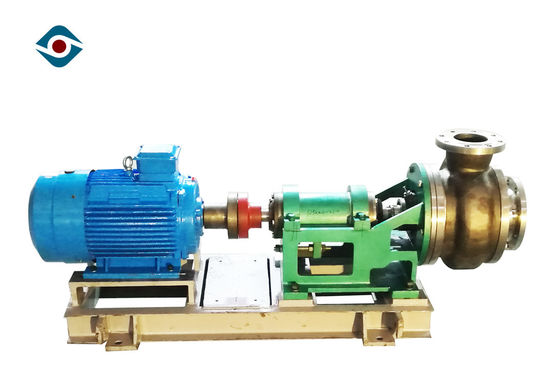

Single Suctiom Horizontal Vortex Chemical Pump No Leakage For Industry Using
Product Feature
1. Low Maintain Cost
Current general structure, bracket support, front and rear door opening. It is very safe and convenient to disassemble
2. No leakage
Vice impeller + packing dynamic seal, single-end mechanical seal, back-to-back double-end mechanical seal, series double- end mechanical seal and the cartridge seal.
3. Great Interchangeability
Component assembly, more than 20 models, only 5 bearing bodies and bearing body brackets
4. Long Service Life
Back blades can reduce the axial thrust, prevent the solid particles from entering the auxiliary impeller, reduce the abrasion of the auxiliary impeller
Technical Parameter
|
Model |
Clean Water Performance |
||||
|
Flow (m³/h) |
Head (m) |
Rotating Speed (r/min) |
Efficiency (%) |
NPSHr (m) |
|
|
40XWD-250 |
8-20 |
15-27 |
1450 |
29 |
2.4 |
|
40XWD-315 |
10-30 |
25-40 |
1450 |
32 |
2.6 |
|
50XWD-250 |
30-50 |
15-28 |
1450 |
35 |
2.5 |
|
50XWD-315 |
30-50 |
25-40 |
1450 |
35 |
2.6 |
|
50XWD-400 |
30-50 |
38-60 |
1450 |
32 |
2.8 |
|
65XWD-250 |
50-80 |
15-25 |
1450 |
38 |
2.2 |
|
65XWD-315 |
50-80 |
25-40 |
1450 |
40 |
2.4 |
|
65XWD-400 |
50-80 |
38-60 |
1450 |
37 |
2.6 |
|
80XWD-250 |
80-120 |
15-25 |
1450 |
45 |
2.6 |
|
80XWD-315 |
80-120 |
22-38 |
1450 |
46 |
2.7 |
|
80XWD-400 |
80-120 |
35-55 |
1450 |
47 |
2.9 |
|
100XWD-250 |
120-180 |
10-20 |
1450 |
51 |
2.7 |
|
100XWD-315 |
120-180 |
18-35 |
1450 |
52 |
2.8 |
|
100XWD-400 |
120-180 |
35-50 |
1450 |
54 |
2.8 |
|
125XWD-250 |
180-250 |
10-20 |
1450 |
55 |
2.9 |
|
125XWD-315 |
180-250 |
18-35 |
1450 |
57 |
3.1 |
|
125XWD-400 |
180-250 |
35-50 |
1450 |
60 |
3.2 |
|
150XWD-315 |
250-350 |
20-35 |
1450 |
62 |
3.2 |
|
150XWD-400 |
250-350 |
32-50 |
1450 |
65 |
3.2 |
|
300XWD-315 |
350-650 |
20-30 |
1450 |
65 |
3.3 |
|
200XWD-400 |
650-650 |
28-45 |
1450 |
67 |
3.3 |
|
250XWD-400 |
450-750 |
28-45 |
1450 |
69 |
3.3 |
Structure
|
1 |
front cover |
8 |
rinsing nozzle |
15 |
rear bearing |
22 |
bearing body bracket |
29 |
O-ring |
|
2 |
wear-resist plate |
9 |
packing gland |
16 |
rear bearing cover |
23 |
front bearing |
30 |
O-ring |
|
3 |
impeller |
10 |
front bearing cap |
17 |
rear oil seal gland |
24 |
framework oil seal |
31 |
key |
|
4 |
pump body |
11 |
bearing body bracket |
18 |
key |
25 |
front oil seal gland |
32 |
impeller nut |
|
5 |
vice impeller chamber |
12 |
bearing body |
19 |
framework oil seal |
26 |
filler |
33 |
lock screw |
|
6 |
vice impeller |
13 |
bearing |
20 |
adjustment nut |
27 |
water seal ring |
|
|
|
7 |
packing room |
14 |
oil baffle pan |
21 |
adjustment screw |
28 |
sleeve |
|
Installation Dimension
Mechanical Seal Feature
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
